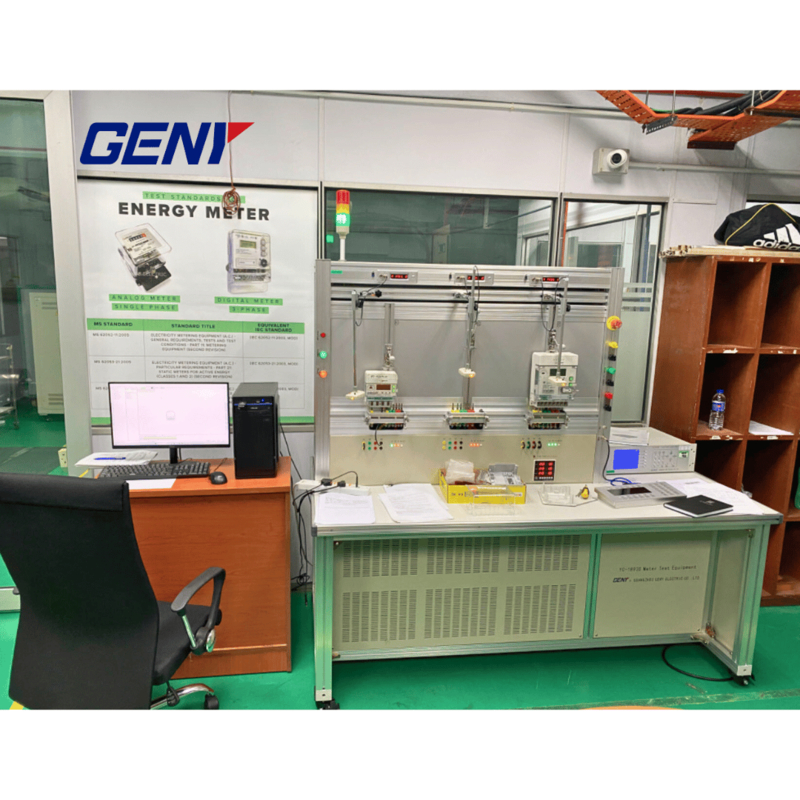

Advanced Stationary Meter Test Bench

Advanced Stationary Meter Test Bench

Brand Name: GENY
Model Number: YC1891D
MOQ: 1pcs
Price: negotiation
Payment Terms: L/C,T/T,D/P
Supply Ability: 30 PCS per month
Detail Information
Place of Origin:
CHINA
Certification:
ISO, CE
Accuracy:
0.05/0.02/0.01
Standard Meter:
SZ03A-K6 / SZ03A-K8
Test Voltage Output:
24V – 288V Or Customized
Test Current Output:
1mA – 100A Or Customized,Max.200A
Frequency Range:
45Hz~65Hz
Packaging Details:
Plywood case
Supply Ability:
30 PCS per month
Product Description

Advanced Stationary Meter Test Bench


Advanced Energy Meter Test System Supports Comprehensive Testing in Line with IEC and MS 62052/MS 62053 etc. Standards


Main Features of the YC1893D Energy Meter Test Equipment :


The YC1893D meter test system is designed to conduct a wide array of tests, ensuring that electricity energy meters meet the necessary standards for accuracy and performance. Key testing functions include:

1. Basic Error Testing: This function evaluates the fundamental accuracy of the electricity meters under various load conditions, providing a baseline for their performance.

2. Creep, Startup, and Dail Tests: These tests assess the meter's response to minimal load conditions, ensuring that they operate accurately even at low energy consumption levels.

3. Influence Quantities Testing: The YC1893D is capable of testing the impact of various factors such as voltage, frequency, and harmonics on the meter's performance, ensuring that the meters remain accurate under different operating conditions.

4. Harmonic Testing: The test system supports comprehensive harmonic output, including general harmonics, subharmonics, odd and even orders harmonic, as well as DC harmonic component testing. This ensures that the meters can accurately measure power quality in environments with complex waveforms.



Specifications:




Technical spec.

YC1893D-6

YC1893D-12

YC1893D-24

YC1893D-48

Number of meter positions

6

12

24

48

Accuracy

0.05 / 0.02

Power Source

YCS-103-250

YCS-103-600

YCS-103-1200

YCS-103-2500

Standard Meter

SZ03A-K6 / SZ03A-K8

Scanning Head

YCG-S Series

Voltage


Test voltage output(Phase-Neutral)

3x(24V~288V)(or customized)

Power of the voltage output

Max. 3x100VA

Max. 3x250VA

Max. 3x500VA

Max. 3x1000VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005% /h (integration time 150s)

Load regulation from 0~max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonic

2nd~21st  free programmable

Current


Test current output

3x(1mA~100A)

Power of the current output

Max. 3x150VA

Max. 3x350VA

Max. 3x750VA

Max. 3x1500VA

Resolution

Better than 0.01% of full scale value of range

Setting accuracy

Better than 0.05% at the final range value

Stability

Better than 0.005% /h (integration time 150s)

Load regulation from 0~max. load

Better than 0.01%

Distortion factor

Better than 0.3% for linear resistance load

Harmonic

2nd~21st  free programmable

Phase angle


Range

0~360⁰

Resolution

0.01⁰

Setting accuracy

0.1⁰

Frequency


Range

45Hz~65Hz

Resolution

0.01Hz

Error display


Type of error display

Red LED

Resolution of error displays

8 digitals

Other


Voltage supply

3x220/380V±10%(or customized)

50/60Hz ±2Hz

Ambient temperature

-10°C~+40°C

Relative humidity

35%~85%
