High-Precision 24–300 V Single-Phase Multi-Position kWh Meter Test Bench

Name: High-Precision 24–300 V Single-Phase Multi-Position kWh Meter Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1891D
MOQ:	1pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Geny product brochure 2020.pdf

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Theory:

Electronic Meter

Computer Control:

Yes

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Product Description

High-Precision 24–300 V Single-Phase Multi-Position kWh Meter Test Bench

The YC1891D test bench is designed for automatic, semi-automatic or manual calibration of mechanical, electro-mechanical and electronic single-phase meters. It integrates a programmable single-phase power source, high-accuracy reference meter, meter suspension rack, multi-channel server and precision clock source. Widely used by State Grid / Southern Grid metrology centers, power-supply utilities, energy-management agencies, industrial plants and meter manufacturers, the YC1891D offers fast, traceable and reliable meter verification in compliance with IEC 62052-11, IEC 62053-21 and other relevant standards.

Product Parameters

	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ01A-K3
MSVT	HJ200GL-6	HJ200GL-12	HJ200GL-24	HJ200GL-48
QCD	D5 series
Scanning Head	YCG-2 series
Voltage
Test voltage output	24V – 300V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	1mA – 100A or customized,Max.200A			1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Voltage Supply	220V±10% or customized 50/60Hz±2Hz			3x220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Description

• Auto / semi-auto / manual modes for mechanical, electro-mechanical & electronic 1P2W meters
• Active, reactive & cross-reactive power testing per IEC/MID
• MSVT for meters with closed I-P links, optional 2-element switch
• Parallel testing of mixed meter constants; auto rotor-mark alignment for discs
• Built-in starting & creeping tests; overload, short-V, open-I protection
• Sync swing heads, lightweight corrosion-proof aluminum frame

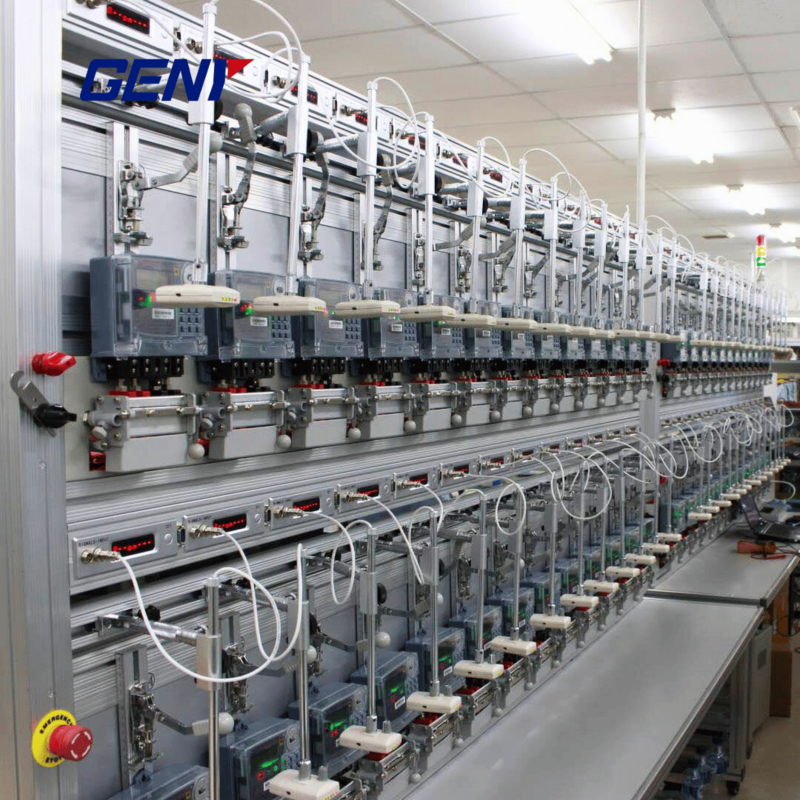

High-Precision 24–300 V Single-Phase Multi-Position kWh Meter Test Bench 0

High-Precision 24–300 V Single-Phase Multi-Position kWh Meter Test Bench 1
