SZ-03A-K6 Three Phase Standard Meter

Name: SZ-03A-K6 Three Phase Standard Meter
Brand: Guangzhou GENY Electric Co., Ltd
SKU: SZ-03A-K6
Availability: InStock

Brand Name:	GENY
Model Number:	SZ-03A-K6
MOQ:	1pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Display:

Digital

Test Voltage Range:

30V – 480V

Test Current Range:

10mA – 120A

Frequency Range:

45Hz – 65Hz

Packaging Details:

Aluminum case with carton

Supply Ability:

30 PCS per month

Product Description

SZ-03A-K6 Three Phase Standard Meter

Guangzhou GENY Electric Co. Ltd. has over 20 years of experience in the Electric Energy Meter measurement field. We are a technological leader with an excellent R&D team that continuously develops innovative solutions to meet customer needs. Our company is ISO9001-2000 certified and fully integrates this standard into R&D, production, marketing, and service to ensure quality. We offer a competitive pricing strategy and comprehensive support, including maintenance, training, and software updates, through our well-trained service team.

Specifications:

	SZ03A-K6
Test Voltage
Range	30V – 480V
Error	±0.05% (30V – 480V) ±0.1% (5V – 50V)
Display range	5.000000V – 480.0000V
Test Current
Range	10mA – 120A
Error	±0.05% (0.2A – 120A) ±0.1% (10mA – 0.2A)
Display range	1.000000mA-120.0000A
Power measure error
Active power	±0.05% (0.2A – 120A)
Reactive power	±0.1% (0.2A – 120A)
Apparent power	±0.1% (0.2A – 120A)
Energy measure error
Active energy	--
Reactive energy	--
Apparent energy	--
Phase angle
Range	0º – 360º
Error	±0.05º
Display range	0.000001º -- 359.9999º
Frequency
Range	45Hz – 65Hz
Display range	45.0000 – 65.0000
Pulse output
High frequency output(CH)	1×109 (0.2A – 1A) 1×108 (1A – 10A) 1×107 (10A – 120A)
Low frequency output(CL)	2×10-5×CH
Pulse ratio	1:1
Output level	5V
Pulse input
Input level	--
Input frequency	--
Other
Voltage Supply	220V ± 10%, 50/60Hz ± 2Hz
Ambient temperature	10°C -- 30°C
Influence of external fields	≤ 0.05 % / mT
Relative humidity	45% -- 75%
Dimensions (W×H×D) (mm)	432×131×308
Weight (kg)	15

Description:

This is a Wide Current Range Three-Phase Reference Standard Meter, designed for Stationary Three-Phase Energy Meter Test Systems.

High Accuracy: Up to 0.05%
Testing Types:3-phase 4-wire, 3-phase 3-wire
Testing Modes: Active power, reactive power, cross-connection reactive power
Measurement Capabilities: Voltage, current, phase, frequency, power for each phase
Additional Features: Measurement of phase-to-phase angle, sum of active power, sum of reactive power
Data Management:Test data can be managed via computer through an RS232 interface

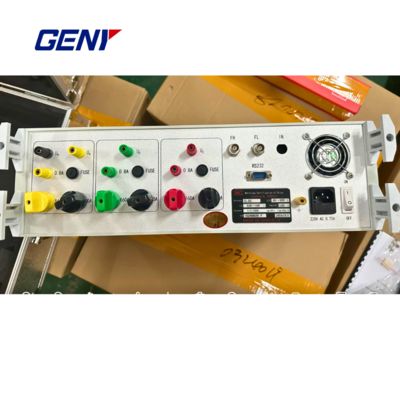

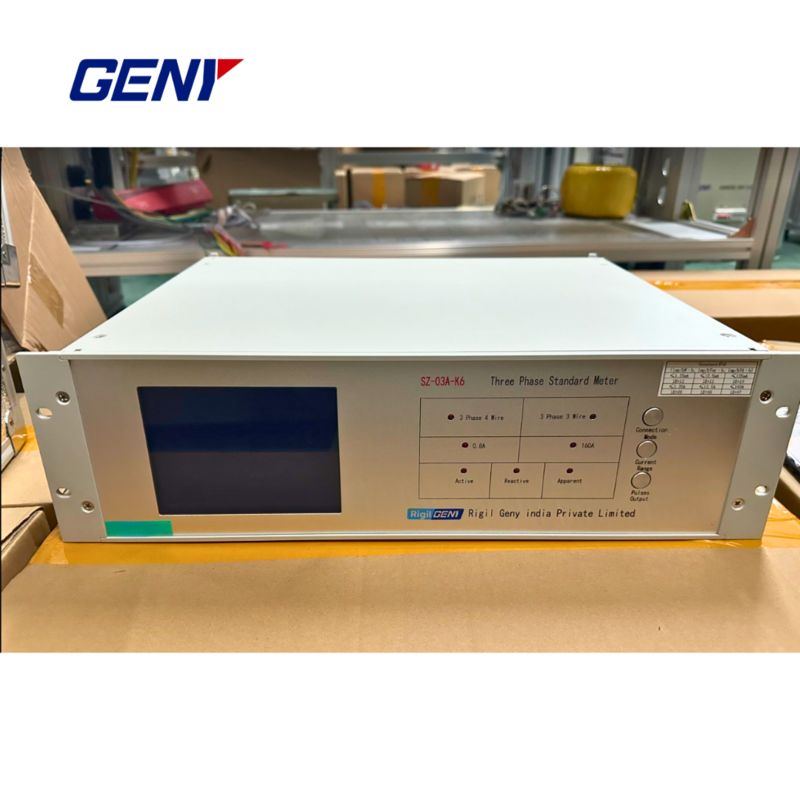

SZ-03A-K6 Three Phase Standard Meter 0

SZ-03A-K6 Three Phase Standard Meter 1

SZ-03A-K6 Three Phase Standard Meter 2

For more information, please visit our website:(http://www.genymetertestequipment.com/).
