YC1893D-5 Cost-Effective Three-Phase Stationary Test Bench for Utilities and Lab

Name: YC1893D-5 Cost-Effective Three-Phase Stationary Test Bench for Utilities and Lab
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D-5
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D-5
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Accuracy:

0.05 / 0.02

Test Voltage Output(Phase-Neutral):

3* (24V~288V)(or Customized)

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Phase Angle Range:

0 -- 360°

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Product Description

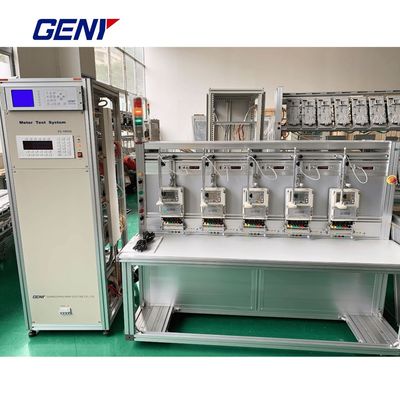

YC1893D-5 Cost-Effective Three-Phase Stationary Test Bench for Utilities and Lab

YC1893D Three-Phase Meter Test System – Reliable, Accurate & Easy to Use

Guangzhou GENY Electric Co., Ltd. presents the YC1893D Series, a durable and accurate meter test system ideal for electricity meter manufacturers, utilities, and labs.

This all-in-one solution includes a programmable power source, reference standard meter, automatic meter rack, and PC software. It supports IEC and EN standards and performs full tests: no-load, starting current, accuracy, clock, demand, and harmonic influence.

Stable performance in harsh environments
Supports smart meter testing (RS232)
Easy operation, low maintenance
Optional quick connection tools and automatic wiring

Trusted by global clients in over 40 countries. Built for performance, designed for real-world testing.

Technical Data

1. Power Supply

Voltage	3 × 220V±10%
Frequency	50 / 60Hz ± 2Hz
Power capacity	>6k VA
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

2. Power Source

Voltage output
Test voltage output (Phase-Neutral)	3 × (24V – 300V)
Power of the voltage output	3 × 1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current output
Test current output	3 × (0.3mA – 20A)
Power of the current output	3 × 1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

YC1893D-5 Cost-Effective Three-Phase Stationary Test Bench for Utilities and Lab 0
