Three Phase Stationary Meter Bench within Accuracy Class 0.02 for Calibration 24 MTUs

Name: Three Phase Stationary Meter Bench within Accuracy Class 0.02 for Calibration 24 MTUs
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1891D
MOQ:	1
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1893D-24

Standard Meter:

SZ03A-K6 / SZ03A-K8 / Radian RD-33

Test Voltage Output(Phase-Neutral):

3* (24V~288V)(or Customized)

Power Of The Current Output:

Max. 3x750VA

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Product Description

Three Phase Stationary Meter Bench within Accuracy Class 0.02 for Calibration 24 MTUs

Specifications

Technical spec.
Number of meter positions	24
Accuracy	0.05 / 0.02
Power Source	YCS-103-1200
Standard Meter	SZ03A-K6 / SZ03A-K8 / Radian RD-33
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3* (24V~288V)(or customized)
Power of the voltage output	Max. 3x500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3* (1mA - 100A)
Power of the current output	Max. 3x750VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

Description

1) The meter test system is capable of measuring mechanical meters, electronic mechanical meters, and electronic meters through automatic, semi - automatic, or manual operation.

2) Meters under testing: 3P4W, 3P3W, 1P2W.

3) Testing modes: active power, reactive power, cross - connected reactive power.

4) It can simultaneously measure meters with the same specifications but different meter constants.

5) It features automatic positioning of the rotor mark on the disc of mechanical meters for enhanced efficiency.

6) It supports starting tests and creeping tests.

7) Neutral current test (optional).

8) The ICT can be installed in each meter position to test three - phase meters with closed links between the current and voltage measuring circuits (I - P links) (optional).

9) It is equipped with protection functions for overload, short - circuited voltage circuit, and open - circuited current circuit.

10) The synchronized movement of the scanning heads simplifies control.

11) Made of aluminum alloy, it is lightweight, strong, and corrosion - resistant.

12) The testing software is compatible with the friendly Windows 2000 / XP / 7 / 8 / 10 operating system and includes functional modules for various modern energy meters, enabling error tests, harmonic tests, demand tests, influence tests, and more.

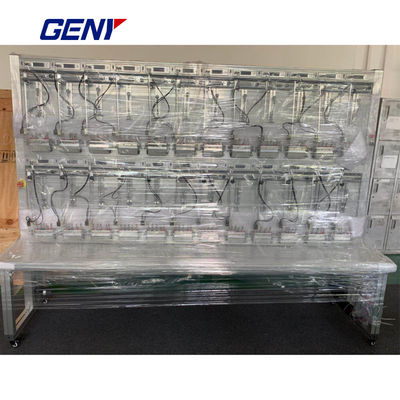

Three Phase Stationary Meter Bench within Accuracy Class 0.02 for Calibration 24 MTUs 0

Three Phase Stationary Meter Bench within Accuracy Class 0.02 for Calibration 24 MTUs 1
