YC-92B Single Phase Calibrator Portable Meter Test Equipment

Name: YC-92B Single Phase Calibrator Portable Meter Test Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T-5C
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T-5C
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Accuracy Class:

0.1%/0.2%

Output Voltage Capacity:

50VA

Output Current Capacity:

50VA

Main Unit Weight:

18kg

Product Description

YC-92B Single Phase Calibrator Portable Meter Test Equipment

The YC-92B Single-phase Energy Meter Calibration Device is widely used in various departments and industries such as power departments, metrology and quality inspection departments, and industrial and mining enterprises for on-site verification and calibration of single-phase multifunction energy meters, single-phase electronic energy meters, single-phase mechanical energy meters, electromechanical energy meters, and single-phase multifunction energy meters.

Features

- Customizable voltage and current ranges and settable output frequency as per customer requirements.
- Capable of storing 1,000 sets of test results and displaying them on an LCD screen.
- Equipped with an RS232 interface to facilitate data transmission with a PC.
- The calibration process can be operated via the keyboard on the main unit or through software.

Technical Specifications:

- Accuracy Class: 0.1%/0.2%
- Power Supply: 220V ±10%, 50Hz, or customized according to customer requirements
- Output Voltage Capacity: 50VA
- Output Current Capacity: 50VA
- Output Voltage: 40V...240V
- Output Current: 100A ( )
- Output Frequency: 45Hz...70Hz
- Voltage and Current Load Regulation: ≤0.5%
- Voltage and Current Output Waveform Distortion: 0.5%
- Voltage and Current Frequency Stability: 0.05%/120s (peak-to-peak)
- Ambient Temperature: 0°C...40°C
- Relative Humidity: 35%...85%
- Main Unit Dimensions: 440mm×440mm×180mm
- Main Unit Weight: 18kg

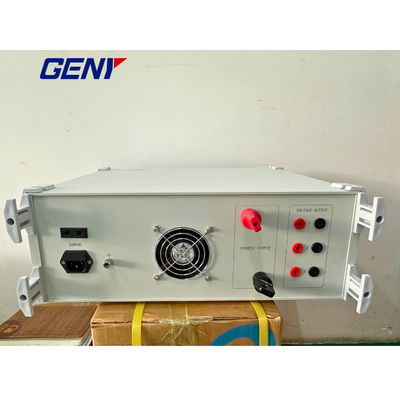

YC-92B Single Phase Calibrator Portable Meter Test Equipment 0

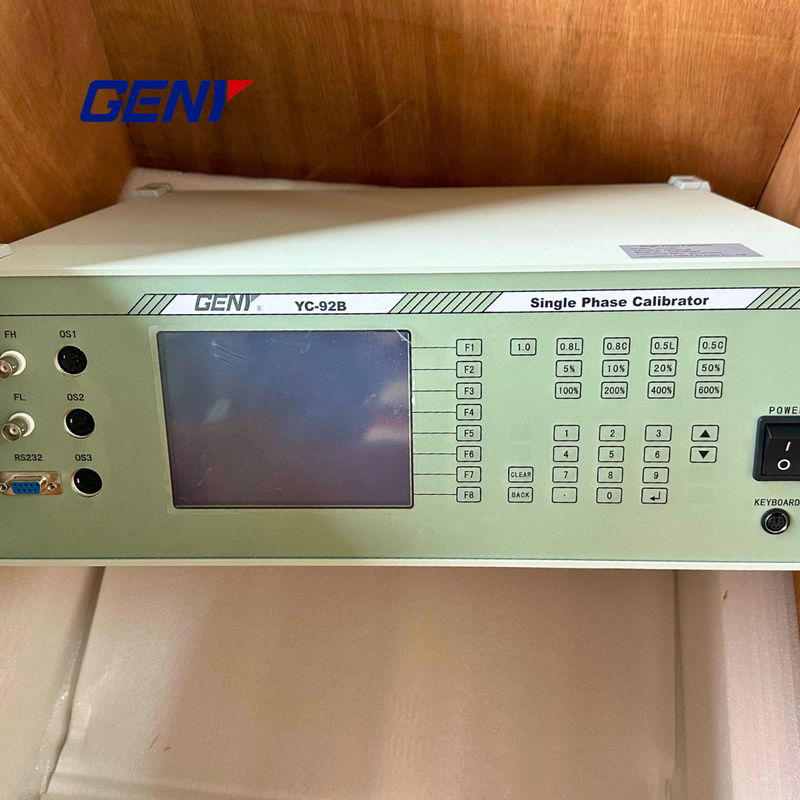

YC-92B Single Phase Calibrator Portable Meter Test Equipment 1

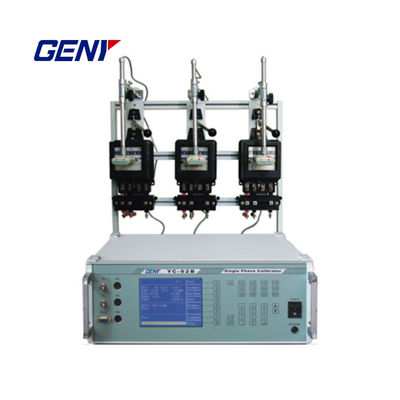

YC-92B Single Phase Calibrator Portable Meter Test Equipment 2

If you would like to learn more, please visit our official website:http://www.genymetertestequipment.com/
