| Brand Name: | GENY |
| Model Number: | YCPQA-9901 |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T,L/C,D/P,T/T |
| Supply Ability: | 5 sets / 1 months |

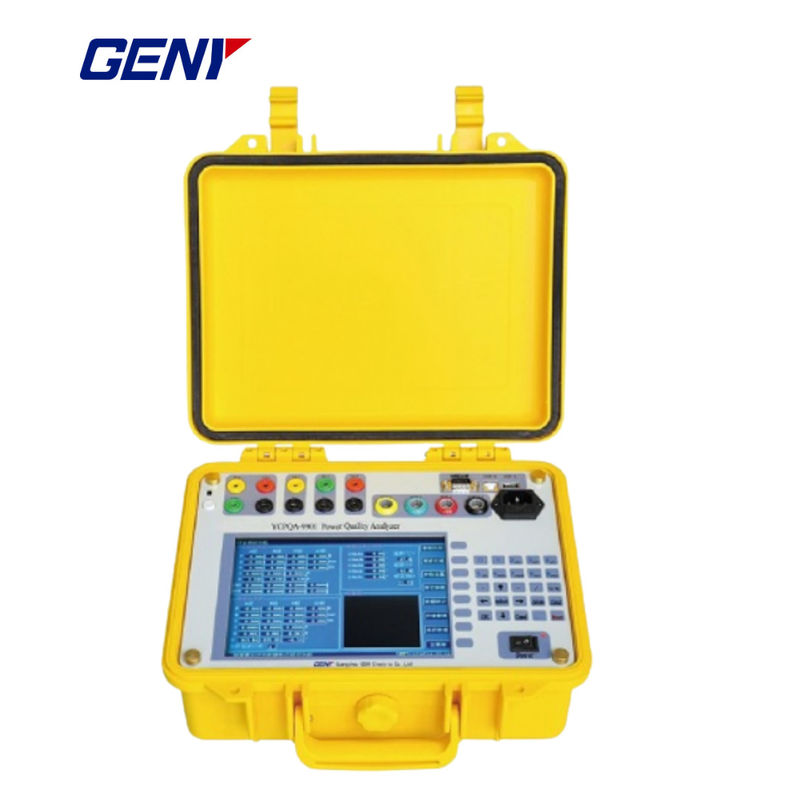

Power quality Analyzer can conduct online long-term or short-term survey about electric net voltage, current and power. It can also measure circuit loss, estimate electric system power quality, and examine functions of power correction instrument. Meanwhile, this instrument provides reliable detection means to help make an electric net harmonic pollution reducing plan by analyzing varied harmonic sources and choosing the proper harmonic filter. The floating-point Digital Signal Processing (DSP) enables entire data collected by power quality analytical instrument to be processed at the same time, that is, no time error. 32-bit 260M high speed ARM9 Central Processing Unit enables the instrument to have the basic functions of PC can conduct analyses independently without PC(laptop)
|
Harmonic measurement errors |
accord with the international A-level requirements |
|
Voltage measurement range |
10 - 480V |
|
Current measurement range |
0.01 - 12A, clamp current transformer with varied range |
|
Voltage, current, power and active power error |
≤0.1% |
|
Harmonic analysis range |
1 – 63 harmonic |
|
Electric net Grid frequency error |
≤0.01Hz |
|
Voltage deviation error |
≤0.2% |
|
Flicker error |
≤5% |
|
Unbalanced error |
≤0.2% |
|
Working power supply |
45V～450V |
|
Power consumption |
≤12 W |
|
Volume |
300×220×145mm |
|
Weight |
≤4kg |
1.8.4 inch high luminance LED backlight TFT Color LCD, easily look at under sun shine.
2.Graphical interface which resembles Windows interface and smart assistance system can offer customers operation method any time.
3.Parameters can be measured: current, voltage, active power, reactive power, visible apprent power, and power factor.
4.Able to measure: 2 – 63 harmonic voltage and current aberration distortion rate and spectrum, and the result is indicated graphic display, directly and clearly.
5.Estimate each harmonic frequency direction by measuring 2 – 63 harmonic voltage, current validity, voltage and current phase angle, active value and reactive value.
6.Display three phases voltage and current signal wave at the same time.
7.Able to measure: three phases voltage and current sequence component, unbalance, flicker, voltage fluctuation and frequency.
8.According to international limit statistic qualification, able to calculate: voltage deviation, frequency deviation, voltage fluctuation, pst, plt, voltage unbalance degree, current unbalance degree, voltage harmonic, and minimum, maximum, average, 95% probability of current harmonic.
9.Analyze events by using wavelet data processing analysis to measure the emerging moment and duration of voltage dips and swells, pass voltage overvoltage,undervoltage,wave during sudden change moment, and four periods data of six circuits (before one period, after three periods, each period has 256 point).
10.Power measurement function: measure circuit loss.
11.Built-in large capacity memory. Other option is use super large capacity U disk to make huge amount storage.
12.High applicable and safe AC85V～450V wide input voltage power supply. Or, built-in high energy lithium battery can last eight hours.
