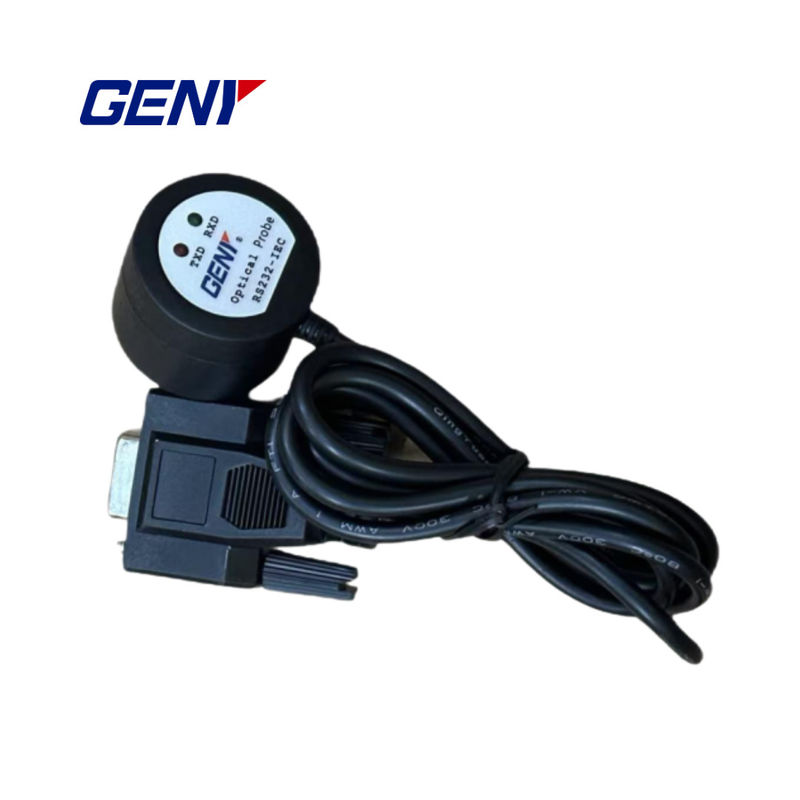

RS232 Connector Optical Probe for Communication Interface 32mm Diameter

Name

RS232 Connector Optical Probe for Communication Interface 32mm Diameter

Brand Name: GENY
Model Number: YC-232/USB-IEC-TL
MOQ: 1
Price: negotiate rates
Payment Terms: T/T,L/C,D/P,T/T
Supply Ability: 10 pcs/ 1 months
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Type:
Meter Testing Accessory
Communication Interface:
RS232
Environment:
Application Temperature: -40℃~70℃ In Normal
Magnet Holding Power:
Impact PBT+GF Housing
Diameter & Height:
Optical Port 32mm Diameter / H23mm
Packaging Details:
Plywood cases
Supply Ability:
10 pcs/ 1 months
Highlight:

RS232 connector Optical Probe

,

Connector Optical Probe for Communication Interface

Product Description

RS232 connector Optical Probe


Technical Specifications



Items

Features

Communication Interface

RS232

Supported Standard

IEC 62056-21 / ANSI / ANSI-Type2

Maximum B.R.

115200

Connector

RS232(DB9)

Sensor Light Wave Length

RS232 Connector Optical Probe for Communication Interface 32mm Diameter 0900 nm.

Cable length

1.5M in normal and 1M/2M/3M for option

Fastening

Strong magnetic adhesion (in accordance with IEC

62056-21)

Magnet Holding Power

N40 / N54 (Optional)

Mechanical

Impact PBT+GF housing

Environment

Application temperature: -40℃~70℃ in normal

Diameter & Height

Optical port 32mm Diameter / H23mm

Weight

80gr

Enclosure Material

PBT+GF

Protection Class

IP 54





RS232 Connector Optical Probe for Communication Interface 32mm Diameter 1



RS232 Connector Optical Probe for Communication Interface 32mm Diameter 2
