YC1893D-12 Three Phase Meter Test Bench 45Hz To 65Hz

Name: YC1893D-12 Three Phase Meter Test Bench 45Hz To 65Hz
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D-12
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D-12
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1893D-12

Accuracy:

0.05 / 0.02

Standard Meter:

SZ03A-K6 / SZ03A-K8 / Radian RD-33

Test Voltage Output(Phase-Neutral):

3* (24V~288V)(or Customized)

Test Current Output:

3* (1mA - 100A)

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Highlight:

65Hz Meter Test Bench

Three Phase Meter Test Bench

High Precision Meter Test Bench

Product Description

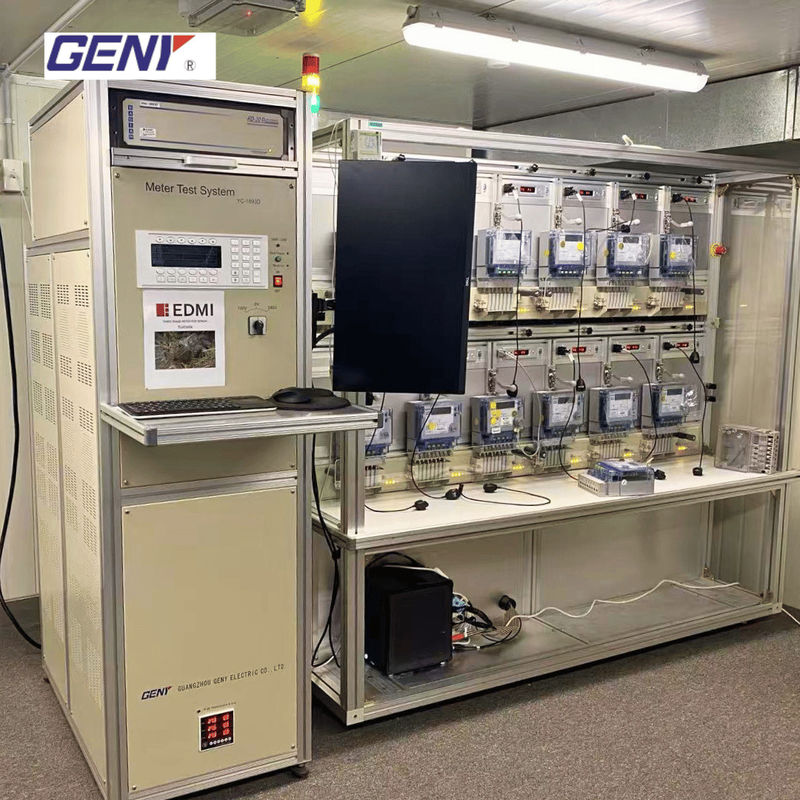

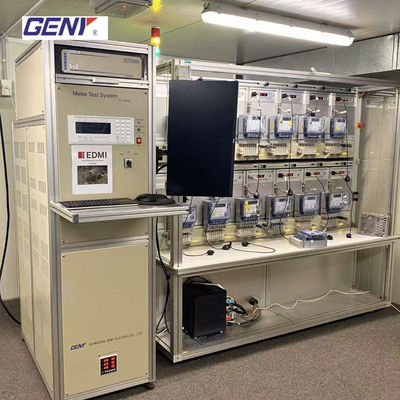

YC1893D-12 Three Phase Meter Test Bench for Performance

The YC-1893D series three-phase electricity meter calibration device is a highly versatile product with extensive applications across various sectors. It is widely used in power departments, electricity meter manufacturing plants, metrology and quality inspection departments, and industrial and mining enterprises. This device is specifically designed for the calibration and testing of a wide range of three-phase electricity meters, including three-wire and four-wire multifunctional meters, electronic meters, mechanical meters, electromechanical integrated meters, and three-phase multi-user meters.

Specifications

Main Technical Parameters	Description
Power Supply	3P4W 3×380V±10%, 50Hz±2Hz
Ambient Temperature	-10℃ to +40℃
Ambient Humidity	35% to 95%
Output Voltage Range (Phase-to-Neutral)	3×40V to 450V
Output Voltage Power	3×1000VA (Maximum)
Voltage Resolution	0.01%
Voltage Stability	0.02%/120s
Load Change Rate	0.01%
Voltage Distortion	≤0.3%
Output Current Range	3×1mA to 120A (Maximum up to 230A upon customer request)
Output Current Power	3×2000VA (Maximum)
Current Resolution	0.01%
Current Stability	0.02%/120s
Load Change Rate	0.01%
Current Distortion	≤0.3% (Full linear load range)
Continuous Current	100A
Maximum Continuous 20-Minute Current	120A
Phase Adjustment Range	0° to 360°
Phase Resolution	0.01°
Frequency Adjustment Range	45Hz to 65Hz
Frequency Resolution	0.01Hz
Power Output Stability	0.02%/120s

YC1893D-12 Three Phase Meter Test Bench 45Hz To 65Hz 0

YC1893D-12 Three Phase Meter Test Bench 45Hz To 65Hz 1

YC1893D-12 Three Phase Meter Test Bench 45Hz To 65Hz 2

YC1893D-12 Three Phase Meter Test Bench 45Hz To 65Hz 3
