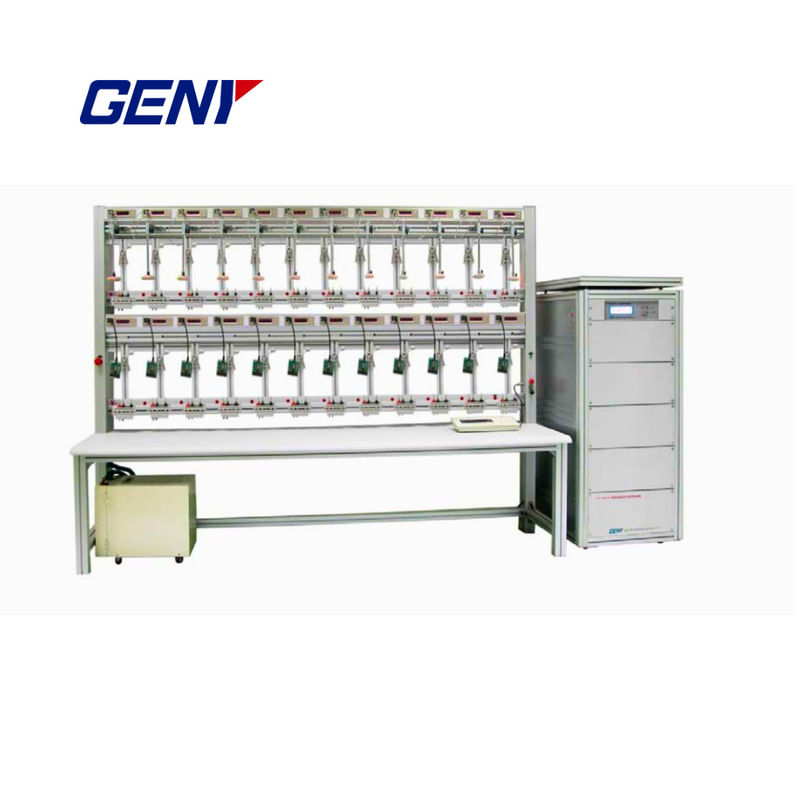

YC1891D Stationary Multi-Positions Single Phase Energy Meter Test Equipment

Name: YC1891D Stationary Multi-Positions Single Phase Energy Meter Test Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1891D
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Single-phase meter test sys...em.pdf

Model NO.:

YC1891D

Test Current Output:

1mA-120A/200A

Harmonics:

2nd - 41st Free Programmable

Frequency Range:

45Hz-65Hz

Phase Angle:

0°-360°

Type Of Error Display:

Red LED

Supply Ability:

100/Year

Highlight:

verification electric meter test board

electric meter test board yc1891d

yc1891d single phase energy meter testing

Product Description

YC1891D Stationary Multi-Positions Single Phase Energy Meter Test Equipment

General Introduction

YC-1891D is high-performance calibration equipment for single phase electricity meters, which combines characteristics of different users in different fields including power supply, metrology and manufacturer of electricity meters. It is designed and manufactured in compliance with IEC 60736 to meet various requirements in calibration of electricity meters today and the future.

Convenient Verifying Features:

 Clear high-brightness LED error display

 Wide range current output setting

 Both manual/automatic positioning of the color mark on the plate of the verified meter.

 Centralized overturn of the multi-position scanning head

 Fast and convenient wiring method

 Suit for mechanical meter or electronic meter

 Reliable and stable power source

Flexible system characteristics:

 RS-232 and RS-485 standard interfaces

 Automatic verification by PC

 Manual verification by keyboard

 Simultaneous verification of different constant meters

 Flexible setting of the verification projects

 Software options for multi-constant standard electric energy meters

 Bar code input and network access functions

Product Parameters:

Application Conditions and Requirement
Environment			Power Requirement	Safety
Operation	Humidity	Altitude	Voltage Supply	IP Class	Conformity
Temperature
-10°C--+40°C	35%--85%	< 2500m	3x220/380v±10%(or customized)	IP 30	CE conformity
			50/60Hz±2Hz

Type	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YC8-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ-01A-K3
MSTV	HJ200G-6	HJ200G-12	HJ200G-24	HJ200G- 48
Scanning Head	YCG-2-series
Voltage
Test voltage output (Phase-Neutral)	24V-300V(or customized)
Power of the voltage output	Max.100VA	Max.250VA	Max.500VA	Max.1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable
Current
Test current output	1mA-120A/200A
Power of the current output	Max.250VA Max.500VA Max.1000VA Max.2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable
Phase angle
Phase angle	0°-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

YC1891D Stationary Multi-Positions Single Phase Energy Meter Test Equipment 0

YC1891D Stationary Multi-Positions Single Phase Energy Meter Test Equipment 1

YC1891D Stationary Multi-Positions Single Phase Energy Meter Test Equipment 2
