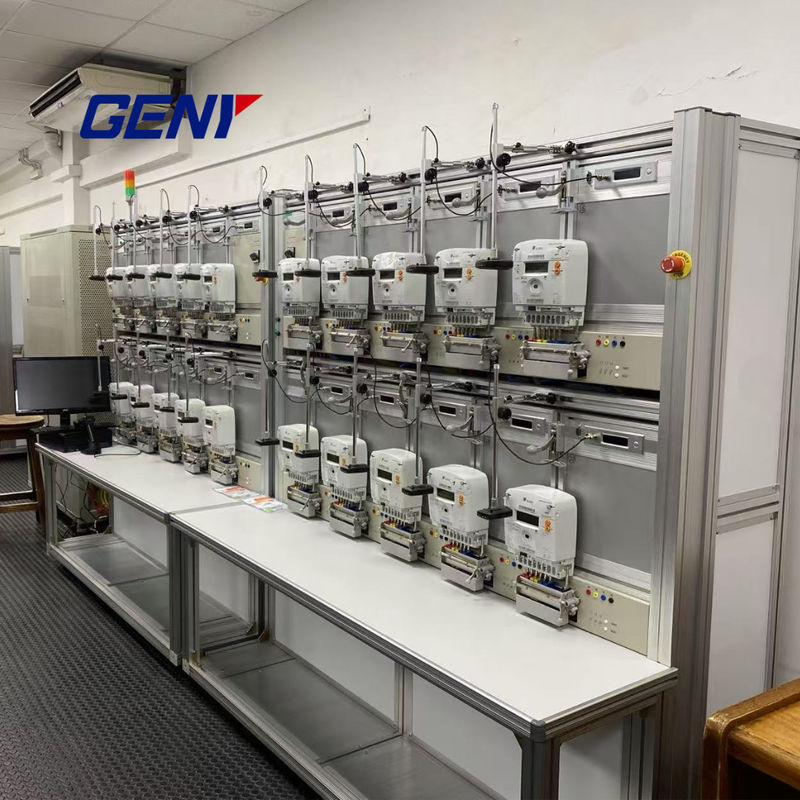

High Precision Three Phase Electric Energy Meter Testing System

Name: High Precision Three Phase Electric Energy Meter Testing System
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHNA

Certification:

ISO, CE

Model NO.:

YC1893D

Accuracy:

0.05/0.02

Test Voltage Output(Phase-Neutral):

3* (24V~288V)(or Customized)

Test Current Output:

3* (1mA - 100A)

Frequency Range:

45Hz~65Hz

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Supply Ability:

100/Year

Highlight:

Advanced Energy Meter Testing System

Versatile Energy Meter Testing System

Product Description

High Precision Three Phase Electric Energy Meter Testing System

Description:

1.Meter Test System: Measures mechanical, electronic mechanical, and electronic meters (3P4W, 3P3W, 1P2W) in automatic, semi-automatic, or manual modes.

2.Testing Modes: Active power, reactive power, cross-connected reactive power.

3.Functions: Simultaneous testing of meters with different constants; starting and creeping tests; optional neutral current test.

4.Features: Automatic rotor mark positioning for mechanical meters; overload, short-circuit, and open-circuit protection.

5.Design: Synchronized scanning heads for simplified control; aluminum alloy material (lightweight, strong, corrosion-resistant).

6.Software: Windows-compatible (2000/XP/7/8/10); modules for error, harmonic, demand, and influence tests.

Product Parameters:

Technical spec.
Number of meter positions	24
Accuracy	0.05 / 0.02
Power Source	YCS-103-1200
Standard Meter	SZ03A-K6 / SZ03A-K8 / Radian RD-33
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3* (24V~288V)(or customized)
Power of the voltage output	Max. 3x500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3* (1mA - 100A)
Power of the current output	Max. 3x750VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

High Precision Three Phase Electric Energy Meter Testing System 0

High Precision Three Phase Electric Energy Meter Testing System 1

High Precision Three Phase Electric Energy Meter Testing System 2
