YC99T Three - Phase Meter Testing Device Comprehensive Tests, Easy Operation

Name: YC99T Three - Phase Meter Testing Device Comprehensive Tests, Easy Operation
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T-5C
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T-5C
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Material:

Aluminum Alloy

Testing Mode:

Active Power, Reactive Power

Voltage Range:

57.7V ~ 380V

Current Range:

50mA – 120A

Phase Range:

0 -- 360°

Frequency Range:

40Hz – 70Hz

Weight (kg):

Dimensions (W×H×D) (mm):

445×180×680

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

YC99T-5C Electric Meter Checking Device

Harmonic Output Electric Meter Accuracy Test

Electric Meter Checking Device Harmonic Output

Product Description

YC99T Three - Phase Meter Testing Device Comprehensive Tests, Easy Operation

Specifications:

Voltage Source
Voltage Range	57.7V ~ 380V
Test voltage output (Phase-Neutral)		3* (0V – 450V)

Output Capacity	30VA max/phase
Resolution	0.01%
Accuracy	0.05%
Stability	0.01%/ 180s
Distortion factor	< 0.2% for linear resistance load
Current Source
Current Range	50mA – 120A
Test current output	3*(1mA – 120A)
Output Capacity	100 VA max/phase@100A
Resolution	0.01%
Accuracy	0.05%
Stability	0.02%/180s
Distortion factor	< 0.2% for linear resistance load
Phase angle
Range	0 -- 360°
Resolution	0.01°
Accuracy	0.05°
Frequency
Range	40Hz – 70Hz
Resolution	0.002Hz
Pulse output
High frequency output(CH)	1.666×105 Hz
Low frequency output(CL)	5×10-5×CH
Pulse input
Input channel	3
Input frequency	Max. 20Hz
Other
Voltage Supply	110V/220V ±15% 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%
Dimensions (W×H×D) (mm)	445×180×680
Weight (kg)	46

Description:

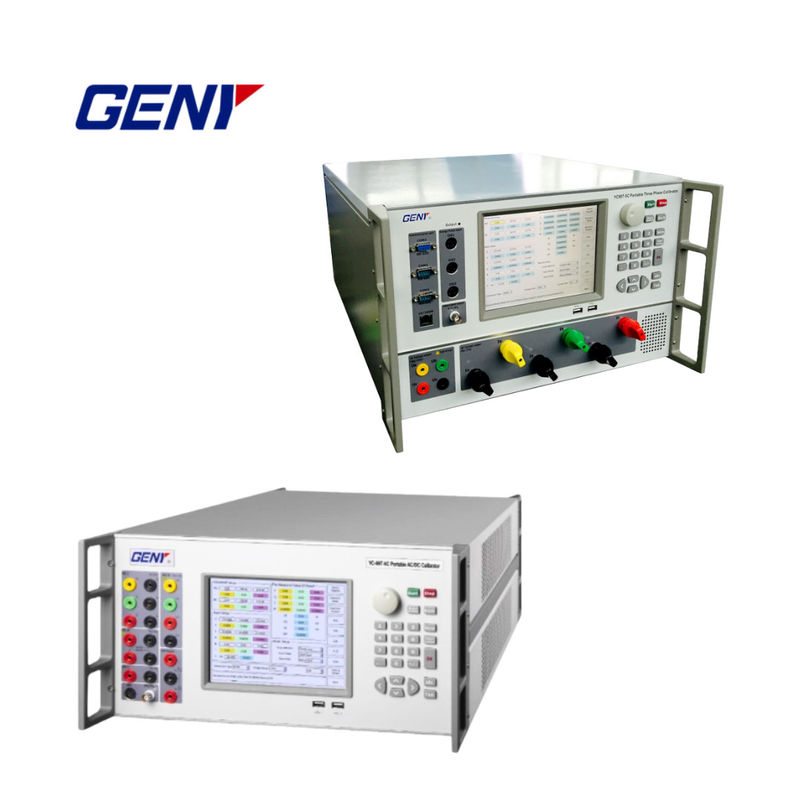

The YC99T - 5C is a portable three - phase meter testing device (calibrator) suitable for both laboratory and on - site use. Leveraging the latest advancements in energy meter calibration technology, this calibrator offers high - precision testing capabilities.
It shares the same software functionality as the YC99T - 5C calibration system but differs in voltage and current output. The YC99T - 5C calibrator supports the DLT - 645 (2007) communication protocol, enabling it to conduct comprehensive multi - function tests, including demand indication error, demand period error, time switching error, and rate period energy indication error.
Equipped with a constant - temperature crystal oscillator, the YC99T - 5C can accurately verify the daily time error of electric energy meters. Its design features an excellent panel screen and a well - organized wiring arrangement. Both the front and rear panels are user - friendly, facilitating easy operation.
Beyond normal meter testing, the YC99T - 5C can also serve as a harmonic power output device, generating stable harmonic outputs. It has similar functions to the YC99T - 3C, but they differ in voltage and current output. The YC99T - 3C offers more current and voltage channels.

Key Features:

Testing Modes: Supports both active power and reactive power testing.
Meters Under Test: Compatible with 3P4W, 3P3W, and 1P2W meters.
Power Source and Instrument Combination: The calibrator integrates a power source and a calibration electronic instrument, providing a wide range of current and voltage outputs.
Special Tests: Enables starting tests and creeping tests.
Data Management: Test data can be managed on a computer via the Rs232 interface.
Dual - mode Operation: Can be operated either directly on the device or controlled remotely via a PC.
Automated Calibration: Automatically calibrates energy meters, covering multiple items such as preheating, starting, creeping, error, influence, and quantity tests.
