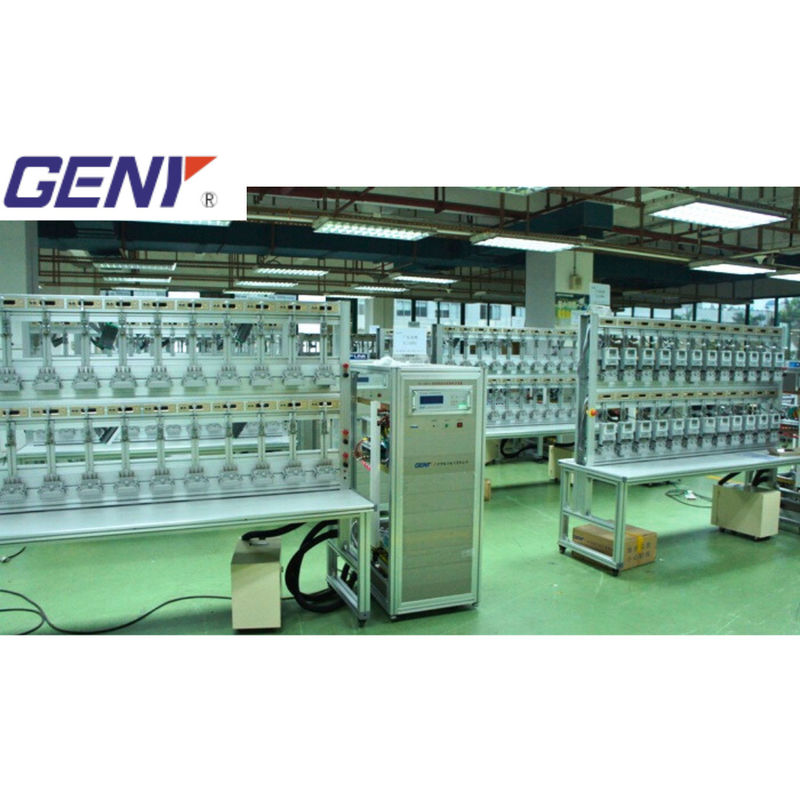

YC1891D Precision factory-manufactured full-auto single-phase electricity meter test equipment

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Accuracy:

±0.5%

Stability:

Better Than 0.01%

Current Output Range:

0~200A AC Current

Output Range:

0～480V-AC

Current Range:

0.001 - 200A

Meter Position:

3/6/12/48/60

Structure:

All-in-one

Harmonic Output Range:

2-41 Times

Communication Port:

485 Communication Port

Usage:

Energy Meter Calibration, Lab Research

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Product Description

Meter Models Supported: 1P2W and 1P3W meters.
Testing Modes: Active and reactive power testing. MSVT capability for testing single-phase meters with closed current-voltage measurement links (I-P links).
Calibration Options: Current output switch for calibrating 2-element meters (optional).
Communication Ports: RS232 and Ethernet ports in each meter position for automated electronic meter calibration (optional).
Meter Types: Capable of measuring mechanical, electronic mechanical, and electronic meters through automatic, semi-automatic, or manual operation.
Material: Constructed from lightweight, strong, and corrosion-resistant aluminum alloy.
Efficiency Enhancements: Automatic positioning of rotor marks on mechanical meter discs for increased efficiency.
Simplified Control: Synchronized movement of scanning heads for streamlined control.
Tests Available: Start-up tests, creep tests, and simultaneous measurement of different meter constants.
Protection Features: Overload protection, short voltage circuit protection, and open current circuit protection.
Software: User-friendly testing software compatible with Windows 10 and XP, featuring modules for error testing, harmonic testing, demand testing, and influence testing, among others.
Data Management: Test data can be exported in multiple formats for use with other programs.
Certifications: Certified to meet EU health and safety standards with a CE certificate.

Application Conditions and Requirement
Environment			Power Requirement	Safety
Operation Temperature	Humidity	Altitude	Voltage Supply	IP Class	Conformity
-10°C--+40°C	35%--85%	< 2500m	3x220/380v±10%(or customized) 50/60Hz±2Hz	IP 30	CE conformity

Type	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YC8-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ-01A-K3
MSTV	HJ200G-6	HJ200G-12	HJ200G-24	HJ200G- 48
Scanning Head	YCG-2-series
Voltage
Test voltage output (Phase-Neutral)	24V-300V(or customized)
Power of the voltage output	Max.100VA	Max.250VA	Max.500VA	Max.1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2^nd - 41^st free programmable
Current
Test current output	1mA-120A/200A
Power of the current output	Max.250VA Max.500VA Max.1000VA Max.2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable
Phase angle
Phase angle	0°-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits
