| Brand Name: | GENY |
| Model Number: | YC-1893D |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100/Year |

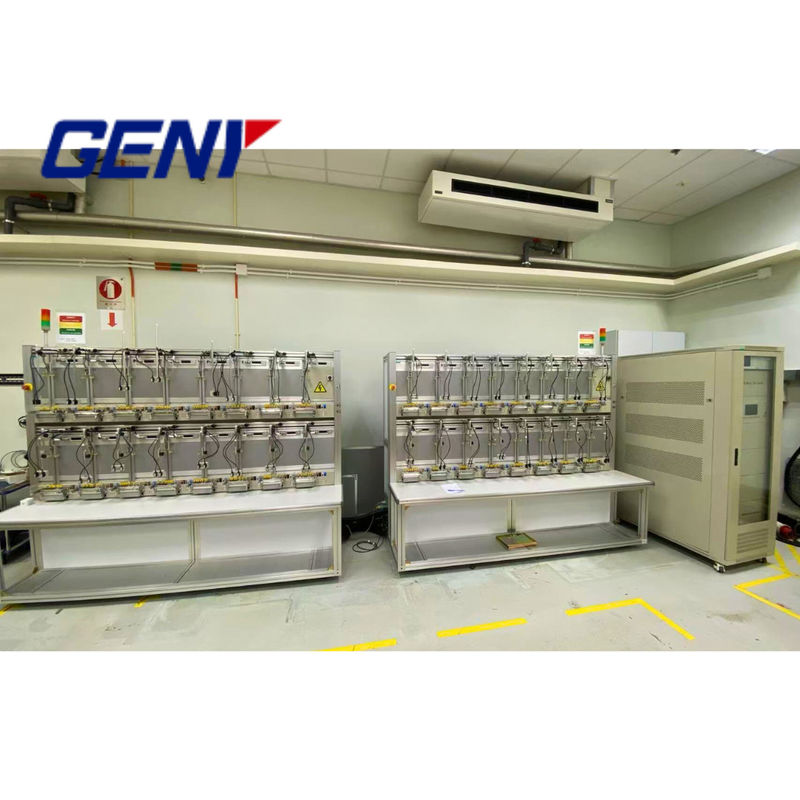

The three-phase meter test system with ICTs offers multiple positions for testing up to 40 meters and features an accuracy class of 0.02%. It is equipped with a multi-serial port communication system for parallel communication, making it ideal for smart meter testing.
Power Supply
| Voltage | 3x230 / 400 V ±10%, 50 / 60 Hz ±2 Hz |
| Frequency | 50 Hz ±15% |
| Power capacity | > 6 kVA |
| Power efficient(at full load) | ≥85% |
| Ambient temperature | -10 °C -- +40 °C |
| Relative humidity | 35% - 85% |
Power Source
| Voltage | |
| Test voltage output (Phase-Neutral) | 3x(24 – 300 V) |
| Power of the voltage output | 3×1500VA |
| Resolution | Better than 0.01% of full scale value of range |
| Setting accuracy | Better than 0.05% at the final range value |
| Stability | Better than 0.005%/h (integration time 150 s) |
| Load regulation from 0-max. load | < 0.01% |
| Distortion factor | < 0.3% for linear resistance load |
| Harmonics | 2nd – 41st free programmable |
| Current | |
| Test current output | 1 mA – 120 A |
| Power of the current output | 3×2000VA |
| Resolution | Better than 0.01% of full scale value of range |
| Setting accuracy | Better than 0.05% at the final range value |
| Stability | Better than 0.005%/h (integration time 150 s) |
| Load regulation from 0-max. load | < 0.01% |
| Distortion factor | < 0.3% for linear resistance load |
| Harmonics | 2nd – 41st free programmable |
| Phase angle | |
| Range | 0 -- 360° |
| Resolution | 0.01° |
| Setting accuracy | 0.1° |
| Frequency | |
| Range | 45 Hz – 65 Hz |
| Resolution | 0.01 Hz |
