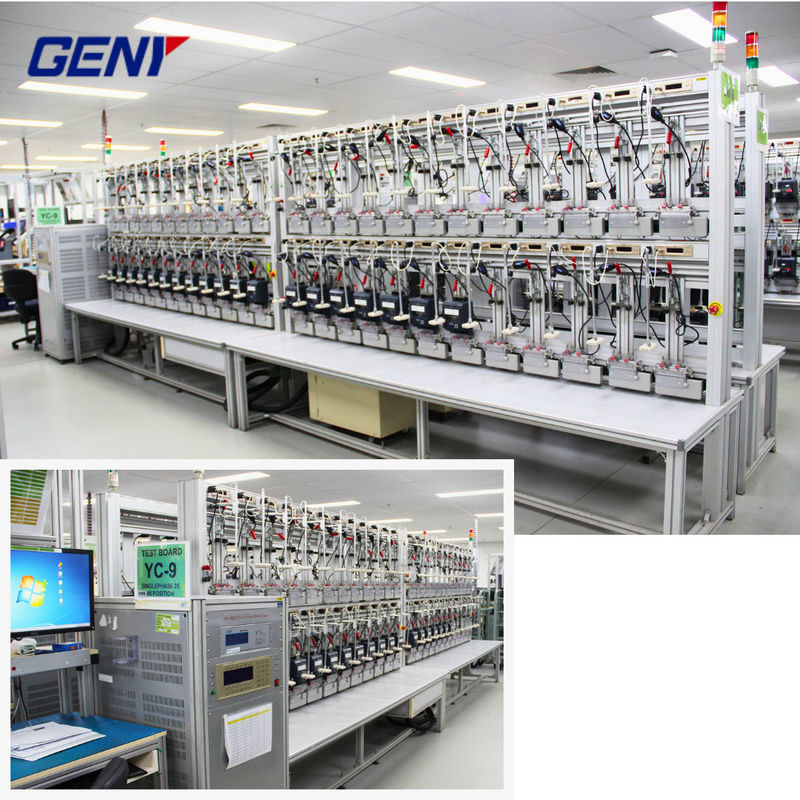

YC1891D Series High-Precision Energy Meter Test Equipment 6/12/24/48 Positions

Name: YC1891D Series High-Precision Energy Meter Test Equipment 6/12/24/48 Positions
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1891D
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1891D

After-sales Service:

3 Year

Warranty:

1 Year

Application:

Electromagnetic Instrument

Power:

Electricity

Voltage Output:

24V-300V(or Customized)

Current Output:

1mA-120A/200A

LCD Display:

With LCD Display

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Specification:

10.7CBM

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

6 Positions Energy Meter Test Equipment

High-Precision Energy Meter Test Equipment

YC1891D Series Energy Meter Test Equipment

Product Description

YC1891D Series High-Precision Energy Meter Test Equipment 6/12/24/48 Positions

Specifications:

	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ01A-K3
MSVT	HJ200GL-6	HJ200GL-12	HJ200GL-24	HJ200GL-48
QCD	D5 series
Scanning Head	YCG-2 series
Voltage
Test voltage output	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	1mA – 100A or customized,Max.200A			1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Voltage Supply	220V±10% or customized 50/60Hz±2Hz			3x220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Description:

Our meter assessment solution offers flexible evaluation via automated, semi-automated or manual means for various meters.
Designed for 1P2W single-phase meters, it tests true, reactive, and zero-sequence reactive power. Incorporating MSVT tech, it examines meters with I-P links. An optional switch aids two-component meter calibration.
It allows concurrent assessment of same-spec but different-constant meters, and has rotor mark alignment for efficiency. It can perform start-up and slow-movement tests, with safeguards against overload, short, and open-circuit.
The synchronized scanning heads streamline control. Made of aluminum alloy, it's lightweight and durable. Its software, compatible with Windows 2000/XP/7/8/10, includes multiple energy meter testing functions.

Optimized Applications:

Major National Power Utilities
State Metrological Authorities
Top Energy Meter Manufacturers

Enhanced Competitive Advantages:

Premium Product Quality
Prolonged Warranty Exceeding 18 Months
High-Precision Accuracy Class: 0.05/0.02, with Achievable Precision to 0.01% Across Meter Positions
Flexible Testing Platform for 3 to 48 Single-Phase Electric Energy Meters
Unmatched Power Stability
Optional Neutral Current Measurement
Chronometric Error Analysis
Comprehensive Assessment of Voltage, Frequency, and Harmonic Effects
RS232 and Ethernet Interfaces at Each Meter Position
Optional Tilt Impact Resistance Testing Available
