| Brand Name: | GENY |
| Model Number: | YC1891D |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100/Year |
| YC1891D-6 | YC1891D-12 | YC1891D-24 | YC1891D-48 | |
| Number of meter positions | 6 | 12 | 24 | 48 |
| Accuracy | 0.05 | |||
| Power Source | YCS-101-250 | YCS-101-600 | YCS-101-1200 | YCS-101-2500 |
| Standard Meter | SZ01A-K3 | |||
| MSVT | HJ200GL-6 | HJ200GL-12 | HJ200GL-24 | HJ200GL-48 |
| QCD | D5 series | |||
| Scanning Head | YCG-2 series | |||
| Voltage | ||||
| Test voltage output | 24V – 288V or customized | |||
| Power of the voltage output | 100VA | 250VA | 500VA | 1000VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | Better than 0.01% | |||
| Distortion factor | Better than 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Current | ||||
| Test current output | 1mA – 100A or customized,Max.200A | 1mA – 100A | ||
| Power of the current output | 150VA | 350VA | 750VA | 1500VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | Better than 0.01% | |||
| Distortion factor | Better than 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Phase angle | ||||
| Range | 0 -- 360° | |||
| Resolution | 0.01° | |||
| Setting accuracy | 0.1° | |||
| Frequency | ||||
| Range | 45Hz – 65Hz | |||
| Resolution | 0.01Hz | |||
| Error display | ||||
| Type of error display | Red LED | |||
| Resolution of the error displays | 8 digits | |||
| Voltage Supply |
220V±10% or customized 50/60Hz±2Hz |
3x220/380V±10% or customized 50/60Hz±2Hz |
||
| Ambient temperature | -10°C -- +40°C | |||
| Relative humidity | 35% -- 85% | |||

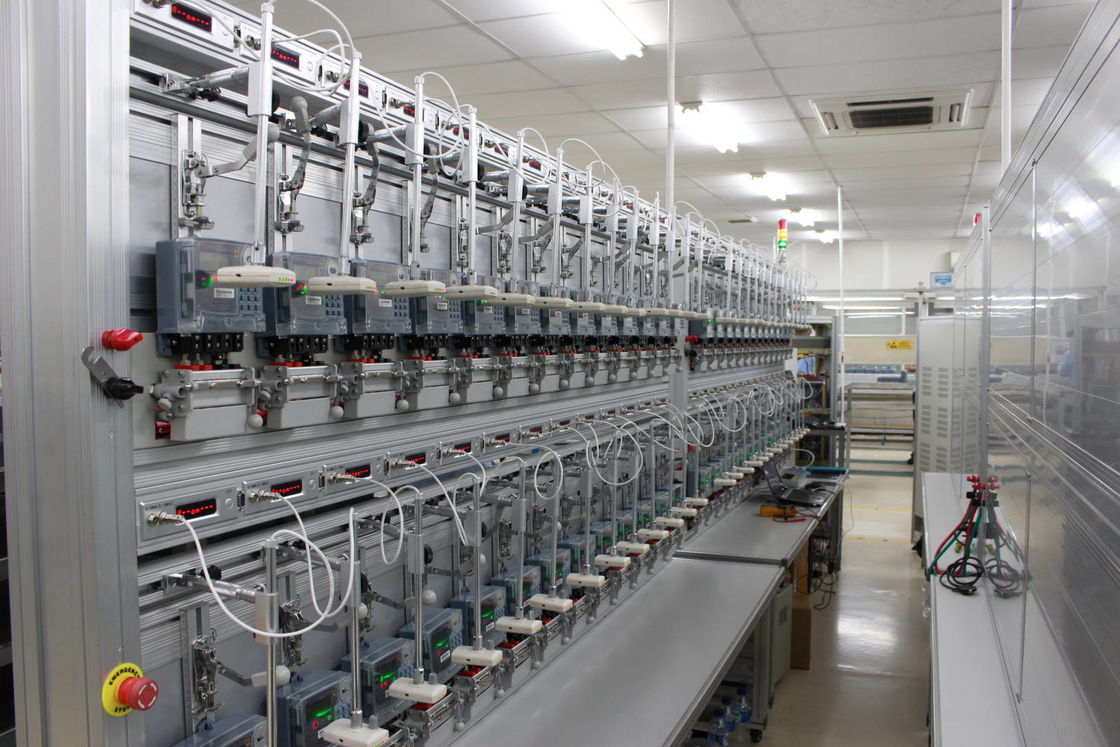

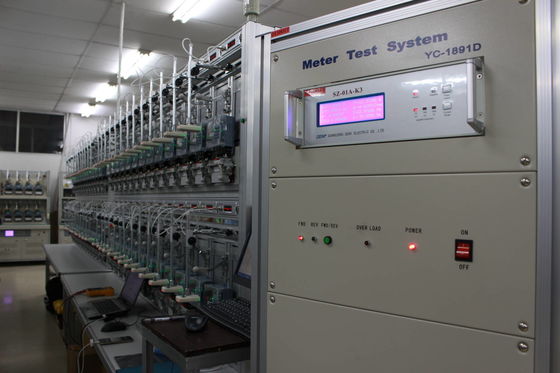

This meter assessment solution is capable of evaluating mechanical, electromechanical, and electronic meters through fully automated, semi-automated, or manual processes.
It is designed for testing single-phase meters with a 1P2W configuration.
The system offers testing for true power, reactive power, and zero-sequence reactive power.
Incorporating MSVT technology, it can examine single-phase meters with integrated current and voltage circuits (I-P links).
An optional current output switch facilitates the calibration of two-component meters.
It enables the concurrent assessment of meters that share identical specifications but possess varying constants.
The system features automated alignment of the mechanical meter's rotor mark for enhanced operational efficiency.
Capable of performing start-up tests and slow-movement assessments.
Equipped with safeguards against excessive load, low-voltage shorts, and open-circuit conditions.
The synchronized movement of scanning heads streamlines the control process.
Constructed from aluminum alloy for a lightweight, robust, and corrosion-resistant design.
The user-friendly software is compatible with Windows 2000/XP/7/8/10 and encompasses a comprehensive suite of modern energy meter testing functionalities, including error analysis, harmonic analysis, load profiling, and impact assessments.
Major national power utilities
State metrological authorities
Leading manufacturers of energy meters
Superior product quality
Extended warranty period of over 18 months
Superior accuracy class: 0.05/0.02 *** Exceptional precision achievable to 0.01% across three meter positions***
Versatile testing platform for 3 to 48 single-phase electric energy meters
Unparalleled power stability
Optional neutral current measurement capability
Chronometric error assessment
Comprehensive testing for the effects of voltage, frequency, and harmonics
Each meter position is equipped with RS232 and Ethernet communication interfaces.
Optional tilt impact resistance testing.
