Stable and Accurate Stationary Meter Test Bench with Better Than 0.005%/h Stability

Name: Stable and Accurate Stationary Meter Test Bench with Better Than 0.005%/h Stability
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1891D
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1891D

After-sales Service:

3 Year

Warranty:

1 Year

Application:

Electromagnetic Instrument

Power:

Electricity

Voltage Output:

24V-300V(or Customized)

Current Output:

1mA-120A/200A

Thermocouple (TC):

Resistance-Temperature Detector (RTD):

LCD Display:

With LCD Display

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Specification:

10.7CBM

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

Stationary Meter Test Bench

Stable Stationary Meter Test Bench

Accurate Stationary Meter Test Bench

Product Description

Stable and Accurate Stationary Meter Test Bench with Better Than 0.005%/h Stability

Our sophisticated meter assessment system is engineered to evaluate a broad spectrum of meters, encompassing mechanical, electromechanical, and electronic types, with the flexibility for fully automated, semi-automated, or manual control. It is capable of assessing single-phase meters configured in 1P2W setups and provides an array of assessment methods such as active power, reactive power, and interlaced reactive power.

Specification :

	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ01A-K3
MSVT	HJ200GL-6	HJ200GL-12	HJ200GL-24	HJ200GL-48
QCD	D5 series
Scanning Head	YCG-2 series
Voltage
Test voltage output	24V – 288V or customized
Power of the voltage output	100VA	250VA	500VA	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current
Test current output	1mA – 100A or customized,Max.200A			1mA – 100A
Power of the current output	150VA	350VA	750VA	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Voltage Supply	220V±10% or customized 50/60Hz±2Hz			3x220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

Key Features:

Single-phase meter evaluation with I-P connectivity through MSVT technology.
A current output selector for the optional calibration of dual-element meters.
Concurrent assessment of meters with similar specifications but different constants.
Automated alignment of mechanical meter rotor marks to boost operational efficiency.
Functions for initiating tests and performing incremental assessments.
Comprehensive safeguarding against excessive loads, electrical shorts, and broken current paths.
Streamlined operation with synchronized scanning mechanisms.
Robust aluminum alloy framework for a lightweight, sturdy, and corrosion-resistant structure.
Intuitive software compatible with Windows 2000/XP/7/8/10, featuring modules for error analysis, harmonic assessment, demand measurement, and influence measurement.

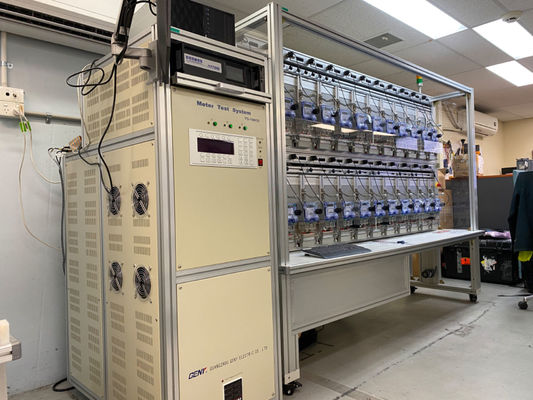

Stable and Accurate Stationary Meter Test Bench with Better Than 0.005%/h Stability 0
