| Brand Name: | GENY |
| Model Number: | YC1891D |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100/Year |
| YC1891D-6 | YC1891D-12 | YC1891D-24 | YC1891D-48 | |
| Number of meter positions | 6 | 12 | 24 | 48 |
| Accuracy | 0.05 | |||
| Power Source | YCS-101-250 | YCS-101-600 | YCS-101-1200 | YCS-101-2500 |
| Standard Meter | SZ01A-K3 | |||
| MSVT | HJ200GL-6 | HJ200GL-12 | HJ200GL-24 | HJ200GL-48 |
| QCD | D5 series | |||
| Scanning Head | YCG-2 series | |||
| Voltage | ||||
| Test voltage output | 24V – 288V or customized | |||
| Power of the voltage output | 100VA | 250VA | 500VA | 1000VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | Better than 0.01% | |||
| Distortion factor | Better than 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Current | ||||
| Test current output | 1mA – 100A or customized,Max.200A | 1mA – 100A | ||
| Power of the current output | 150VA | 350VA | 750VA | 1500VA |
| Resolution | Better than 0.01% of full scale value of range | |||
| Setting accuracy | Better than 0.05% at the final range value | |||
| Stability | Better than 0.005%/h (integration time 150 s) | |||
| Load regulation from 0-max. load | Better than 0.01% | |||
| Distortion factor | Better than 0.3% for linear resistance load | |||
| Harmonics | 2nd – 21st free programmable | |||
| Phase angle | ||||
| Range | 0 -- 360° | |||
| Resolution | 0.01° | |||
| Setting accuracy | 0.1° | |||
| Frequency | ||||
| Range | 45Hz – 65Hz | |||
| Resolution | 0.01Hz | |||
| Error display | ||||
| Type of error display | Red LED | |||
| Resolution of the error displays | 8 digits | |||
| Voltage Supply |
220V±10% or customized 50/60Hz±2Hz |
3x220/380V±10% or customized 50/60Hz±2Hz |
||
| Ambient temperature | -10°C -- +40°C | |||
| Relative humidity | 35% -- 85% | |||

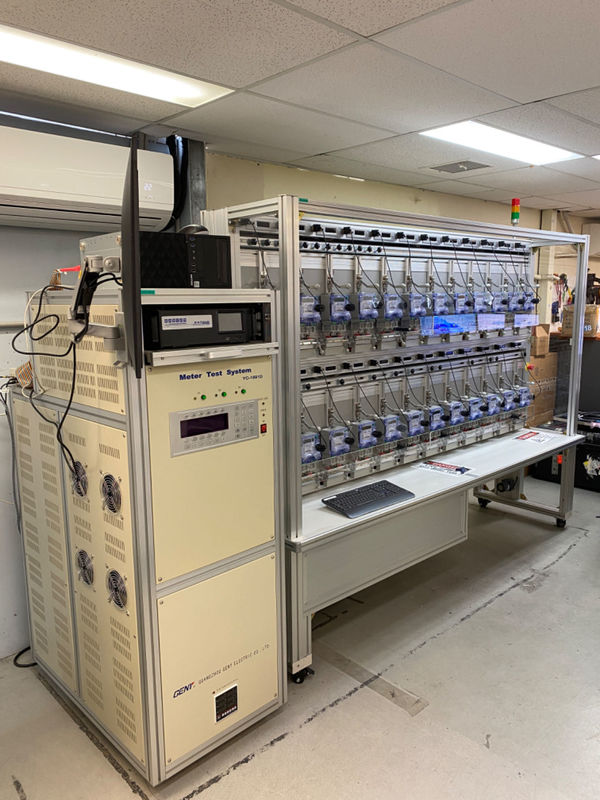

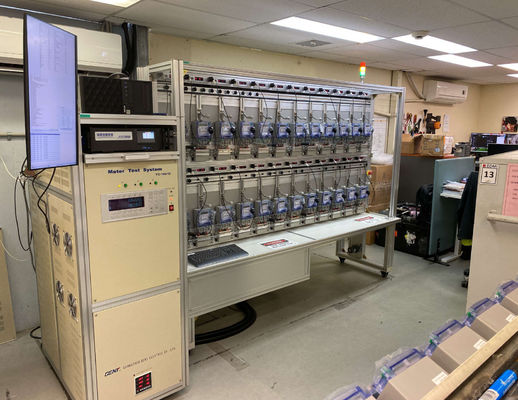

Meter Test System Overview:
Our advanced meter test system is designed to measure a variety of meters, including mechanical, electronic mechanical, and electronic meters, with options for automatic, semi-automatic, or manual operation. It supports testing of single-phase meters with 1P2W configurations and offers a range of testing modes including active power, reactive power, and cross-connected reactive power.
MSVT capability for testing single-phase meters with I-P links.
Current output switch for optional calibration of 2-element meters.
Simultaneous measurement of meters with identical specifications but varying constants.
Automatic rotor mark positioning for mechanical meters, enhancing efficiency.
Capabilities for starting tests and creeping tests.
Comprehensive protection against overload, short circuits, and open current circuits.
Simplified control with synchronized scanning heads.
Durable aluminum alloy construction for lightweight, strong, and corrosion-resistant design.
User-friendly Windows 2000/XP/7/8/10 compatible software with modules for error testing, harmonic analysis, demand testing, and influence testing.
