Professional Stationary Meter Test System for Precise Voltage and Current Output

Professional Stationary Meter Test System for Precise Voltage and Current Output

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Accuracy:

0.05 / 0.02

Number Of Meter Positions:

Voltage:

3 ×230/398V±10%

Power Of The Voltage Output:

Max 3x500VA

Stability:

Better Than 0.005% /h

Structure:

All-in-one

Usage:

Energy Meter Calibration, Lab Research

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Precise Voltage Stationary Meter Test System

Professional Stationary Meter Test System

Current Output Stationary Meter Test System

Product Description

Professional Stationary Meter Test System for Precise Voltage and Current Output

Technical Data

Power Supply

Voltage
3 ×230/398V±10%
Frequency
50 / 60Hz ±2Hz
Power capacity
>3 ×3kVA
Ambient temperature
-10°C -- +40°C
Relative humidity
35% -- 85%

Voltage output

Test voltage output(Phase-Neutral)	3x(24V-300V)
Power of the voltage output	3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-21st free programmable

Current Output

Test current output	3x(0.3mA-120A)
Power of the current output	3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-21st free programmable

Phase Angle

Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°

Frequency

Range	45Hz-65Hz
Resolution	0.01Hz

Features and functions

The test bench mainly has features as below

Supporting parallel communication port to test smart meters through RS232
Calibrating terminals on the rack for test bench verification
Suit for calibration / pulsing test of 3-phase energy meters of EDMI
Accuracy Testing of reference standard meter
Pre-warming
Accuracy test as per IEC
Creeping test
Starting current test2 of 9
Repeatability of error test
Dial test
Influence quantity test related to accuracy tests (Voltage, Frequency, reverse phase sequence,
voltage unbalance)
Influence of harmonic component in voltage and current circuit as per IEC
Sub Harmonics as per IEC standards (IEC 62052-11 / 62053-21/22/23)
Odd Harmonics as per IEC standards

Customized features:

Able to do individual (voltage and current separate) and combined (power) calibration and
testing
Verification – 24+24 positions. At any one time, only 24 positions are running. Only need power supply for 24 positions, have a relay switch (preferably controllable by software) to switch between 1st 24 positions or 2nd 24 positions.
Able to work for both CT and WC range; 1(6)A, 1(10)A, 5(20)A, 5(100)A, 5(120)A
Able to perform gating and pulse method for calibration and testing
Able to run on DLMS protocol for reading and writing to Mk10M meters
Able to run on EDMI Command Line for reading and writing to Mk10E meters

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

Primary Competitive Advantages:

1. High quality product

2. Over 18 months long warranty

3. High accuracy class: 0.05/0.02

4. Can be customized of Three Phase Electric Energy Meter Test bench

5. Extremely high power stability

6. Neutral current test(optional)

7. Timing error test

8. Influence test of voltage, frequency, and harmonic

9. Installing RS232, Ethernet communication port in each meter position.

10. Tilt impact test (optional)

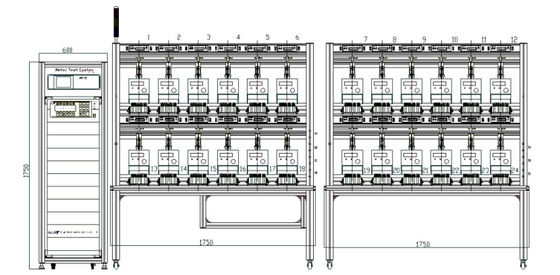

Professional Stationary Meter Test System for Precise Voltage and Current Output 0
