| Brand Name: | GENY |
| Model Number: | YC1891G |
| MOQ: | 1 |
| Price: | negotiate rates |
| Payment Terms: | T/T, L/C, D/P, T/T |
| Supply Ability: | 5 sets / 1 months |

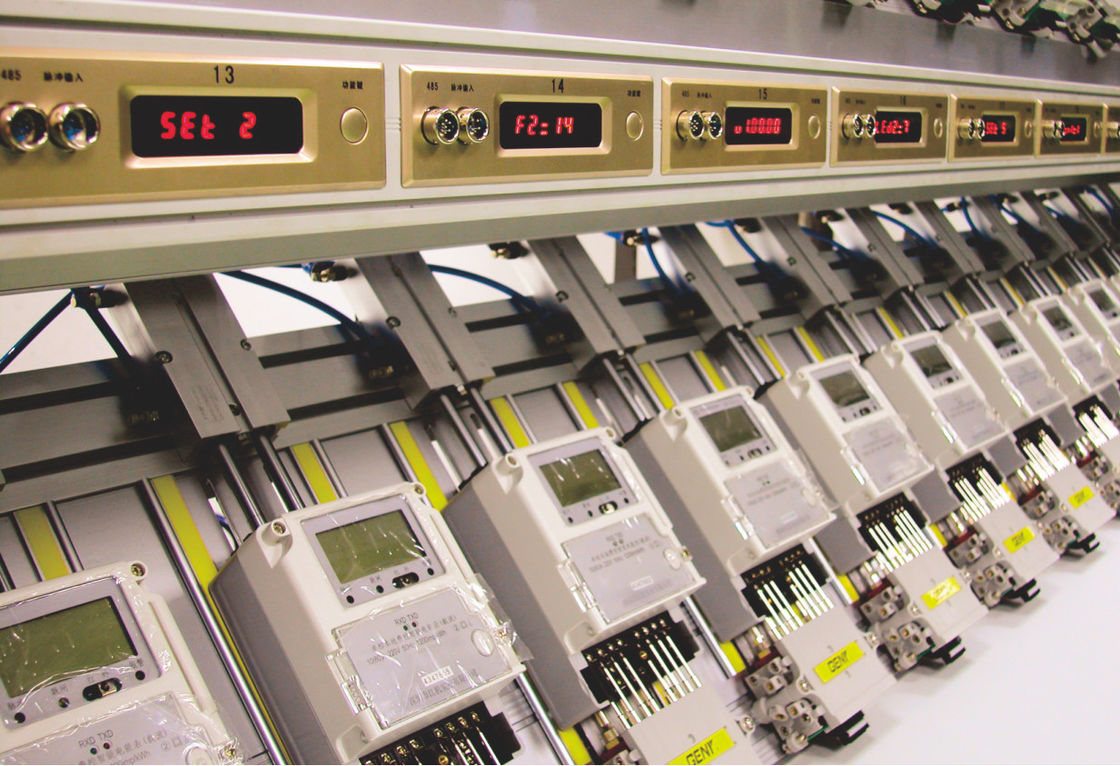

The YC-1891G series is a high-performance smart electricity meter multifunctional calibration device, designed to meet the diverse needs of power supply, metering, and electricity meter manufacturing factories. It is fully capable of satisfying the various requirements for the calibration of State Grid smart electricity meters (both local and remote meters), including load switches, dual circuits, infrared communication, carrier communication, and simulated card insertion. The calibration device consists of an integrated digital synthesized sine signal source, a high-stability programmable power source, overload automatic protection circuits, current and voltage output transformation circuits, automatic pressure contact (pneumatic) for meter positions, working power supply circuits, standard electricity meters, and distributed error calculators, all of which are standard metrological instruments.
| No. | Technical Specification | Details |
| 1 | Power Supply | AC220V±15%, 50/60Hz±2Hz |
| Ambient Temperature | -10℃ to +40℃ | |
| Relative Humidity | 35% to 85% R.H. | |
| 2 | Output Voltage Range | 0 to 480V |
| Voltage Resolution | ≤0.01 | |
| Output Voltage Power | >10VA (per meter position) | |
| Voltage Stability | ≤0.02%/120s | |
| Load Change Rate | ≤0.01% | |
| Voltage Distortion | ≤0.3% (full linear load range) | |
| 3 | Output Current Range | 0 to 120A |
| Output Current Power | >15VA (per meter position) | |
| Current Resolution | ≤0.01% | |
| Current Stability | ≤0.02%/120s | |
| Load Change Rate | ≤0.01% | |
| Current Distortion | ≤0.3% (linear load range) | |
| 4 | Output Phase | Phase adjustment range: 0 to 360° |
| Phase Resolution | 0.01° | |
| 5 | Output Frequency | Frequency adjustment range: 45 to 65Hz |
| Frequency Resolution | 0.01Hz | |
| 6 | Output Power | Output power stability: ≤0.02%/120s |
| 7 | Error Display | Signal reading: from electronic pulse signal end or LED optical signal end |
| Display Method | LED digital display (8 digits) | |
| Communication Protocol | Fully compliant with DL/T645-2007 and its DL/T645-2009-001/002 two filing documents |
