Professional Stationary Meter Test System for Electricity Meter Calibration

Name: Professional Stationary Meter Test System for Electricity Meter Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC-1891G
Availability: InStock

Brand Name:	GENY
Model Number:	YC-1891G
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Structure:

All-in-one

Power Supply:

AC220V ± 15%

Temperature:

-10°C To +40°C

Humidity:

35% To 85% R.H.

Output Voltage Range:

0 To 480V

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Professional Stationary Meter Test System

Stationary Meter Test System

Product Description

Professional Stationary Meter Test System for Electricity Meter Calibration

The YC-1891G Single-Phase Intelligent Electricity Meter Calibration Device is designed and manufactured in accordance with the standards for the series of smart electricity meters by the State Grid (Southern Grid). It takes into full consideration the characteristics of different users, including power supply, metering systems, and electricity meter manufacturers, and is fully capable of meeting their calibration needs.

Specifications

Category	Specification Name	Specification Parameters
Power Supply	Voltage	AC220V ± 15%
	Frequency	50/60Hz ± 2Hz
Environmental	Temperature	-10°C to +40°C
Conditions	Humidity	35% to 85% R.H.
Output Voltage	Range	0 to 480V
	Resolution	≤ 0.01V
	Power	> 10VA (per step) %
	Stability	≤ 0.02%/120s
	Load Change Rate	≤ 0.01%
	Distortion	≤ 0.3% (full linear load range)
Output Current	Range	0 to 120A
	Power	> 15VA (per step)
	Resolution	≤ 0.01%
	Stability	≤ 0.02%/120s
	Load Change Rate	≤ 0.01%
	Distortion	≤ 0.3% (linear load range)
Output Phase	Phase Range	0 to 360°
	Resolution	0.01°
Output Frequency	Range	45 to 65Hz
	Resolution	0.01Hz
Output Power	Stability	≤ 0.02%/120s
Error Display	Signal Reading	From electronic pulse signal or LED light signal
	Display Method	LED digital display (8 digits)
Communication Protocol		Fully compliant with DL/T645-2007 and DL/T645-2009-001/002 standards

Standard Features:

Startup and Submerged Operation Performance Testing
Positive and Reverse Active and Reactive Power and Energy Error Testing
Meter Reading Error Testing
Meter Combination Error Testing
Verification of Calibration Constants
RS485 Communication Testing
Daily Timing Error Testing
Time-Segment Switching Error Testing
Demand Reading Error Testing
Demand Cycle Error Testing
Error Consistency Testing
Load Current Step Change Testing

Special Features:

Combined Active and Reactive Power Testing
Tariff Time-Segment Energy Reading Error Testing
Remaining Energy Decrement Accuracy Testing
Local and Remote Fee Control Function Testing
Tiered Electricity Price Switching Function Testing
Built-in and External Load Switch Performance Testing
Current Overload Performance Testing
Short-term Overvoltage Performance Testing
Dual Current Loop Testing (Optional)
Infrared and Carrier Communication Testing (Optional)
Power Consumption Testing (Optional)
Testing of Influencing Quantities such as Voltage, Frequency, and Harmonics

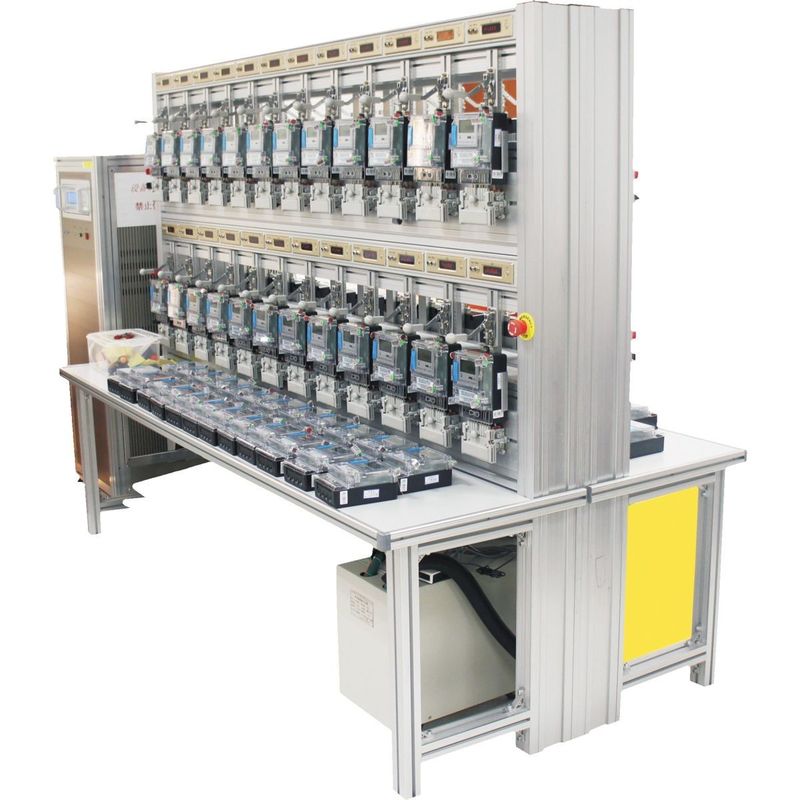

Professional Stationary Meter Test System for Electricity Meter Calibration 0
