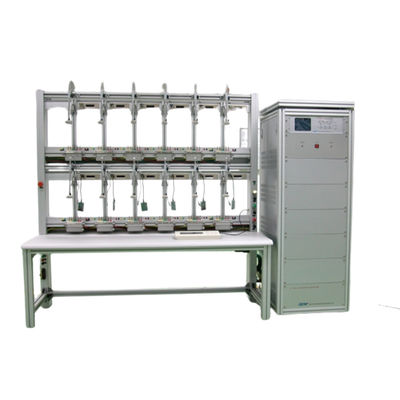

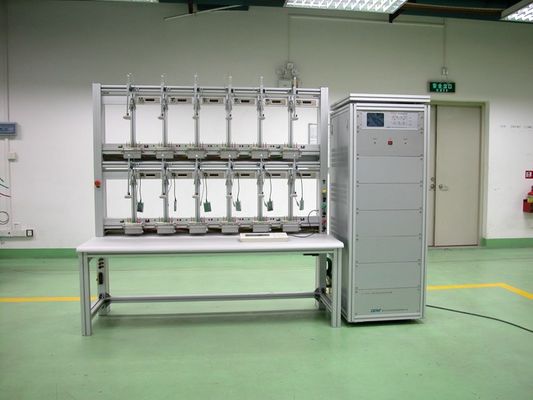

0.05-0.1 Accuracy Electric Meter Test Equipment For Calibration 12/24/48 Meters

• The meter testing system is capable of measuring mechanical meters, electronic mechanical meters, and electronic meters through automatic, semi-automatic, or manual operation modes.
•  It can simultaneously measure meters with identical specifications but varying meter constants.
• Supported meter types include 3P4W, 3P3W, and 1P2W configurations.
• The system offers automatic positioning of the rotor mark of mechanical meter discs, enhancing efficiency.
• Testing modes encompass active power, reactive power, and cross-connected reactive power.
• Optional neutral current testing is available.
• Functions include starting tests and creeping tests.
• Optional installation of the ICT in each meter position enables testing of three-phase meters with closed links between current and voltage measuring circuits (I-P links).
• The system incorporates protection functions against overload, short voltage circuits, and open current circuits.
• Constructed from aluminum alloy material, it is lightweight, durable, and corrosion-resistant.
• Simplified control is facilitated by the coordinated movement of scanning heads.
• The testing software is compatible with user-friendly Windows 2000/XP/7/8/10 operating systems and includes functional modules for various modern energy meter requirements such as Reality Error Test, Harmonic Test, Max Demand Test, Influence Test, etc.

Specifications:

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

Primary Competitive Advantages:

· High quality product

· Over 18 months long warranty

· High accuracy class: 0.02/ 0.05/ 0.1

· Can be customized of Three Phase Electric Energy Meter Test bench

· Extremely high power stability

· Timing Error Test

· Neutral current test(optional)

· Installing RS232, Ethernet communication port in each meter position.

· Influence test of voltage, frequency, and harmonic

· Tilt impact test (optional)
