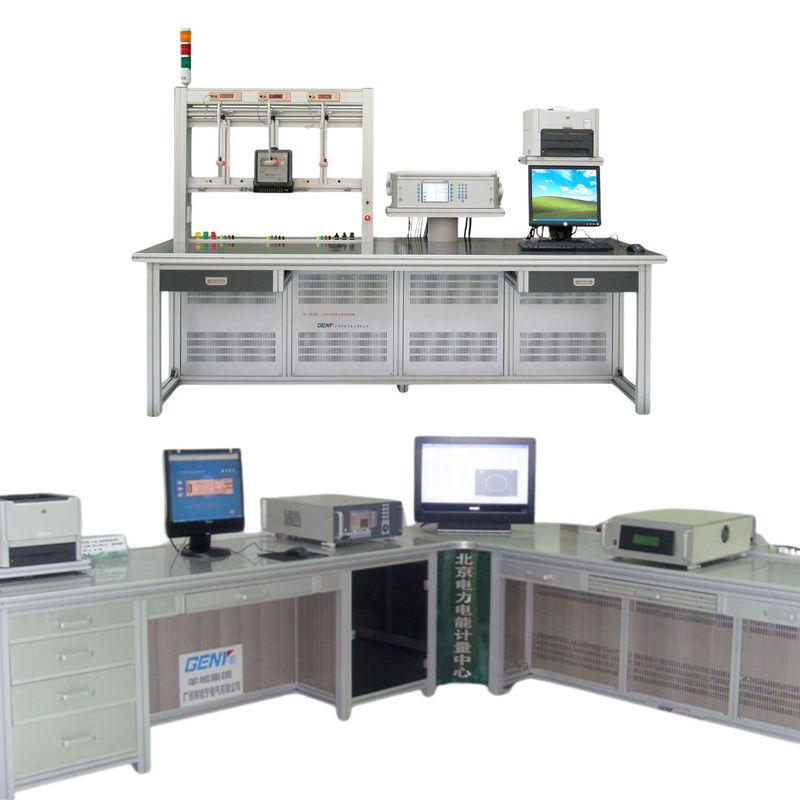

Three Phase Energy Meter Test Equipment Lab Electric Meter Testing Equipment

Name: Three Phase Energy Meter Test Equipment Lab Electric Meter Testing Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Accuracy Class:

0.01% / 0.02%

Number Of Meter Positions:

3 / 6

Power Source:

YCS-103-X

Structure:

All-in-one

Usage:

Energy Meter Calibration, Lab Research

Power Of The Voltage Output:

3x200VA

Stability:

Better Than 0.002% /h

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

energy meter test equipment lab

lab electric meter testing equipment

three phase energy meter test equipment

Product Description

High Accuracy Three Phase Energy Meter Test System for Electric Metering Lab

High Accuracy Three Phase Energy Meter Test System for Electric Metering Lab Applications

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

4. Laboratory of electric energy metering

Specifications:

Technical Speciation
Number Of Meter Positions	3 / 6
Accuracy Class	0.01% / 0.02%
Power Source	YCS-103-X
Reference Standard Meter	ZERA: COM3003 RADIAN: RD33-233 EMH/MTE: K2006 GENY: SZ03A-K8
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(40V~500V)(or customized)
Power of the voltage output	3x200VA
Resolution	Better than 0.001% of full scale value of range
Stability	Better than 0.002% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.05% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x (1mA~120A) max. to 230A
Power of the current output	3x300VA
Resolution	Better than 0.001% of full scale value of range
Stability	Better than 0.002% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.05% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Frequency
Range	45Hz~65Hz
Resolution	0.001Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

Description:

1. The meter test equipment can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation

2. Testing mode: active power, reactive power, cross connected reactive power

3. Meters under testing: 1P2W , 3P4W, 3P3W

4. Simultaneously measure meters with same specifications but different meter constants

5. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency

6. Creeping Test and Starting Test

7. With the protection function of short voltage circuit, overload and open current circuit

8. Aluminum alloy material, light and strong and corrosion resistant

9. The testing software with friendly Windows XP/ 7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

Primary Competitive Advantages:

1. High quality product

2. Highest accuracy class: 0.01/0.02

3. Extremely high power stability

4. Influence test of voltage, frequency, and harmonic

5. Installing RS232, Ethernet communication port in each meter position.

6. Over 18 months long warranty and extends to 36 months in capable

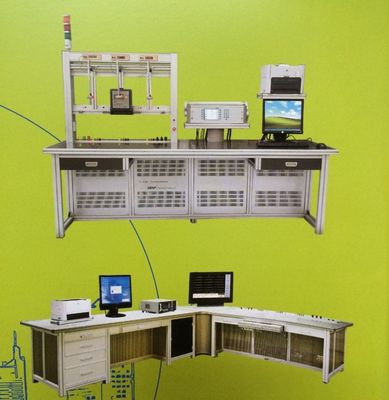

Three Phase Energy Meter Test Equipment Lab Electric Meter Testing Equipment 0
