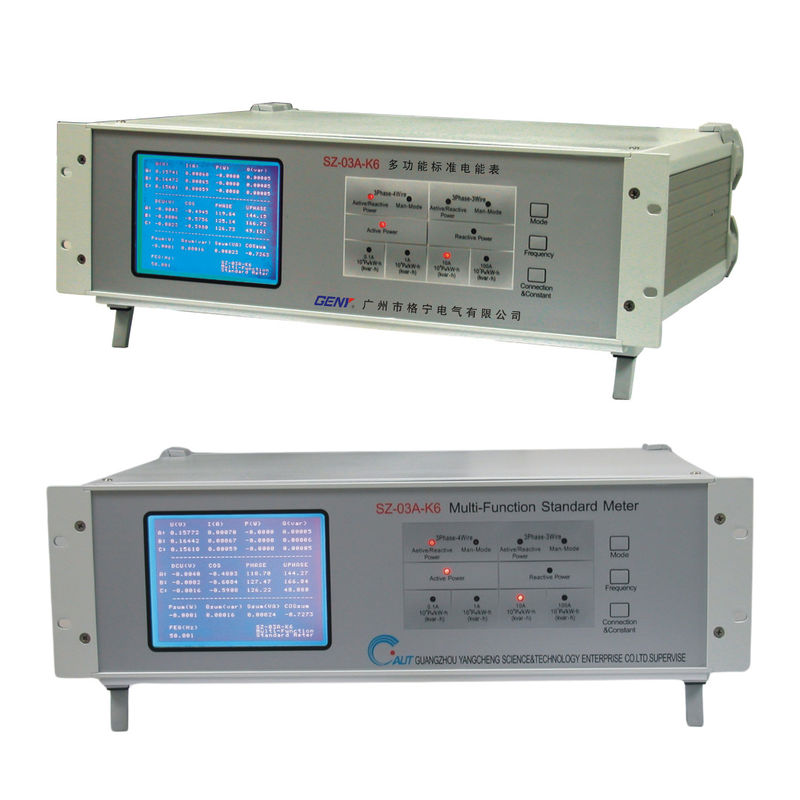

This is wide current range Three Phase Reference Standard Meter, suit for Stationary Three Phase Energy Meter Test System.
· High accuracy up to 0.05%
· Testing type: 3 phase 4 wire, 3 phase 3 wire
· Testing mode: active power, reactive power, cross connection reactive power
· Measuring voltage, current, phase, frequency, power etc of each phase
· Measuring phase angle of phase to phase, sum of active power, sum of reactive power etc
· Test data can be managed by computer via Rs232 interface
| SZ03A-K6 | |
| Test Voltage | |
| Range | 30V – 480V |
| Error |
±0.05% (30V – 480V) ±0.1% (5V – 50V) |
| Display range | 5.000000V – 480.0000V |
| Test Current | |
| Range | 10mA – 120A |
| Error |
±0.05% (0.2A – 120A) ±0.1% (10mA – 0.2A) |
| Display range | 1.000000mA-120.0000A |
| Power measure error | |
| Active power | ±0.05% (0.2A – 120A) |
| Reactive power | ±0.1% (0.2A – 120A) |
| Apparent power | ±0.1% (0.2A – 120A) |
| Energy measure error | |
| Active energy | -- |
| Reactive energy | -- |
| Apparent energy | -- |
| Phase angle | |
| Range | 0º – 360º |
| Error | ±0.05º |
| Display range | 0.000001º -- 359.9999º |
| Frequency | |
| Range | 45Hz – 65Hz |
| Display range | 45.0000 – 65.0000 |
| Pulse output | |
| High frequency output(CH) |
1×109 (0.2A – 1A) 1×108 (1A – 10A) 1×107 (10A – 120A) |
| Low frequency output(CL) | 2×10-5×CH |
| Pulse ratio | 1:1 |
| Output level | 5V |
| Pulse input | |
| Input level | -- |
| Input frequency | -- |
| Other | |
| Voltage Supply | 220V ± 10%, 50/60Hz ± 2Hz |
| Ambient temperature | 10°C -- 30°C |
| Influence of external fields | ≤ 0.05 % / mT |
| Relative humidity | 45% -- 75% |
| Dimensions (W×H×D) (mm) | 432×131×308 |
| Weight (kg) | 15 |
