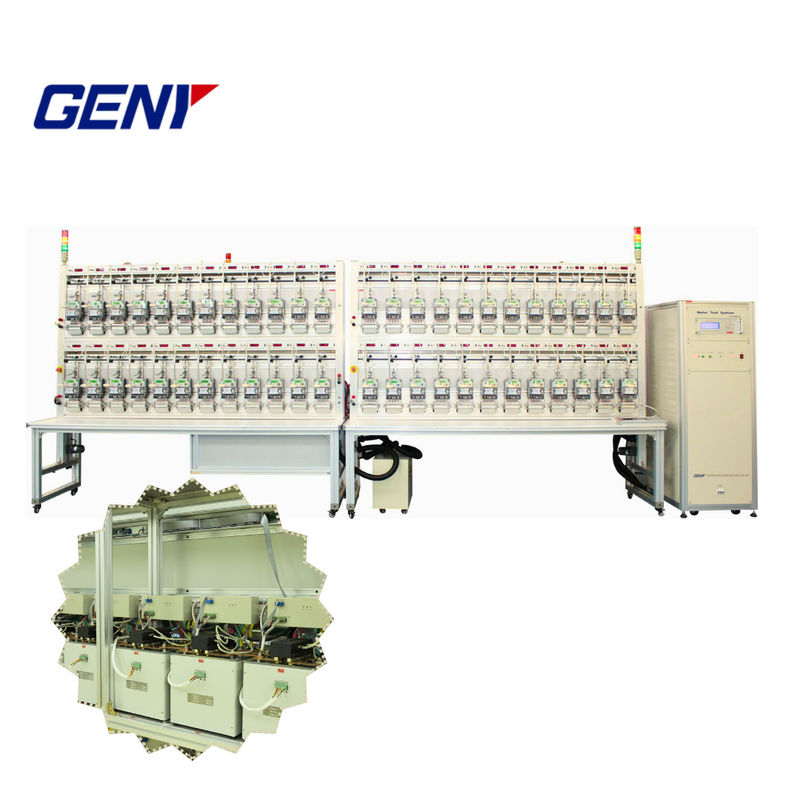

Yc1891d-12 Meter Test System Watt Hour Single Phase Energy Meter Test Bench

Name: Yc1891d-12 Meter Test System Watt Hour Single Phase Energy Meter Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1891D
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1891D-12 Single Phase Meter Test System

Accuracy:

0.05

Test Voltage Output (Phase-Neutral):

24V-300V(or Customized)

Test Current Output:

1mA-120A/200A

Phase Angle:

0°-360°

Frequency Range:

45Hz-65Hz

Supply Ability:

100/Year

Highlight:

Yc1891d-12 Meter Test System

Yc1891d-12 single phase energy meter testing

Single Phase Energy Meter Test Bench

Product Description

Digital Display Watt-Hour Meter YC1891D-12 Single Phase Meter Test System

Features & Functions

Meters under testing: 1P2W
Testing mode active power, reactive power With MSVT, can test single phase meters with closed links between the current and voltage measuring circuits(I-P links) With current output switch, can calibrate 2-element meters (optional)
Installing Rs232 Ethernet communication ports in each meter position, to realize automatic calibration of electronic meters (optional)
The meter test systems can measure mechanical meters, electronic mechanical meters and electronic meters by the way of automatic, semi-automatic or manual operation
Aluminum alloy material, light and strong and corrosion resistant
Automatic positioning rotor mark of disc of mechanical meters, with more efficiency.
The swing together of the scanning heads simplifies the control
Starting test and creeping test
Measuring different constants of meters synchronously
With the protection function of overload, short voltage circuit and open current circuit
The testing software with friendly Window 10 and XP operation system, includes functional module of all kinds or modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc.
The stored testing data can be transferred to multi-format for other program use
The whole system is accredited to conforms to EU health and safety standards with CE certificate

Product Parameters

Application Conditions and Requirement
Environment			Power Requirement	Safety
Operation	Humidity	Altitude	Voltage Supply	IP Class	Conformity
Temperature
-10°C--+40°C	35%--85%	< 2500m	3x220/380v±10%(or customized)	IP 30	CE conformity
			50/60Hz±2Hz

Type	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YC8-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ-01A-K3
MSTV	HJ200G-6	HJ200G-12	HJ200G-24	HJ200G- 48
Scanning Head	YCG-2-series
Voltage
Test voltage output (Phase-Neutral)	24V-300V(or customized)
Power of the voltage output	Max.100VA	Max.250VA	Max.500VA	Max.1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable
Current
Test current output	1mA-120A/200A
Power of the current output	Max.250VA Max.500VA Max.1000VA Max.2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable
Phase angle
Phase angle	0°-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Our Advantages

Innovation at the Helm: With over two decades of experience, we stand as a vanguard in the Electric Energy Meter measurement domain, pioneering breakthrough technologies and setting industry benchmarks.
Elite R&D Prowess: Our distinguished R&D team is the backbone of our innovation, dedicated to advancing the frontiers of Electric Energy Meter testing solutions to meet the unique demands of our diverse clientele.
Skilled and Professional Team: Each member of our team is meticulously trained, ensuring they embody excellence in both professional acumen and technical proficiency.
Quality Assurance Excellence: Our commitment to quality is reflected in our ISO9001 management system, certified since 2002. We have integrated Total Quality Management (TQM) principles into our ethos, ensuring every staff member is a custodian of our quality pledge.
Seamless Quality Integration: From R&D to production, marketing, sales, and service, Yangcheng operates under a unified ISO9001 framework, ensuring unwavering dedication to delivering premium product quality.
Strategic Marketing Edge: Leveraging a sophisticated marketing network, we are positioned to offer competitive pricing that adds value to our customers' investment.
Customer-Centric Service Excellence: Our service team is not just well-trained; they are equipped to deliver a comprehensive suite of services including maintenance, training, customized scheme design, and software updates, ensuring your first experience with us sets the gold standard for all subsequent engagements.
