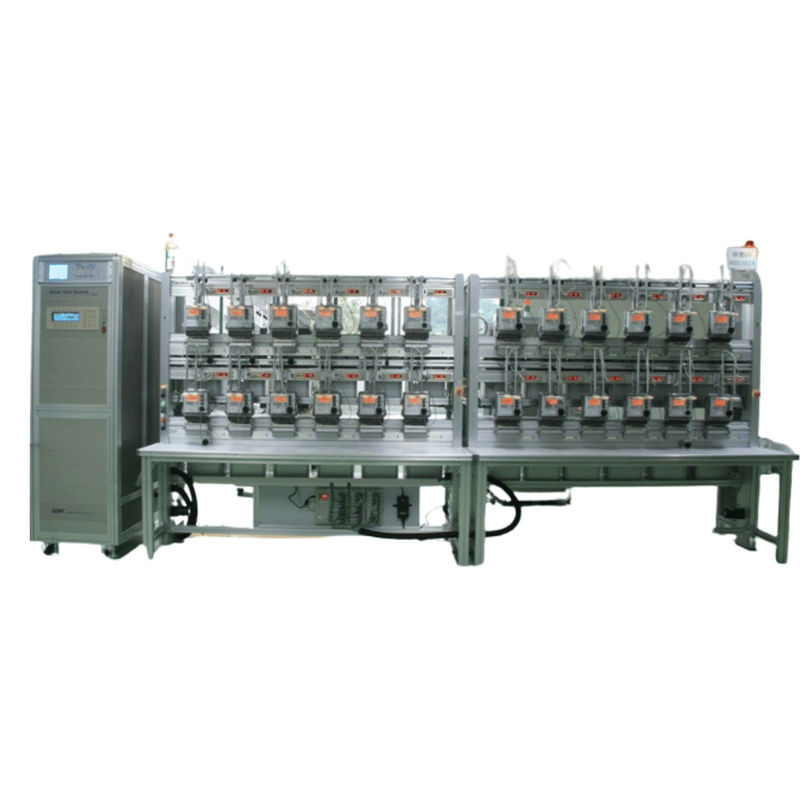

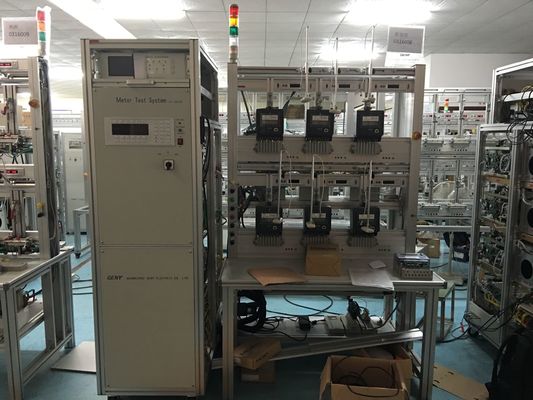

Three Phase Meter Test System Yc1893D-6 Meter Test Equipment

Brand Name:	GENY
Model Number:	YC-1893D-6
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1893D-6 Three Phase Meter Test System

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment:

Three-phase Three-wire

Theory:

Electronic Meter

Power Meter Connection:

Terminal

Measured Signal:

Pulse Peak

Type:

Energy Meter

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Specification:

12.4CBM

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

meter test system yc1893d

meter test system yc1893d-6

yc1893d-6 meter test equipment

Product Description

Direct Connected Installation Yc1893D-6 Three Phase Meter Test System 12.4CBM Capacity

Product Description

Meters under testing:3P4W,3P3W
Testing mode:active power,reactive power,cross connected reactive power
Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits (I-P Links) (optional)
Neutral current test (optional)
Installing RS232, Ethernet communication port in each meter position,to reality the automati calibrate of electronic meter(optional)
The meter test systems can measure mechanical meters, electronic mechanical meters and electronic meters by the way of automatic, semi-automatic or manual operation.
Aluminum alloy material,light and strong and corrosion resistant.
Automatic positioning rotor mark of disc of mechanical meters,with more efficiency.
The swing together of the scanning heads simplifies the control.
Starting test and creeping test.
Measuring different constants of meters synchronously.
With the protection function of overload, short voltage circuit and open current circuit. The testing software with friendly Window 10 and XP operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test,demand test, influence test etc.The stored testing data can be transferred to multi-format for other program use.
The whole system is accredited to conforms to EU health and safety standards with CE certificates

Product Parameters

Technical spec.	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05 / 0.02
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
