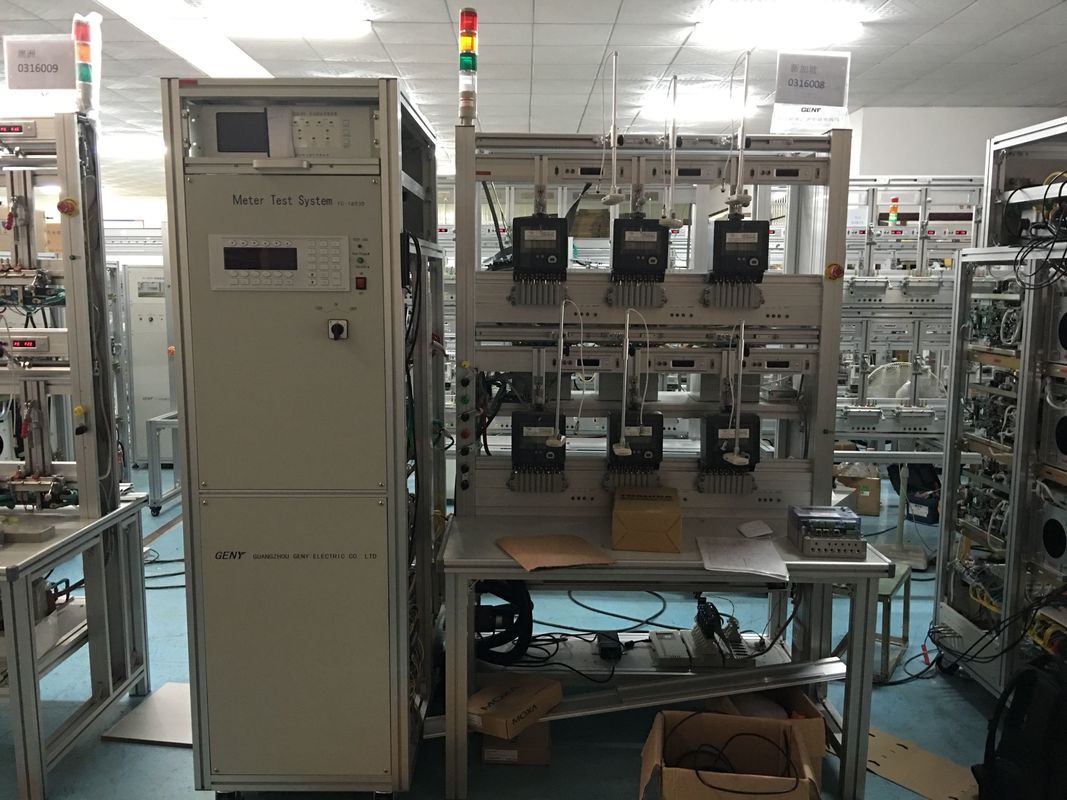

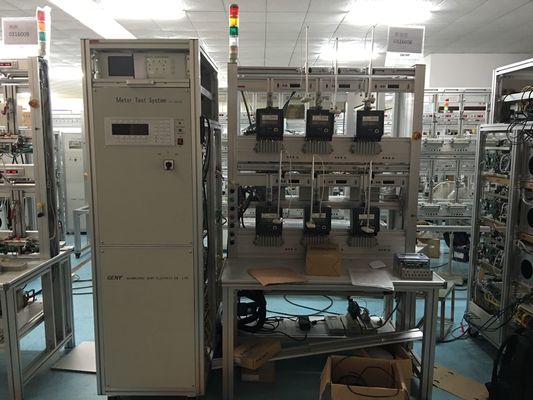

GENY Three Phase Meter Test Bench Yc1893D-6 Accuracy Test Of Energy Meter

Name: GENY Three Phase Meter Test Bench Yc1893D-6 Accuracy Test Of Energy Meter
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC1893D-6

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment:

Three-phase Three-wire

Theory:

Electronic Meter

Power Meter Connection:

Terminal

Measured Signal:

Pulse Peak

Type:

Energy Meter

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Specification:

12.4CBM

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

geny three phase meter test bench

three phase meter test bench yc1893d-6

yc1893d-6 accuracy test of energy meter

Product Description

Digital Display Yc1893D-6 Three Phase Meter Test Bench for Industrial Applications

Features

The meter test system can measure mechanical meters, electronic mechanical meters and electronic meter by the way of automatic, semi-automatic or manual operation.
Aluminium alloy material, light and strong and corrosion resistant.
Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.
The swing together of the scanning heads simplifies the control.
Fully automatic completion of the following tests:
- Accuracy test in all four quadrants (active, reactive and apparent energy)
- Repeatability of error test
- Creep test (No-load test)
- Starting current test
- Dial test (Register test)
- Meter constant test
- Influence quantity test (voltage, voltage unbalance, frequency, harmonic distortion, reverse phase sequence.)
- Calibration of reference standard meter having lower accuracy than the employed reference standard
- Pre-warming
- Dips and Interruptions
- Testing single-phase meters under tampered conditions
- Sub Harmonics as per IEC standards
- Odd Harmonics as per IEC standards
Measuring different constants of meters synchronously.
With the protection function of overload, short voltage circuit and open current circuit.

Specifications

Technical spec.	YC1893D-ICT-6	YC1893D-ICT-12	YC1893D-ICT-24	YC1893D-ICT-48
Number of meter positions equipped ICT	6	12	24	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%
