Three Wire Electric Meter Test Bench YC1893D-12 Electrical Meter Calibration

Name: Three Wire Electric Meter Test Bench YC1893D-12 Electrical Meter Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHNA

Certification:

ISO, CE

Model NO.:

YC1893D-12

Display:

Digital

Installation:

Direct Connected

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Electric Equipment:

Three-phase Three-wire

Theory:

Electronic Meter

Power Meter Connection:

Terminal

Measured Signal:

Pulse Peak

Type:

Energy Meter

Customized:

Customized

Trademark:

GENY

Transport Package:

Plywood Case

Specification:

12.4CBM

Origin:

China

HS Code:

9030849000

Port:

Guangzhou, China

Supply Ability:

100/Year

Highlight:

yc1893d-12 electrical meter calibration

electric meter test bench yc1893d-12

three wire electric meter test bench

Product Description

YC1893D-12 Three-phase Three-wire Meter Verification Station for Electric Equipment

Product Description

YC1893D Three Phase Meter Test System

Features& Functions

Meters under testing:3P4W,3P3W
Testing mode:active power,reactive power,cross connected reactive power
Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits (I-P Links) (optional)
Neutral current test (optional)
Installing RS232, Ethernet communication port in each meter position,to reality the automati calibrate of electronic meter(optional)
The meter test systems can measure mechanical meters, electronic mechanical meters and electronic meters by the way of automatic, semi-automatic or manual operation.
Aluminum alloy material,light and strong and corrosion resistant.
Automatic positioning rotor mark of disc of mechanical meters,with more efficiency.
The swing together of the scanning heads simplifies the control.
Starting test and creeping test.
Measuring different constants of meters synchronously.
With the protection function of overload, short voltage circuit and open current circuit. The testing software with friendly Window 10 and XP operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test,demand test, influence test etc.The stored testing data can be transferred to multi-format for other program use.
The whole system is accredited to conforms to EU health and safety standards with CE certificates

Product Parameters

Application Conditions and Requirements
Environment			Power Requirement	Safety
Operation	Humidity	Altitude	Voltage Supply	IP Class	Conformity
Temperature
-10ºC--+40ºC	0.5	<2500m	3x220/380V±10%(or customized)	IP30	CE conform
			50/60Hz±2Hz

Type	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Reference Standard Meter	SZ-03A-K8
Scanning Head	YCG-2-series
Voltage
Test voltage output(Phase-Neutral)	3x(24V-300V)(or customized)
Power of the voltage output	Max.3x100VA	Max.3x250VA	Max.3x500VA	Max.3x1000VA
Resolution	Better than 0.01%of full scale value of range
Setting accuracy	Better than 0.05%at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Current
Test current output	3x(1mA-120A/200A)
Power of the current output	Max.3x250VA	Max.3x500VA	Max.3x1000VA	Max.3x2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Phase angle
Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Our Advantages

We have been engaged in the Electric Energy Meter measurement field for over twenty years as an all-time technological leader and creator of new technology in the Electric Energy Meter calibrator field. We have an excellent R&D team that has devoted to the technical development of Electric Energy Meter test instruments for a long time, we can satisfy different requirements of all kinds of customers.
All of our staff have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management and we have passed the authentication of ISO9001-2000 in 2002 and all staff has taken TQM training. Yangcheng has now realized ISO9001 control of R&D production, marketing & sales, and service completely to guarantee product quality.
We have a consummate marketing network and we offer a competitive price.
Our well-trained service team is able to provide maintenance, training, scheme design, and software update services to each customer for the first time.

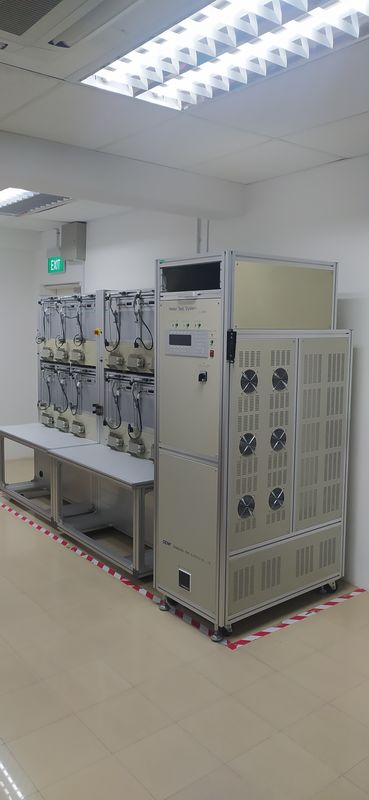

Three Wire Electric Meter Test Bench YC1893D-12 Electrical Meter Calibration 0
