6/12/24/48 MTUs Electric Meter Test Bench Three Phase Energy Meter Test Bench

6/12/24/48 MTUs Electric Meter Test Bench Three Phase Energy Meter Test Bench

Brand Name:	GENY
Model Number:	YC1893D-ICT
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	5 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Accuracy:

0.05

Standard Meter:

SZ03A-K6 / SZ03A-K8 (customized)

Test Voltage Output:

3x(24V~288V)(or Customized)

Stability Accuracy:

Better Than 0.05% At The Final Range Value

Power Source:

YCS-103-250 YCS-103-600 YCS-103-1200 YCS-103-2500

Number Of Meter Positions Equipped ICT:

6、12、24、48

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

48 MTUs Electric Meter Test Bench

24 MTUs Electric Meter Test Bench

Three Phase Energy Meter Test Bench

Product Description

Three Phase I-P Close Link Meter Testing Equipment for calibration 6/12/24/48 MTUs

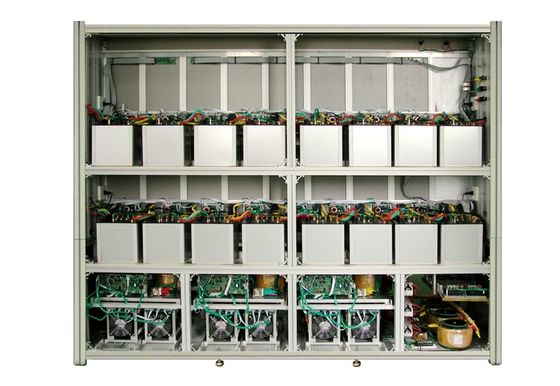

Professional Stationary Meter Test System for 6/12/24/48 MTUs with Isolated Current Transformer

Specifications:

Accuracy class : 0.05
Easy to calibrate I-P closed links meters with isolated current transformer(ICT)

Technical spec.	YC1893D-ICT-6	YC1893D-ICT-12	YC1893D-ICT-24	YC1893D-ICT-48
Number of meter positions equipped ICT	6	12	24	48
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA	Max. 3x250VA	Max. 3x500VA	Max. 3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA	Max. 3x350VA	Max. 3x750VA	Max. 3x1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Stability
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

Description:

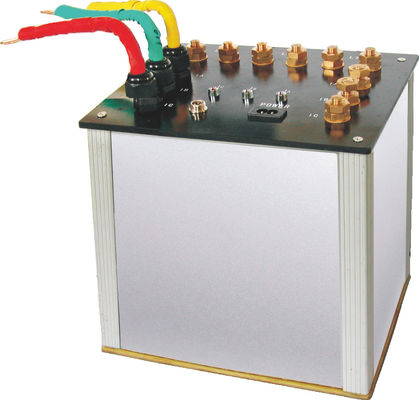

1. Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits(I-P links)

2. The meter test system can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation.

3. Meters under testing: 3P4W, 3P3W, 1P2W

4. Testing mode: active power, reactive power, cross connected reactive power

5. Simultaneously measure meters with same specifications but different meter constants

6. Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.

7. Starting test and creeping test

8. With the protection function of overload, short voltage circuit and open current circuit.

9. The swing together of the scanning heads simplifies the control.

10. Aluminum alloy material, light and strong and corrosion resistant

11. The testing software with friendly Windows 2000 /XP /7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc,.

Applications:

1. Nation-level utility companies

2. Governmental bureaus of metrology

3. Big energy meter manufacturers

Primary Competitive Advantages:

1. High quality product

2. Over 18 months long warranty

3. High accuracy class: 0.05

4. 3~48 Three Phase Electric Energy Meter Test bench

5. Extremely high power stability

6. Timing error test

7. Influence test of voltage, frequency, and harmonic

8. Installing RS232, Ethernet communication port in each meter position.

9. Tilt impact test (optional)

6/12/24/48 MTUs Electric Meter Test Bench Three Phase Energy Meter Test Bench 0
