Full Auto Single Phase Energy Meter Testing Accuracy 0.05% Meter Test Bench

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Accuracy:

±0.5%

Stability:

Better Than 0.01%

Current Output Range:

0~200A AC Current

Output Range:

0～480V-AC

Current Range:

0.001 - 200A

Meter Position:

3/6/12/48/60

Structure:

All-in-one

Harmonic Output Range:

2-41 Times

Communication Port:

485 Communication Port

Usage:

Energy Meter Calibration, Lab Research

Packaging Details:

Plywood cases

Supply Ability:

5 sets / 1 months

Highlight:

Product Description

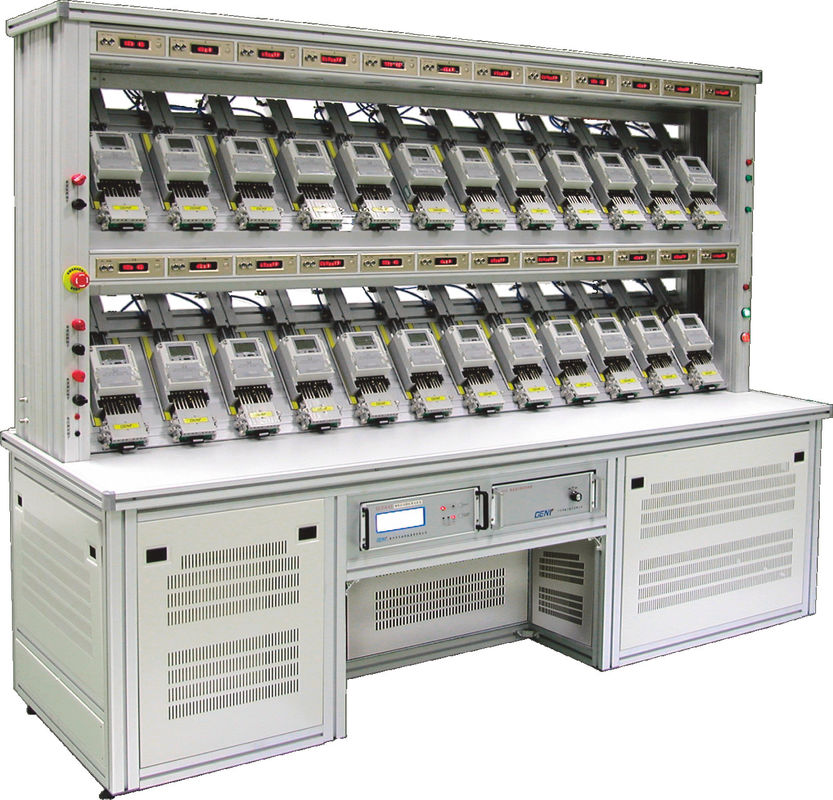

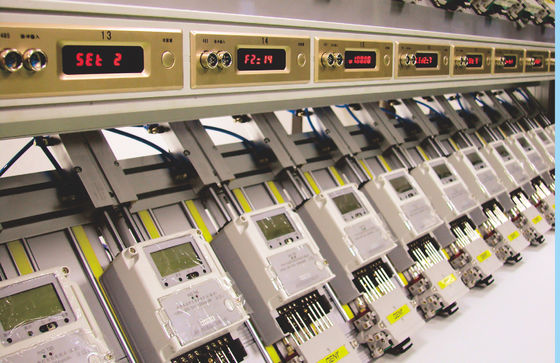

Full-Auto Operation Single Phase Electricity Meter Test Equipment with Accuracy 0.1%, 0.05, 0.02% Yc1891D

Meters under testing: 1P2W, 1P3W
Testing mode active power, reactive power With MSVT, can test single phase meters with closed links between the current and voltage measuring circuits(I-P links) With current output switch, can calibrate 2-element meters (optional)
Installing Rs232 Ethernet communication ports in each meter position, to realize automatic calibration of electronic meters (optional)
The meter test systems can measure mechanical meters, electronic mechanical meters and electronic meters by the way of automatic, semi-automatic or manual operation
Aluminum alloy material, light and strong and corrosion resistant
Automatic positioning rotor mark of disc of mechanical meters, with more efficiency.
The swing together of the scanning heads simplifies the control
Starting test and creeping test
Measuring different constants of meters synchronously
With the protection function of overload, short voltage circuit and open current circuit
The testing software with friendly Window 10 and XP operation system, includes functional module of all kinds or modern energy meter needed, to reality error test, harmonic test, demand test, influence test etc.
The stored testing data can be transferred to multi-format for other program use
The whole system is accredited to conforms to EU health and safety standards with CE certificate

Application Conditions and Requirement
Environment			Power Requirement	Safety
Operation Temperature	Humidity	Altitude	Voltage Supply	IP Class	Conformity
-10°C--+40°C	35%--85%	< 2500m	3x220/380v±10%(or customized) 50/60Hz±2Hz	IP 30	CE conformity

Type	YC1891D-6	YC1891D-12	YC1891D-24	YC1891D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YC8-101-250	YCS-101-600	YCS-101-1200	YCS-101-2500
Standard Meter	SZ-01A-K3
MSTV	HJ200G-6	HJ200G-12	HJ200G-24	HJ200G- 48
Scanning Head	YCG-2-series
Voltage
Test voltage output (Phase-Neutral)	24V-300V(or customized)
Power of the voltage output	Max.100VA	Max.250VA	Max.500VA	Max.1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2^nd - 41^st free programmable
Current
Test current output	1mA-120A/200A
Power of the current output	Max.250VA Max.500VA Max.1000VA Max.2000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from O-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd - 41st free programmable
Phase angle
Phase angle	0°-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits
