3 Phase 4 Wire Stationary Reference Standard Accuracy 0.02% Test Meter Calibration

Name: 3 Phase 4 Wire Stationary Reference Standard Accuracy 0.02% Test Meter Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: SZ03A-K8
Availability: InStock

Brand Name:	GENY
Model Number:	SZ03A-K8
MOQ:	1
Price:	negotiate rates
Payment Terms:	T/T, L/C, D/P, T/T
Supply Ability:	10 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Power Supply:

AC 100-240V, 50/60Hz

Usage:

Reference Standard

Resolution:

0.001%

Frequency Range:

40Hz-70Hz

Display:

LCD

Type:

Stationary

Packaging Details:

Plywood cases

Supply Ability:

10 pcs/ 1 months

Highlight:

4 Wire Stationary Reference Standard

Accuracy 0.02% Test Meter Calibration

3 Phase Stationary Reference Standard

Product Description

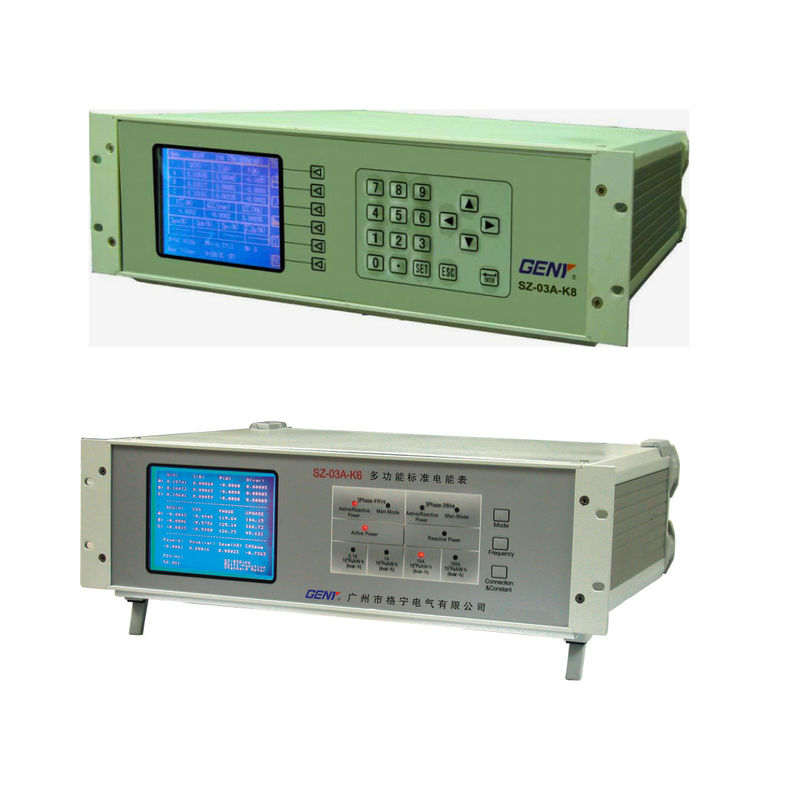

Sz03A-K8 High Accuracy 0.02% Three Phase Reference Standard Meter with Wide Range Measurment, Harmonic Analysis, Waveform Display, Energy Accumulating Function

Description:

This is a High Accuracy Three Phase Reference Standard Meter, which is suit for Three Phase Energy Meter Test Bench System.

Features & Functions

This is wide current range Three Phase Reference Standard Meter, suit for Stationary Three Phase Energy Meter Test System.
High accuracy up to 0.02%
Testing type:3 phase 4 wire,3 phase 3 wire
Testing mode:active power,reactive power, cross connection reactive power,apparent power
Measuring voltage,current,phase,frequency, power etc of each phase
Measuring phase angle of phase to phase, sum of active power,sum of reactive power etc
Test data can be managed by computer via Rs232 interface
Energy accumulation
High stability
User friendly interface
Easy operation
Large size LCD display screen
Long time warranty
The reference standard meter is accredited to conforms to EU health and safety standards with CE certificates

Technical Parameters

Application Conditions and Requirements
Environment		Power Requirement		Safety
Operation Temperature	Humidity	Altitude	Voltage Supply	IP Class	Conformity
-10°ºC--+40ºC	45%--75%	<2500m	220V±10%,50/60Hz±2Hz	IP30	CE conform

Type	SZ-03A-K8
Test voltage
Range	5V-480V
Error	±0.02%(5V-480V)
Display range	5.000000V-480.000V
Test current
Range	10mA-120A
Error	±0.02%(50mA-120A) ±0.05%(10mA-50mA)
Display range	1.000000A-120.0000A
Power measure error
Active power	±0.02%(50mA-120A)
Reactive power	±0.05%(50mA-120A)
Apparent power	±0.05%(50mA-120A)
Phase angle
Range	0°-360°
Error	±0.05°
Display range	0.000001°--359.9999°
Frequency
Range	45Hz-65Hz
Display range	45.000-65.000
Pulse output
High frequency output(CH)	1x109(0A-1A)
	1x108(1A-10A)
	1x107(10A-120A)
Low frequency output(CL)	2x10-5xCH
Pulse ratio	1:1
Output level	5V
Pulse input
Input level	24V
Input frequency	500Hz(Max)
Dimensions(WxHxD)(mm)	432x131x470
Weight(kg)	16
