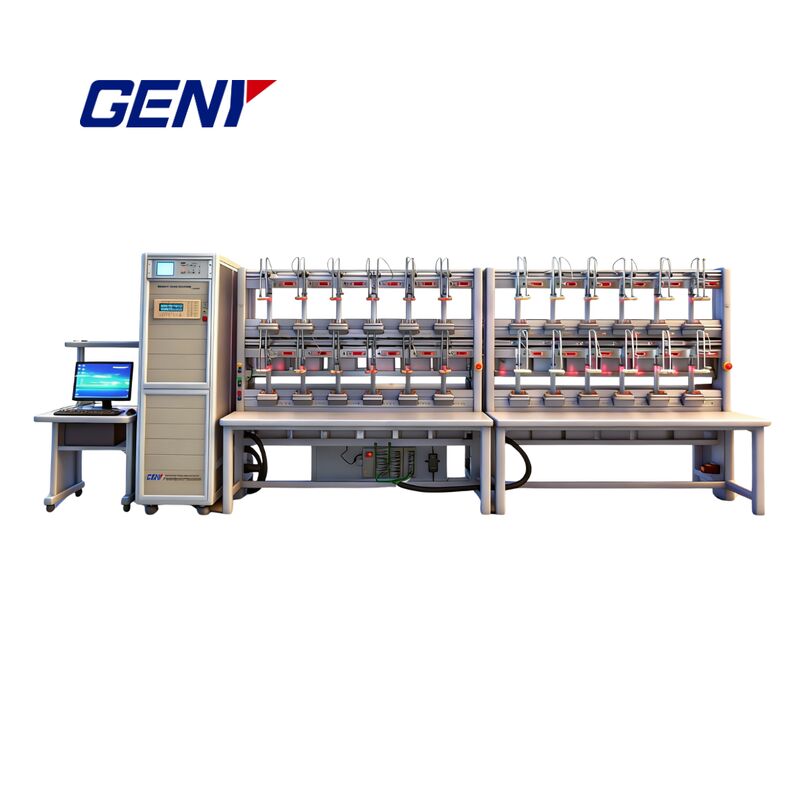

Three Phase Smart Meter Test Equipment Automatic Energy Meter Calibration by GENY

Name: Three Phase Smart Meter Test Equipment Automatic Energy Meter Calibration by GENY
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Power Supply Voltage:

3 × 220V±10%

Test Voltage Output (Phase-Neutral):

3 × (24V – 300V)

Power Of The Voltage Output:

3 × 1000VA

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005% /h (integration Time 150s)

Resolution:

Better Than 0.01% Of Full Scale Value Of Range

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

three phase smart meter tester

automatic energy meter calibration equipment

energy meter testing equipment with warranty

Product Description

Three Phase Smart Meter Test Equipment - Automatic Energy Meter Calibration by GENY

Product Overview

Guangzhou GENY Electric Co., Ltd's YC1893D Meter Test System incorporates advanced electronic measurement technology and modular design, combining differential reference standards with high-performance power amplifiers. This system is specifically engineered for:

Electric energy meter manufacturers
Electric power utilities
Metrology laboratories
Measurement and quality inspection departments
Factories or enterprises requiring precise energy meter testing

The YC1893D provides a fully automatic solution for testing and calibrating single-phase and three-phase meters, including mechanical, electronic-mechanical, and electronic meters.

System Components

Three-phase power source
Three-phase reference standard meter
Meter suspension test racks for 1-phase and 3-phase meters
Smart meter function test system (optional: fixed voltages, optical probe, relay control, ripple control box)
PC with advanced control software for full system management
Other essential components for complete setup

Standards Compliance

The YC1893D is fully IEC-compliant and suitable for testing meters according to:

IEC 60736
IEC 62052-11, IEC 62053-11, -21, -22, -23, -24
IEC 62056
EN 50470-1, EN 50470-2, EN 50470-3
IEC 61010

Key Features

Automatic, Semi-Automatic, and Manual Testing: Supports mechanical, electronic-mechanical, and electronic meters
Robust Construction: Aluminum alloy frame—lightweight, strong, and corrosion-resistant
Automatic Rotor Mark Positioning: Increases efficiency for mechanical meters
Synchronized Scanning Heads: Simplifies control and enhances accuracy
Fully Automated Test Functions:
- Accuracy test in all four quadrants (active, reactive, and apparent energy)
- Repeatability of error test
- Creeping test (no-load test)
- Starting current test
- Dial test (register test)
- Meter constant verification
- Influence quantity tests: voltage, voltage unbalance, frequency, harmonic distortion, reverse phase sequence
- Calibration of reference standard meters with lower accuracy
- Pre-warming
- Voltage dips and interruptions
- Testing single-phase meters under tampered conditions
- Sub-harmonics and odd harmonics as per IEC standards
Simultaneous Measurement: Different meter constants measured at the same time
Protection Features: Overload, short circuit, and open current circuit protection
