Three Phase Energy Meter Test Bench with Advanced Error and Harmonic Testing

Name: Three Phase Energy Meter Test Bench with Advanced Error and Harmonic Testing
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Power Supply Voltage:

3 × 220V±10%

Test Voltage Output (Phase-Neutral):

3 × (24V – 300V)

Power Of The Voltage Output:

3 × 1000VA

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005% /h (integration Time 150s)

Resolution:

Better Than 0.01% Of Full Scale Value Of Range

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

three phase energy meter test bench

energy meter harmonic testing equipment

three phase meter error tester

Product Description

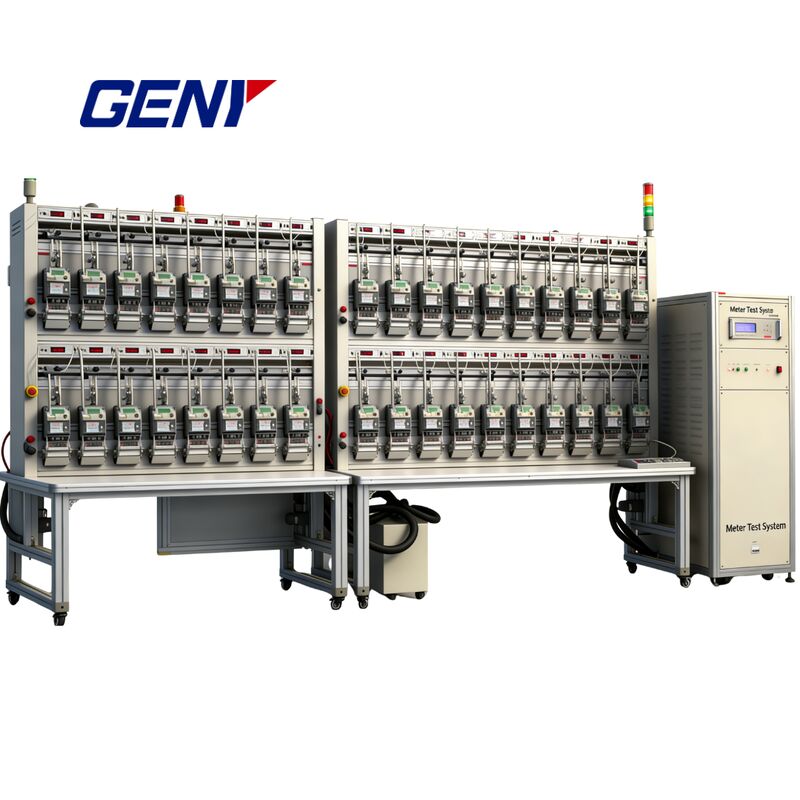

Three Phase Energy Meter Test Bench with Advanced Error and Harmonic Testing

This advanced three-phase energy meter test bench provides comprehensive testing capabilities for mechanical, electronic-mechanical, and electronic meters with sophisticated error measurement and harmonic analysis features.

Technical Specifications

Voltage Output

Test Voltage Output (Phase-Neutral)	3 × 40V-500V (customizable)
Power of Voltage Output	3 × 200VA
Resolution	Better than 0.001% of full scale
Stability	Better than 0.002% / h (integration time 150s)
Load Regulation (0-max load)	Better than 0.01%
Distortion Factor	Better than 0.05% for linear resistive load
Harmonics	2nd-21st, fully programmable

Current Output

Test Current Output	3 × 1mA-120A (max 230A)
Power of Current Output	3 × 300VA
Resolution	Better than 0.001% of full scale
Stability	Better than 0.002% / h (integration time 150s)
Load Regulation (0-max load)	Better than 0.01%
Distortion Factor	Better than 0.05% for linear resistive load
Harmonics	2nd-21st, fully programmable

Additional Parameters

Phase Angle Range	0-360°
Phase Angle Resolution	0.01°
Frequency Range	45Hz-65Hz
Frequency Resolution	0.001Hz
Error Display Type	Red LED
Error Display Resolution	8 digits

Operating Conditions

Voltage Supply	3 × 220/380V ±10% (customizable), 50/60Hz ±2Hz
Ambient Temperature	-10°C ~ +40°C
Relative Humidity	35% ~ 85%

Key Features

Supports mechanical, electronic-mechanical, and electronic meters through automatic, semi-automatic, or manual operation
Comprehensive testing modes: Active power, reactive power, and cross-connected reactive power
Compatible with 1P2W, 3P3W, and 3P4W meter configurations
Simultaneous measurement of meters with same specifications but different meter constants
Automatic positioning of rotor marks on mechanical meters for improved testing efficiency
Supports creeping test and starting test functionality
Built-in protection against short voltage circuits, overloads, and open current circuits
Aluminum alloy construction: lightweight, strong, and corrosion-resistant
Advanced Windows-based testing software (XP/7/8/10) with modules for error testing, harmonic analysis, demand testing, influence testing, and other modern energy meter functions
