High Precision Three Phase Energy Meter Test Equipment for Smart Meter Calibration

Name: High Precision Three Phase Energy Meter Test Equipment for Smart Meter Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Power Supply Voltage:

3 × 220V±10%

Test Voltage Output (Phase-Neutral):

3 × (24V – 300V)

Power Of The Voltage Output:

3 × 1000VA

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005% /h (integration Time 150s)

Resolution:

Better Than 0.01% Of Full Scale Value Of Range

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

three phase energy meter tester

smart meter calibration equipment

precision energy meter test equipment

Product Description

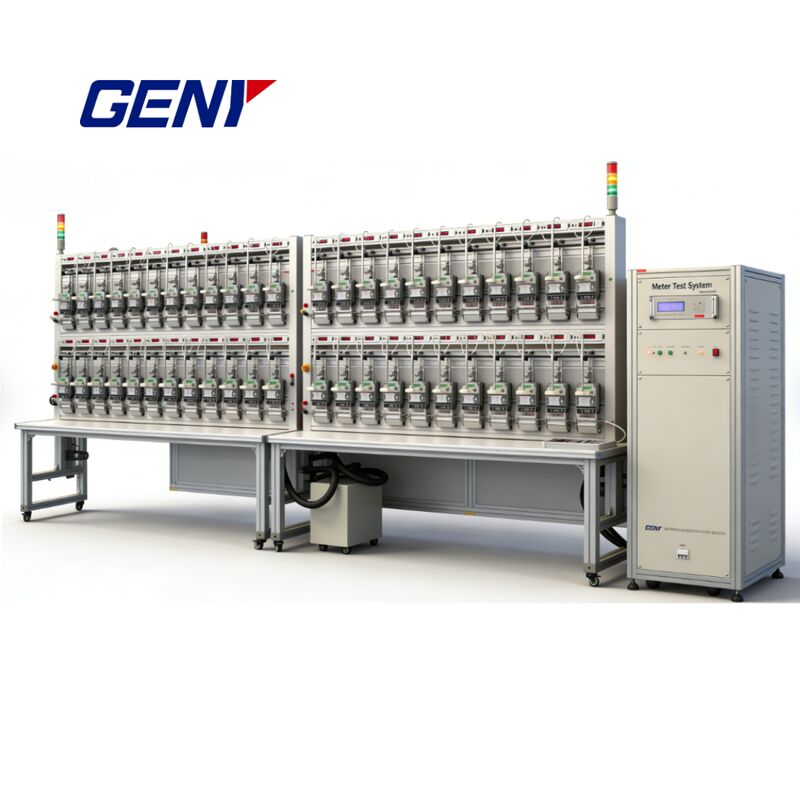

High Precision Three Phase Energy Meter Test Equipment for Smart Meter Calibration

The Three Phase Electric Energy Meter Test Bench by Guangzhou GENY Electric Co., Ltd is designed for high-precision testing and calibration of smart meters. This advanced system provides reliable solutions for utilities, metrology laboratories, and energy meter manufacturers worldwide.

Key Features and Functions

Supports parallel communication ports for smart meter testing via RS232 interface
Built-in calibration terminals on the rack for convenient test bench verification
Suitable for calibration and pulsing tests of 3-phase energy meters, including EDMI meters
High-precision reference standard meter accuracy testing
Pre-warming function to ensure stable and reliable testing conditions
Accuracy testing in compliance with IEC standards
Creeping test
Starting current test
Repeatability of error test
Dial test
Influence quantity testing related to accuracy, including:
- Voltage variation
- Frequency variation
- Reverse phase sequence
- Voltage unbalance
Harmonic influence testing in voltage and current circuits according to IEC standards
Sub-harmonics testing compliant with IEC 62052-11 / IEC 62053-21 / IEC 62053-22 / IEC 62053-23
Odd harmonics testing according to IEC requirements

Customized Functions for Smart Meter Testing

The energy meter calibration system from Guangzhou GENY Electric Co., Ltd can be customized to meet various testing requirements.

Supports individual calibration (separate voltage and current) and combined power calibration
Verification capacity: 24 + 24 positions
- Only 24 positions operate simultaneously
- Relay switching between the first and second 24 positions
- Relay switch can be controlled by software
Compatible with CT and WC meter ranges:
- 1(6)A
- 1(10)A
- 5(20)A
- 5(100)A
- 5(120)A
Supports gating method and pulse method for calibration and testing
Compatible with DLMS protocol for reading and writing to Mk10M meters
Supports EDMI Command Line for communication with Mk10E meters

Applications

The Three Phase Energy Meter Test Bench developed by Guangzhou GENY Electric Co., Ltd is widely used in:

National utility companies and power grid operators
Government metrology and calibration laboratories
Large energy meter manufacturers and testing centers

Primary Competitive Advantages

High-quality and reliable product from Guangzhou GENY Electric Co., Ltd
18+ months extended warranty
Ultra-high accuracy class: 0.05 / 0.02
Customizable three-phase energy meter testing solutions
Extremely high power stability
Optional neutral current testing
Timing error testing
Influence testing for:
- Voltage
- Frequency
- Harmonics
RS232 and Ethernet communication ports available for each meter position
Optional tilt impact testing
