0.02% Full Automatic Three-Phase Energy Meter Test System

Brand Name:	GENY
Model Number:	YC-1893D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Operating Temperature:

-10°C To +40°C

Voltage Output Power:

3 × 2000VA

Current Output Power:

3 × 2800VA

Frequency Range:

45Hz – 65Hz

Packaging Details:

plywood case

Supply Ability:

100/Year

Highlight:

full automatic three-phase energy meter

stationary meter test system

three-phase energy meter test

Product Description

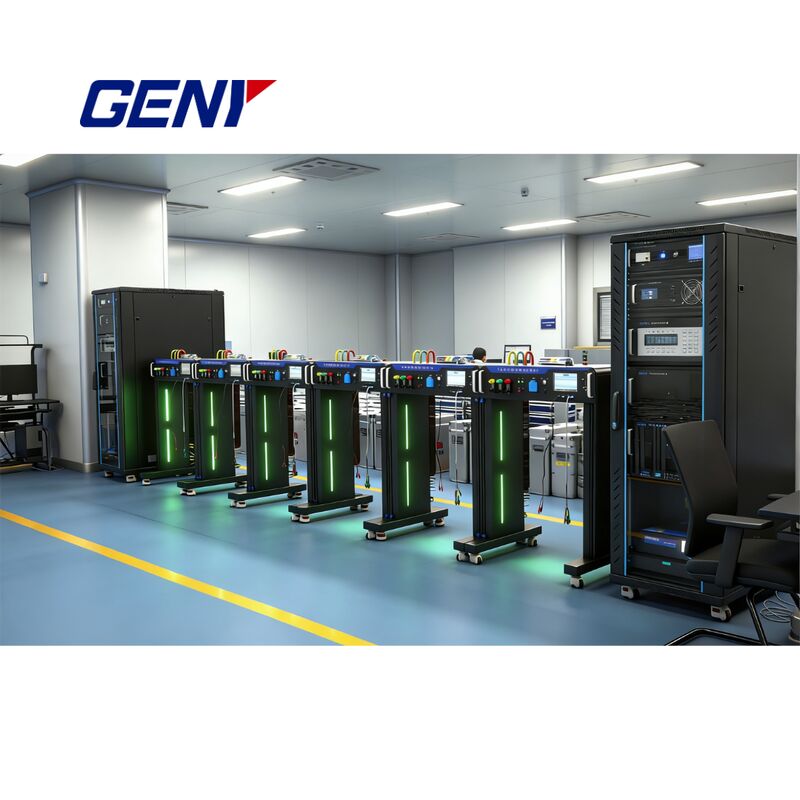

0.02% Full Automatic Three-Phase Energy Meter Test System

The YC1893D-24-0.02-FX Full Automatic Meter Test System (MTS) is a high-precision 0.02% accuracy three-phase energy meter test bench, designed for smart meter calibration, IEC compliance testing, and large-scale production verification. Equipped with automatic wiring and positioning mechanisms, this 24-position test system significantly improves testing efficiency, repeatability, and operational safety—making it ideal for energy meter manufacturers, utilities, and metrology laboratories.

System Architecture

The Meter Test System consists of:

High-stability three-phase static power source
High-accuracy three-phase reference standard meter
Automatic suspension-type meter test rack
PC control system with professional test software
Intelligent automatic wiring & positioning system

The integrated design ensures fully automatic calibration and verification of three-phase energy meters, reducing manual intervention and increasing throughput.

Fully Compliant with International Standards

The YC1893D series is designed according to international testing standards:

IEC 62052-11
IEC 62053-11 / 21 / 22 / 23 / 24
IEC 62056
EN 50470-1 / 2 / 3
IEC 61010

Perfect solution for global export meter testing requirements.

Core Features & Testing Functions

Comprehensive Accuracy Testing

IEC-compliant accuracy testing
Reference standard meter verification
Repeatability error testing
Pre-warming function
No-load test
Starting current test
Dial (register) test
Maximum demand test
Clock frequency accuracy test

Advanced Influence & Harmonic Testing

Voltage influence test
Frequency influence test
Reverse phase sequence test
Voltage unbalance test
Harmonic influence test (2nd-21st programmable)
Sub-harmonics per IEC standards
Odd harmonics testing (optional)

Smart Meter & Communication Testing

Parallel communication port for RS232 smart meter testing
PC software development support for ESAM testing
Calibration terminals for test bench verification

Intelligent Automation Advantages

Automatic wiring function for each station
Automatic short-circuit function at all stations
Custom Quick Connection Device (QCD) for Landis+Gyr meters
Fully automatic meter positioning mechanism
24-position simultaneous testing

This design dramatically improves production efficiency and reduces labor cost.
