Three Phase Energy Meter Testing Equipment with 0.01% Accuracy

Name: Three Phase Energy Meter Testing Equipment with 0.01% Accuracy
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Three-phase meter test syst...em.pdf

Test Voltage Output:

24V – 288V Or Customized

Frequency Range:

45Hz – 65Hz

Voltage Supply:

220V±10% Or Customized 50/60Hz±2Hz

Test Current Output:

1mA – 100A Or Customized,Max.200A

Stability:

Better Than 0.005% /h (integration Time 150s)

Resolution:

Better Than 0.01% Of Full Scale Value Of Range

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

three phase energy meter tester

energy meter testing equipment with warranty

high accuracy energy meter tester

Product Description

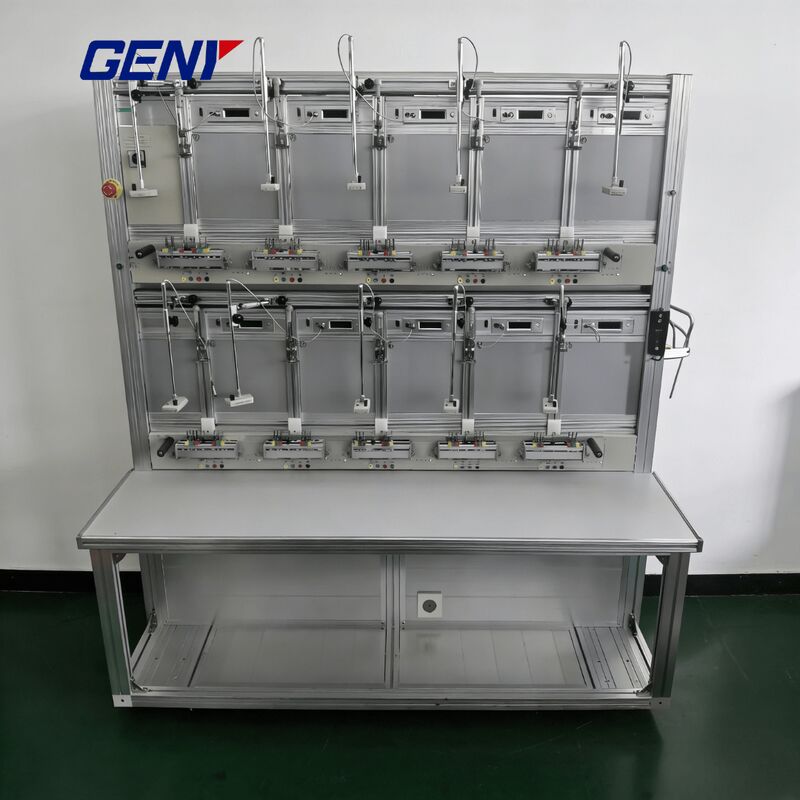

Three Phase Energy Meter Testing Equipment with 0.01% Accuracy

GENY Energy Meter Testing Equipment is a professional three phase energy meter test bench designed for high-precision testing and calibration of mechanical, electromechanical, and electronic energy meters. The system supports automatic, semi-automatic, and manual operation, providing maximum flexibility for laboratories, utility companies, and energy meter manufacturers. With ultra-high accuracy, excellent power stability, and modular configuration, this equipment fully complies with international metrology standards and is ideal for long-term industrial use.

Key Specifications

Meter Types Supported	Mechanical energy meters, Electromechanical energy meters, Electronic energy meters
Meter Wiring Modes	3 Phase 4 Wire (3P4W), 3 Phase 3 Wire (3P3W), Single Phase 2 Wire (1P2W)
Testing Modes	Active energy test, Reactive energy test, Cross-connected reactive energy test
Accuracy Class	0.05 / 0.02, Highest accuracy up to 0.01% (under 3 meter positions)
Meter Positions	Configurable from 3 to 48 three-phase meter positions

Main Features

Simultaneous testing of meters with same specifications but different meter constants
Automatic disc rotor mark positioning for mechanical meters, significantly improving efficiency
Starting test and creeping test
Neutral current test (optional)
Optional ICT installed at each meter position to test three-phase meters with closed I-P links
High-level safety protection system: Overload protection, Voltage short-circuit protection, Current open-circuit protection
Synchronized scanning head movement for easy and stable control
Lightweight aluminum alloy frame: High strength, Corrosion resistant, Long service life

Advanced Testing Software

The system is equipped with professional energy meter testing software, fully compatible with Windows 2000 / XP / 7 / 8 / 10.

Software Functions Include:

Accuracy (error) test
Harmonic test
Demand test
Timing error test
Voltage, frequency, and harmonic influence test
Data storage, analysis, and report generation

User-friendly interface ensures easy operation and fast learning.
