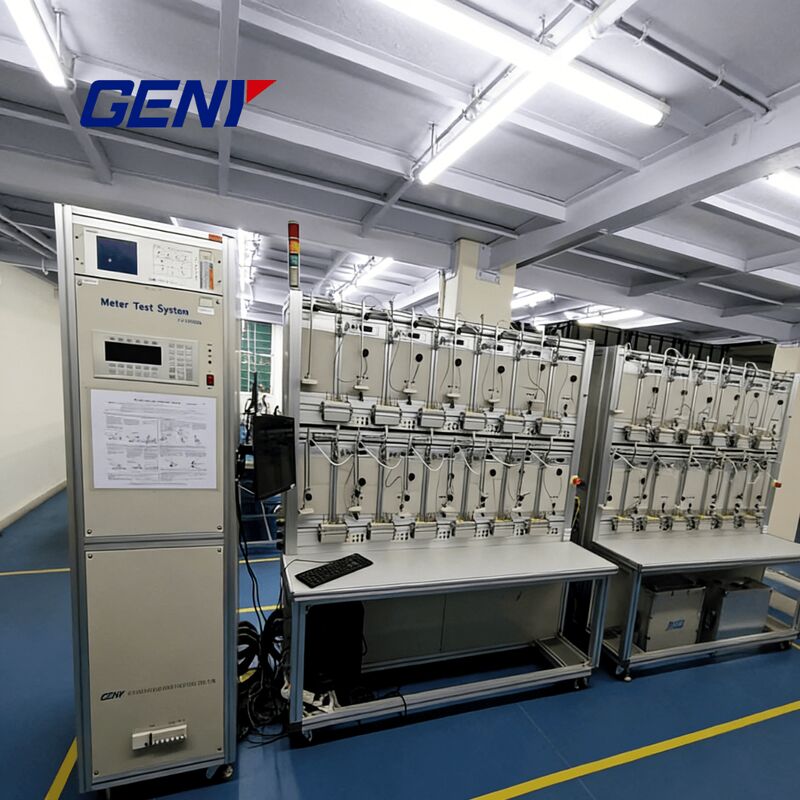

GENY 0.01 Class Reference Electricity Meter Test System

name

GENY 0.01 Class Reference Electricity Meter Test System

Brand Name: GENY
Model Number: YC1893D
MOQ: 1
Price: negotiate rates
Payment Terms: T/T,L/C,D/P,T/T
Supply Ability: 30 Pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Document:
Catalogue——Meter Test S...m..pdf
Accuracy:
0.01
Stability:
Better Than 0.005%/h (integration Time 150 S)
Setting Accuracy:
Better Than 0.05% At The Final Range Value
Resolution:
Better Than 0.01% Of Full Scale Value Of Range
Power Of The Voltage Output:
Max.3*2000VA
Power Of The Current Output:
Max.3*2800VA
Packaging Details:
Plywood cases
Supply Ability:
30 Pcs per month
Highlight:

GENY 0.01 Class electricity meter

,

reference meter test system

,

stationary electricity meter tester

Product Description
GENY 0.01 Class Reference Electricity Meter Test System
GENY's meter test systems utilize advanced electronic measurement technology and modular design principles. These systems integrate multiple reference standards and power amplifiers to deliver precise calibration and verification of electric energy meters. Ideal for electricity meter manufacturing, power utilities, metrology laboratories, and quality inspection departments, the system specifications can be customized to meet specific laboratory and application requirements.
Key Features
  • 0.01 accuracy class for high-precision calibration and testing
  • Automatic, semi-automatic, and manual testing of mechanical, electromechanical, and electronic meters
  • Fully automated four-quadrant testing (active, reactive, and apparent energy)
  • Automatic disc mark detection for mechanical meters to enhance test efficiency
  • Synchronized scanning heads for reliable pulse acquisition
  • Comprehensive IEC test support including accuracy, creep, starting current, and influence quantities
  • Simultaneous testing of meters with different meter constants
  • Robust, lightweight aluminium alloy construction
  • Integrated protection against overload, short circuit, and open current circuits
Technical Specifications
Voltage Specifications
Test voltage output (Phase-Neutral) 3x(24 - 300 V)
Power of the voltage output 3×1500VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load < 0.01%
Distortion factor < 0.3% for linear resistance load
Harmonics 2nd - 41st free programmable
Current Specifications
Test current output 1 mA - 120 A
Power of the current output 3×2000VA
Resolution Better than 0.01% of full scale value of range
Setting accuracy Better than 0.05% at the final range value
Stability Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load < 0.01%
Distortion factor < 0.3% for linear resistance load
Harmonics 2nd - 41st free programmable
Additional Specifications
Phase angle range 0 - 360°
Phase angle resolution 0.01°
Phase angle setting accuracy 0.1°
Frequency range 45 Hz - 65 Hz
Frequency resolution 0.01 Hz
GENY 0.01 Class Reference Electricity Meter Test System 0
