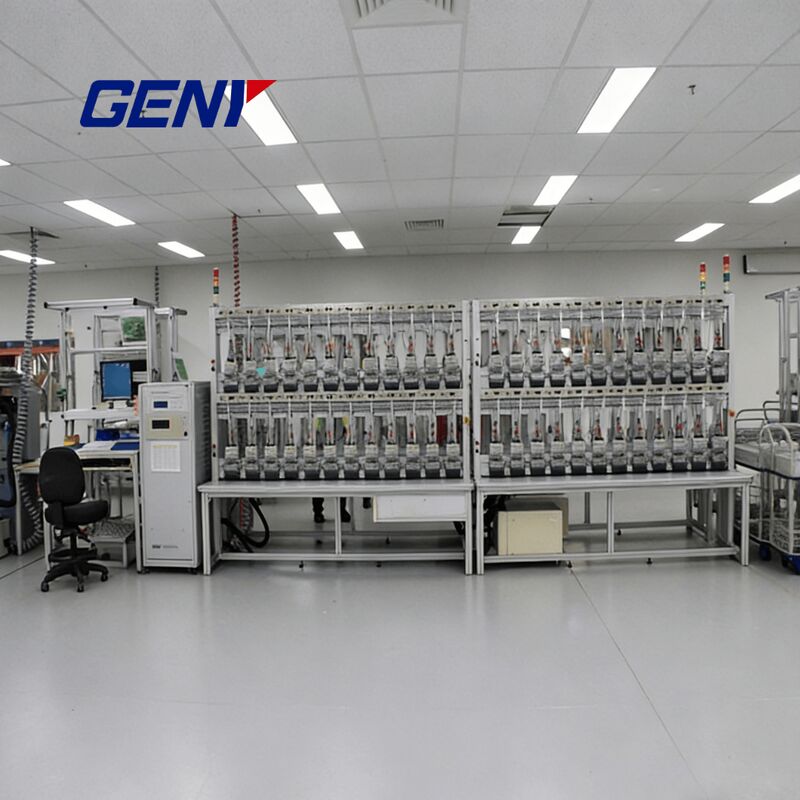

Single Phase Energy Meter Test System for Mechanical & Electronic Meter Calibration

Name: Single Phase Energy Meter Test System for Mechanical & Electronic Meter Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1891D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Voltage :

3×230/398V±10%

Frequency :

50/60Hz±2Hz

Power Capacity :

> 6kVA

Ambient Temperature:

-10°C -- +40°C

Relative Humidity:

35% -- 85%

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

single phase energy meter tester

mechanical meter calibration system

electronic meter test equipment

Product Description

Single Phase Energy Meter Test System

Comprehensive test equipment for mechanical and electronic meter calibration, designed for precision testing of single-phase energy meters.

Key Features & Advantages

Supported Meter Types

Suitable for 1P2W (Single-Phase Two-Wire) energy meters
Supports mechanical meters, electromechanical meters, and fully electronic energy meters
Compatible with single-phase meters with I-P links closed (current and voltage circuits linked)

Testing Modes

Active power testing
Reactive power testing
Cross-connected reactive power testing
Starting test and creeping (no-load) test

Calibration & Accuracy

Equipped with current output switch, enabling calibration of 2-element meters
Supports simultaneous testing of meters with identical specifications but different meter constants
Automatic rotor mark positioning for mechanical disc meters, improving test efficiency and repeatability
High-precision error measurement, harmonic testing, demand testing, and influence factor testing

Intelligent Operation

Supports automatic, semi-automatic, and manual test modes
Swing-together scanning heads simplify system control and improve operational stability
Integrated MSVT function for flexible meter testing configurations

Safety & Protection

Built-in protection against overload, short-circuited voltage circuits, and open current circuits
Ensures safe and reliable long-term operation

Mechanical Design

Constructed with high-strength aluminum alloy
Lightweight, corrosion-resistant, and durable
Suitable for laboratory and industrial environments

Software & Compatibility

User-friendly meter testing software based on Windows 2000 / XP / 7 / 8 / 10
Modular software architecture covering all modern energy meter test requirements
Supports accuracy (error) testing, harmonic analysis, demand measurement, and influence/environmental testing

Technical Specifications

Voltage Specifications

Test voltage output (Phase-Neutral)	24V - 300V
Power of the voltage output	1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable

Current Specifications

Test current output	1mA - 120A
Power of the current output	1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd - 21st free programmable
