Stationary Electric Meter Test Bench for OEM & Utility

Brand Name:	GENY
Model Number:	YC1893D/1D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Catalogue——Meter Test S...m..pdf

Power Supply:

AC220V±10%, 50Hz±2Hz

Output Voltage Power:

1000VA (Max)

Output Current Power:

2800VA (Max)

Frequency Adjustment Range:

45Hz -65Hz

Voltage Stability:

0.02%/120s

Current Resolution:

0.01%

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Highlight:

stationary electric meter test bench

OEM meter test bench

utility meter test bench

Product Description

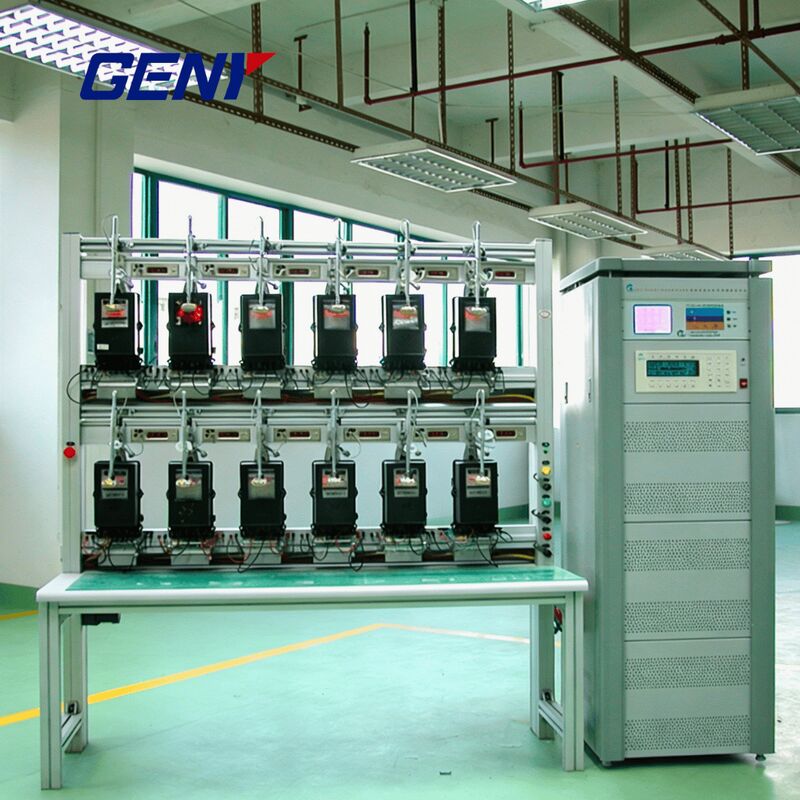

Stationary Electric Meter Test Bench for OEM & Utility

This Energy Meter Test Equipment is designed for high-accuracy testing and calibration of single-phase and three-phase energy meters. It is widely used by power utilities, metrology laboratories, and energy meter manufacturers.

Measurement & Accuracy Testing

Measurement of active power, reactive power, active energy, and reactive energy
Start-up test and creep test in compliance with IEC and international standards
Automatic calibration for fast creep and start-up testing
Measurement of basic error, average error, standard deviation, and 24-hour error variation
Voltage influence, frequency influence, phase sequence influence testing
Harmonic influence test from 2nd to 21st order
Simultaneous current measurement for multiple meters on the same test rack

Safety & Testing Efficiency

Current and voltage circuits of the tested energy meter can be tested without disconnection
Open-circuit current protection and short-circuit voltage protection
Optical head with automatic collection and flipping function, significantly improving test efficiency
Supports both electric operation and manual operation modes

Software & Data Management

Computer software automatically processes error data, stores test results, and outputs results online
Integrated data management system for analysis and traceability
Flexible report generation with multiple printable formats
Barcode input support, ideal for batch meter testing and production lines

Mechanical Structure & Configuration
