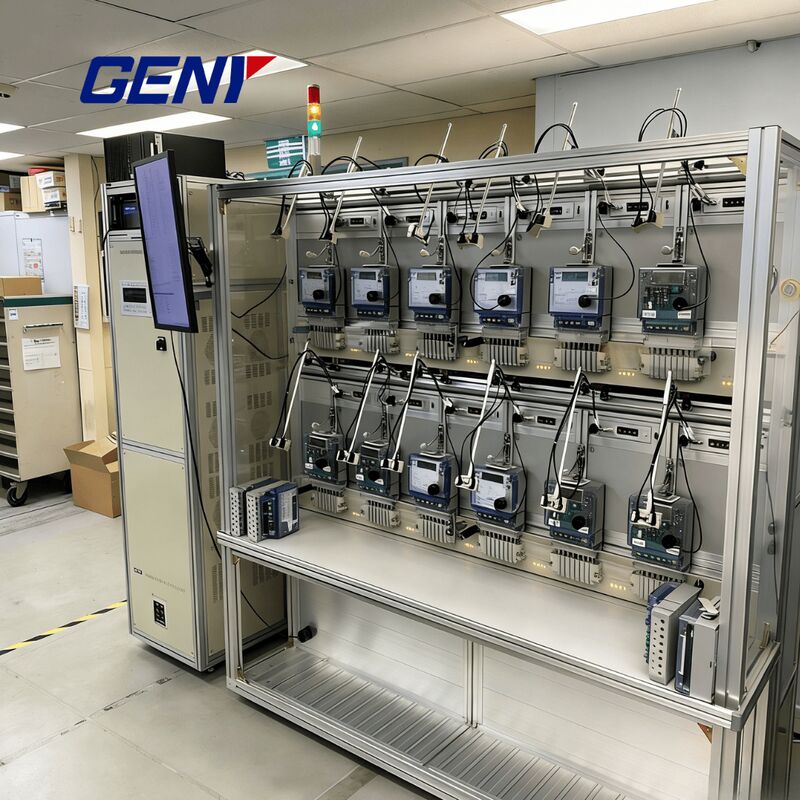

ICT-Based No-Disconnect Three-Phase Meter Test Equipment

Name: ICT-Based No-Disconnect Three-Phase Meter Test Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 Piece
Price:	negotiation
Payment Terms:	L/C,T/T
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Accuracy Class Of ICT:

0.05 / 0.01

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Ambient Temperature:

-10°C~+40°C

Relative Humidity:

35%~85%

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Highlight:

ICT-based energy meter tester

three-phase meter test equipment

no-disconnect meter testing device

Product Description

ICT-Based No-Disconnect Three-Phase Meter Test Equipment

For three-phase energy meters with inseparable current and voltage circuits, our system integrates a high-accuracy 1:1 electronic compensation ICT at each meter position, enabling true no-disconnect calibration without external isolation transformers. This solution supports testing under actual wiring conditions, delivers more realistic error characteristics, improves calibration efficiency, and fully meets ICT-related technical requirements for utilities, laboratories, and manufacturers.

Key Features

ICT installation in each meter position for testing three-phase meters with closed links between current and voltage measuring circuits (I-P links)
Capable of measuring mechanical and electronic meters through automatic, semi-automatic, or manual operation
Supports testing of 3P4W, 3P3W, and 1P2W meter configurations
Comprehensive testing modes including active power, reactive power, and cross-connected reactive power
Simultaneous measurement of meters with same specifications but different meter constants for accuracy
Automatic positioning rotor mark of mechanical meter disc for improved efficiency
Initiating test and creep test capabilities
Comprehensive safety features including overload, short-voltage, and open-current circuit protection
Synchronized movement of scanning heads for streamlined control process
Lightweight, durable aluminum alloy construction with corrosion resistance
Windows-compatible testing software (2000, XP, 7, 8, 10) with modules for real-time error, harmonic, demand, and influence testing

Technical Specifications

Technical Specification	YC1893D-ICT-6
Number of meter positions equipped ICT	6
Accuracy class of ICT	0.05 / 0.01
Accuracy	0.05
Power Source	YCS-103-250
Standard Meter	SZ03A-K6 / SZ03A-K8 (customized)
Scanning Head	YCG-S Series

Voltage Specifications

Test voltage output (Phase-Neutral)	3x(24V~288V)(or customized)
Power of the voltage output	Max. 3x100VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable

Current Specifications

Test current output	3x(1mA~100A)
Power of the current output	Max. 3x150VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable

Phase Angle & Frequency

Phase Angle Range	0~360%
Phase Angle Resolution	0.01%
Phase Angle Setting Accuracy	0.10%
Frequency Range	45Hz~65Hz
Frequency Resolution	0.01Hz

Error Display

Type of error display	Red LED
Resolution of error displays	8 digitals
