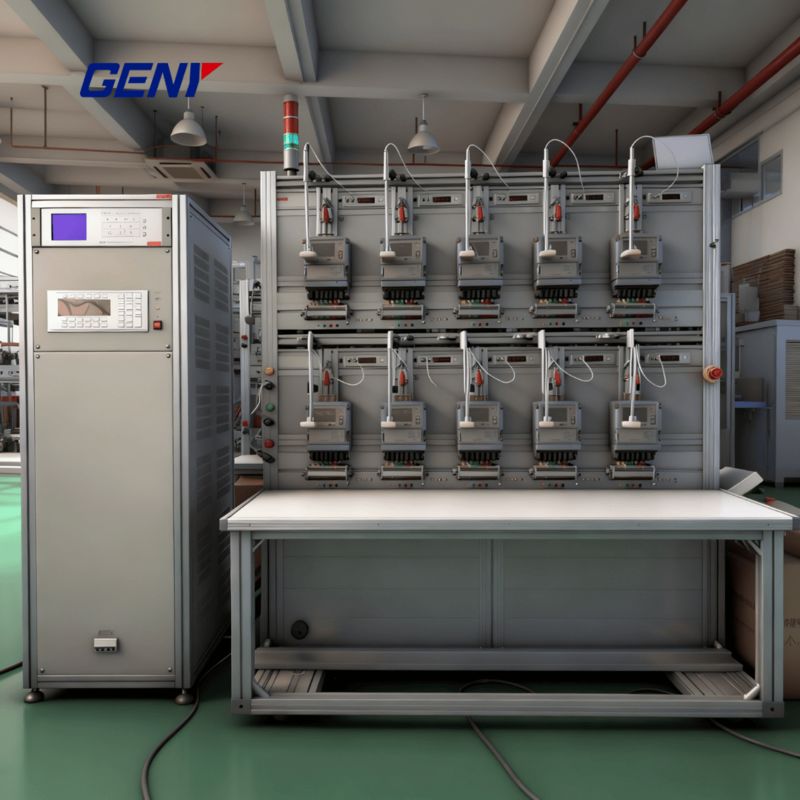

Advanced Three-Phase Energy Meter Test System for High-Accuracy Calibration

Name: Advanced Three-Phase Energy Meter Test System for High-Accuracy Calibration
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Operation Temperature:

-10ºC--+40ºC

Humanity:

35%-85%

Altitude:

＜2500m

Voltage Supply:

3x220/380V±10%(or Customized)

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

three-phase energy meter tester

high-accuracy energy meter calibration

energy meter test system

Product Description

Advanced Three-Phase Energy Meter Test System for High-Accuracy Calibration

Our advanced Three-Phase Energy Meter Test System provides a complete solution for high-accuracy calibration and verification of electrical energy meters. This robust Meter Test System is engineered to support a wide range of meters, including 3P4W (3-Phase 4-Wire) and 3P3W (3-Phase 3-Wire) configurations, making it an indispensable piece of Meter Calibration Equipment for utility companies, electrical testing laboratories, and energy meter manufacturers.

Core Meter Testing Capabilities

Performs all essential power measurements including Active Power, Reactive Power, and Cross-Connected Reactive Power analysis
Versatile testing for Mechanical Meters, Electro-Mechanical Meters, and modern Electronic Meters
Supports Automatic, Semi-Automatic, or Manual operation modes

Advanced Optional Features

Install Current Transformers (ICT) in each position for testing meters with closed I-P Links
Optional Neutral Current Test function for expanded diagnostic capabilities
Integrated RS-232 and Ethernet Communication Ports for fully Automatic Meter Calibration

Efficient and Safe Operation

Automatic rotor mark positioning for mechanical meters and synchronized scanning heads
Conducts critical performance tests including Meter Starting Test, Meter Creeping Test, and synchronized multi-constant measurement
Built-in protective safeguards against overload, short voltage circuits, and open current circuits

Powerful Meter Testing Software

Controlled by sophisticated Meter Test Software compatible with Windows 10 and XP
Includes modules for Meter Error Test, Harmonic Analysis Test, Demand Test, and Influence Quantity testing
Test data can be stored and exported in multiple formats for reporting and analysis

Durable Design and Compliance

Housed in a lightweight and robust aluminum alloy frame for industrial environments
CE Certified, meeting all stringent EU health and safety standards

Product Parameters

Type	YC1893D-6	YC1893D-12	YC1893D-24	YC1893D-48
Number of meter positions	6	12	24	48
Accuracy	0.05
Power Source	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Reference Standard Meter	SZ-03A-K8
Scanning Head	YCG-2-series
Voltage
Test voltage output(Phase-Neutral)	3x(24V-300V)(or customized)
Power of the voltage output	Max.3x100VA	Max.3x250VA	Max.3x500VA	Max.3x1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h(integration time 150 s)
Load regulation from 0-max.load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd-41st free programmable
Current
Test current output	3x(1mA-120A/200A)
Power of the current output	Max.3x250VA	Max.3x500VA	Max.3x1000VA	Max.3x2000VA
Phase angle
Range	0-360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz-65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of the error displays	8 digits

Our Customers

In China's domestic market for electric measurement products, we hold approximately 30% market share. Our long-standing clients include major state-owned utilities and power-supply bureaus.
Our products are used in over 30 countries, serving leading global customers such as Actaris, Landis+Gyr, EATON, Schlumberger, Secure Meters, EMCO, NAMJUN, and LEMZ.
