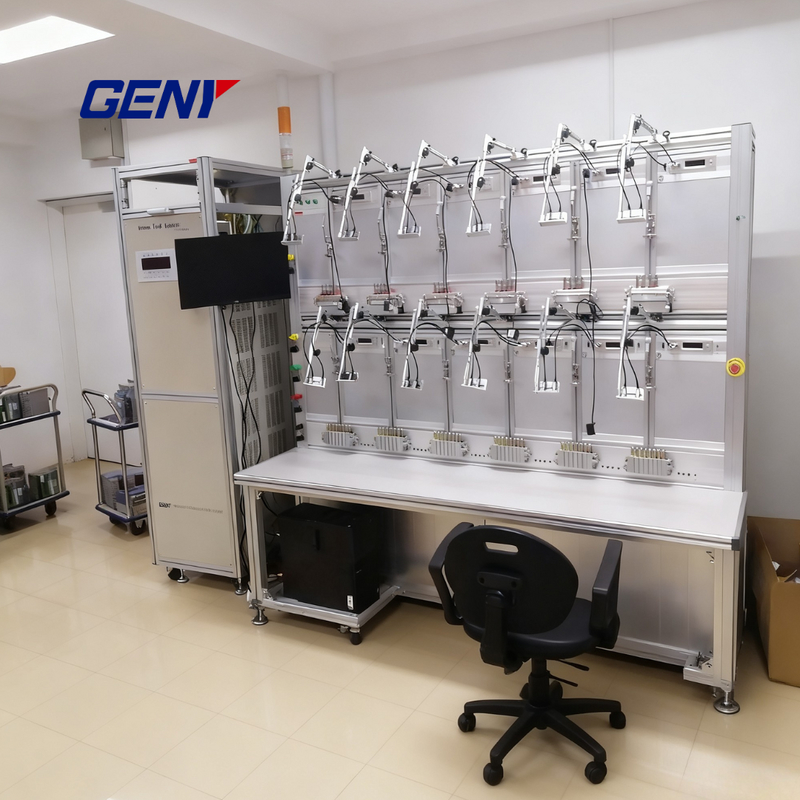

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

Name: YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D/YC1891D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D/YC1891D
MOQ:	1 pcs
Price:	Negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	100/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Test Voltage (Phase-Neutral):

3 × (24 V - 500 V) Or Customized

Test Current::

3 × (1 MA - 120 A)

Setting Accuracy:

Better Than 0.05% At The Final Range Value

Stability:

Better Than 0.005%/h(integrantion Time 150s）

Distortion Factor:

Better Than 0.3% For Linear Resistance Load

Packaging Details:

Plywood case

Supply Ability:

100/Year

Highlight:

Single-phase electric energy meter tester

Stationary meter test system accurate

YC-1891D-24 energy meter tester

Product Description

YC-1891D-24 Single-phase Electric Energy Meter Testing System Accurate

Smart Energy Meter Test System with Programmable Harmonics & High Accuracy

Guangzhou GENY Electric Co., Ltd Meter Test System is a high-precision solution designed for testing, calibration, and verification of single-phase and three-phase energy meters. Built with advanced control and measurement technology, it ensures exceptional accuracy, stability, and reliability under a wide range of environmental and electrical conditions. Perfect for laboratories, power utilities, and meter manufacturers.

Specifications

Power Source

Voltage Output

Test Voltage (Phase-Neutral): 3 × (24 V - 500 V) or customized
Output Power: 3 × 100 VA
Resolution: < 0.01% of full-scale range
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time 150 s)
Load Regulation (0-max): < 0.01%
Distortion Factor: < 0.3% (linear resistive load)
Harmonics: Programmable 2nd to 21st order

Current Output

Test Current: 3 × (1 mA - 120 A)
Output Power: 3 × 150 VA
Resolution: < 0.01% of full-scale range
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time 150 s)
Load Regulation (0-max): < 0.01%
Distortion Factor: < 0.3% (linear resistive load)
Harmonics: Programmable 2nd to 21st order

Phase Angle

Range: 0° - 360°
Resolution: 0.01°
Accuracy: ±0.1°

Frequency

Range: 45 Hz - 65 Hz
Resolution: 0.01 Hz

Key Features & Benefits

High-precision measurement with accuracy up to ±0.01%
Programmable harmonics for flexible testing (2nd-21st order)
Stable operation under wide temperature and humidity ranges
User-customizable voltage and current output ranges
Built-in surge protection and advanced grounding system
Ideal for energy meter calibration, power testing, and R&D applications
