Full Automatic Three Phase Meter Test Bench With ICT

Name: Full Automatic Three Phase Meter Test Bench With ICT
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Three-phase meter test syst...em.pdf

Accuracy Class:

Class 0.02/0.05

Frequency Range:

45Hz~65Hz

Relative Humidity:

35%~85%

Voltage Supply:

3x220/380V±10%(or Customized) 50/60Hz ±2Hz

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Product Description

Full Automatic Three Phase Meter Test Bench With ICT

GENY meter test systems leverage state-of-the-art electronic metrology and a modular architecture, integrating precision reference standards with high-stability power amplifiers to meet the exacting demands of energy-meter manufacturers, power utilities, metrology laboratories, inspection authorities, and industrial test facilities.

Description

Three-Phase Meter Test Bench
Test Ferraris (mechanical), electro-mechanical and fully electronic meters in automatic, semi-automatic or manual mode.

Parallel test run for meters with identical specification but different k-values.

Wiring configurations: 3P4W, 3P3W, 1P2W.

Automatic disc-mark alignment for Ferraris meters increases throughput.

Test quantities: active energy, reactive energy, cross-reactive energy.

Optional neutral-current test for tamper detection.

Starting and no-load (creep) tests included.

Optional ICT isolates current and voltage circuits on three-phase meters with internal I-P links.

Overload, short-circuit and open-circuit protection.

Corrosion-resistant aluminium alloy frame.

Synchronised scan heads fold together for quick change-over.

Windows-based test software (7/8/10) covers error, harmonic, maximum demand and influence tests; data export to CSV, PDF and XML.

Specifications

Technical spec.
Number of meter positions	24
Accuracy	0.05 / 0.02
Power Source	YCS-103-1200
Standard Meter	SZ03A-K6 / SZ03A-K8 / Radian RD-33
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3* (24V~288V)(or customized)
Power of the voltage output	Max. 3x500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3* (1mA - 100A)
Power of the current output	Max. 3x750VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

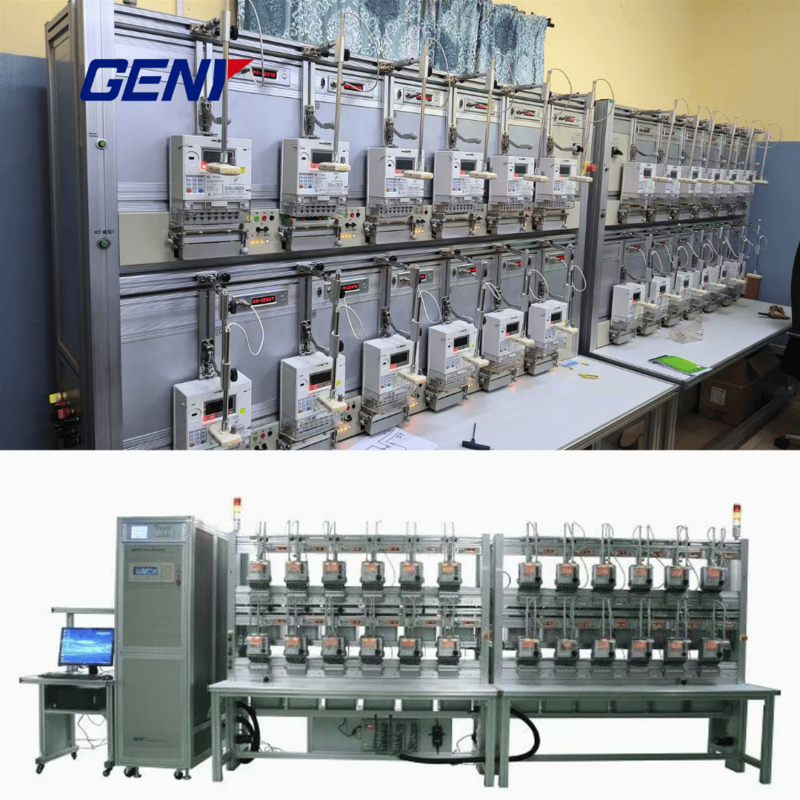

Full Automatic Three Phase Meter Test Bench With ICT 0
