YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment

Name: YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC1893D
Availability: InStock

Brand Name:	GENY
Model Number:	YC1893D
MOQ:	1 pcs
Price:	negotiation
Payment Terms:	L/C,T/T,D/P
Supply Ability:	30 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Accuracy Class:

Class 0.02/0.05

Test Voltage Output:

3* (24V~288V)(or Customized)

Test Current Output:

3* (1mA - 100A)

Frequency Range:

45Hz~65Hz

Packaging Details:

Plywood case

Supply Ability:

30 PCS per month

Product Description

YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment

GENY meter test systems leverage state-of-the-art electronic metrology and a modular architecture, integrating precision reference standards with high-stability power amplifiers to meet the exacting demands of energy-meter manufacturers, power utilities, metrology laboratories, inspection authorities, and industrial test facilities.

The YC1893D meter test system is a full-automatic test system for testing and calibration of both single-phase and three-phase electric energy meters, which composes of:

Three-phase Power source
Three-phase Reference standard meter
Meter suspension test rack
Tariffs control system (fixed voltages, optical port reader, ripple control box)
Other necessary parts
PC and software controlling the whole system

The YC1893D meter test system is fully compliant with the IEC 60736 standard and is suitable for testing meters according to the following standards:

IEC 62052-11 and IEC 62053-11, -21, -22, -23, -24
IEC 62056
EN 50470-1, EN 50470-2, EN-50470-3
IEC 61010

Parameters

Technical spec.
Number of meter positions	24
Accuracy	0.05 / 0.02
Power Source	YCS-103-1200
Standard Meter	SZ03A-K6 / SZ03A-K8 / Radian RD-33
Scanning Head	YCG-S Series
Voltage
Test voltage output(Phase-Neutral)	3* (24V~288V)(or customized)
Power of the voltage output	Max. 3x500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Current
Test current output	3* (1mA - 100A)
Power of the current output	Max. 3x750VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005% /h (integration time 150s)
Load regulation from 0~max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonic	2nd~21st free programmable
Phase angle
Range	0~360⁰
Resolution	0.01⁰
Setting accuracy	0.1⁰
Frequency
Range	45Hz~65Hz
Resolution	0.01Hz
Error display
Type of error display	Red LED
Resolution of error displays	8 digitals
Other
Voltage supply	3x220/380V±10%(or customized) 50/60Hz ±2Hz
Ambient temperature	-10°C~+40°C
Relative humidity	35%~85%

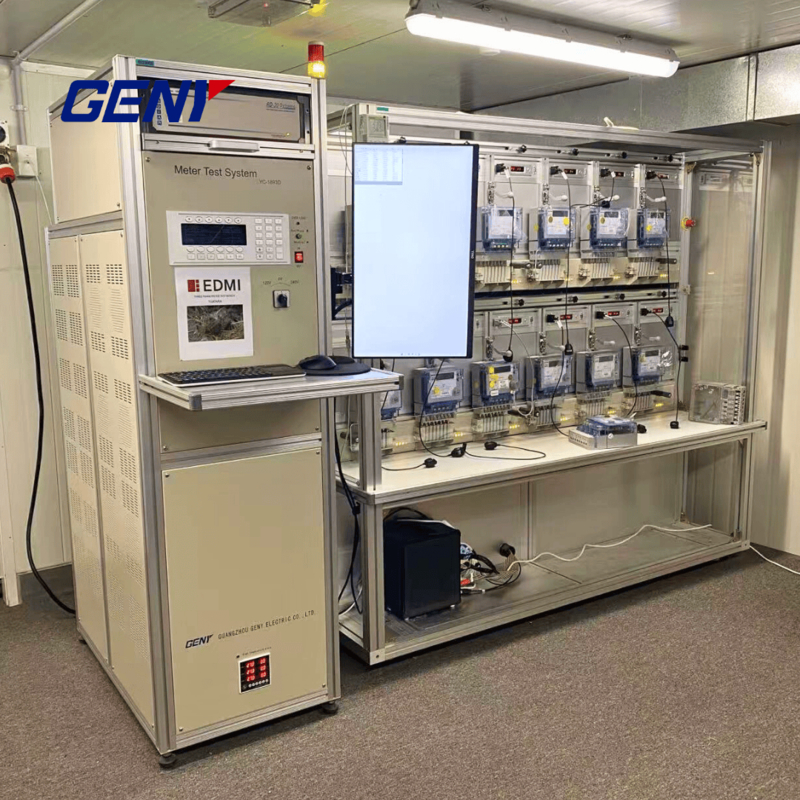

YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment 0

YC1893D IEC 60736 Automatic Three-Phase Energy Meter Test Equipment 1
