Portable Energy Meter Test Bench

Name: Portable Energy Meter Test Bench
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T
MOQ:	1 pcs
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	30 pcs/ 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Accuracy Class:

0.05%

Max Voltage:

456V (P-N)

Max Current:

120A

Test Current Output:

3*（1mA-120A)

Test Voltage Output:

3*（0V-450V）

Packaging Details:

Plywood cases

Supply Ability:

30 pcs/ 1 months

Product Description

Description

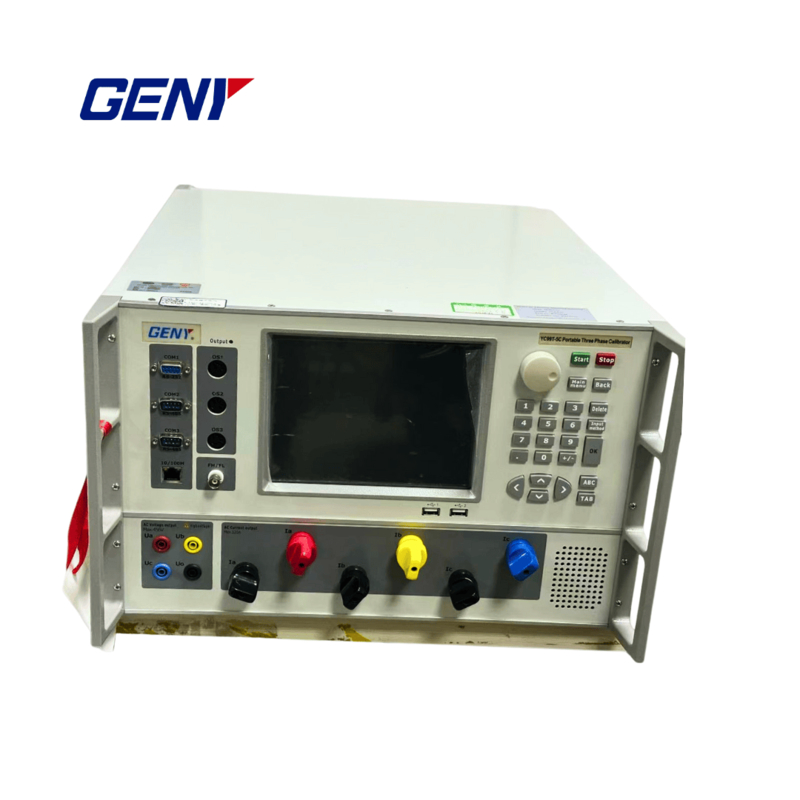

• YC99T Series Portable Three-Phase Meter Test System laboratory-grade accuracy in a rugged, field-ready package.

• YC99T-3C – IEC-protocol compliant for fully automated demand-error, tariff-switch, and time-of-use energy testing; built-in 0.05 ppm OCXO for daily clock-error verification.
• YC99T5C – identical software suite as the 3C with alternative voltage/current ranges to suit varied applications.
• Integrated harmonic source: programmable 2nd–21st order, stable output for harmonic influence tests.
• Ergonomic front-and-rear panels enable single-operator hook-up in under one minute.
• Lightweight, corrosion-resistant enclosure—precision lab performance wherever you need it.

1. The error of voltage, current, active power is ±0.05%, the error of reactive power is ±0.1%

2. The stability of voltage, current, active power is 0.01%RG/3min, The distortion percentage of alternative voltage and alternative current : ≤0.2%

3. The voltage range of YC99T-3C from 57.7V-660V, current range:1A-50A

4. Harmonic Output range: 2-63, harmonic output is under measuring and analyzing.

5. Test data can be managed by computer via RS232 interface

6. YC99T-3C not only can be operated by equipment but also can be controlled by PC

7. Calibrate energy meters automatically, which including items, such as, preheating, starting, creeping, error, influence, quantity test etc.

8. MUTs can be accessed through RS485, RS232, and Ethernet.

9. Diagnostic function of functional fault and internal module communication.

Specifications

Voltage
AC Voltage Range	57.7V-660V
Power of the voltage output	MAX.20VA
Resolution	0.01%
Accuracy	0.1%
Stability	0.01%/120s
Distortion factor	0.2%
Current
Test current output	1A-50A
Power of the current output	Max. 50VA
Resolution	0.01%
Accuracy	0.05%
Stability	0.01%/180s
Distortion factor	< 0.3% for linear resistance load
Phase angle
Range	0 -- 360°
Resolution	0.1°
Accuracy	0.2°
Frequency
Range	40Hz – 70Hz
Resolution	0.005Hz
Pulse output
Harmonic Output	2-63
Pulse input
Input channel	3
Input frequency	Max. 20Hz
Other
Voltage Supply	220V±15% /110V±15% (optional)
Ambient temperature	20°C -- 30°C
Relative humidity	≤85%
Dimensions (W×H×D) (mm)	500 X 440 X 180
Weight (kg)	26

Portable Energy Meter Test Bench 0

Portable Energy Meter Test Bench 1
