YC1893D IEC 60736 Fully-Automatic 4-Quadrant Multi-Position Three-Phase Meter Test System

Brand Name:	GENY
Model Number:	YC-1891G
MOQ:	1pcs
Price:	negotiate rates
Payment Terms:	T/T,L/C,D/P,T/T
Supply Ability:	20 sets / 1 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Structure:

All-in-one

Scanning Head:

Yes

With Three Phase Reference Standard:

Yes

Test Voltage Output (Phase-Neutral):

3 × (24V – 300V)

Packaging Details:

Plywood cases

Supply Ability:

20 sets / 1 months

Product Description

YC1893D IEC 60736 Fully-Automatic 4-Quadrant Multi-Position Three-Phase Meter Test System

Our meter test systems adopt the most advanced electronic measurement technique and modular concept.
It is a fully automatic system fully compatible with IEC 60736 that enables multiple-position testing of electric energy meters.
It can combine the various reference standards and power sources with meeting customers requirements in energy meter manufacturers and power utility companies, governmental institutes of metrology, metrological laboratories, and other customers interested in electricity-meter testing.

• The meter test systems are developed according to IEC standards for efficient testing of all meter types.
• Aluminum alloy material, light, strong and corrosion resistant.
• Fully automatic completion of the following tests:
– Accuracy test as per IEC standards in all four quadrants (active, reactive and apparent energy)
– Creeping test (No-load test) and Starting current test
– Dial test (Register test)
– Influence quantity test (voltage, frequency, harmonic distortion, etc.)
– Repeatability of error test
– Sub/Odd Harmonics as per IEC standards
– Tamper and Fraud Monitoring

• Fully automatic simultaneous multi-position testing of electric energy meters
• Harmonic output can up to the 41st
• Full range of safety features
• Wide range of voltages up to 480 V and currents up to 200 A
• With the protection function of overload, short voltage circuit and open current circuit
• The testing software with friendly Windows XP/7/8/10 or later operation system, it includes functional module of all types of energy meter needed.
• The stored testing data can be transferred to multi-format for other programs use.

Technical Data

1. Power Supply

Voltage	3 × 220V±10%
Frequency	50 / 60Hz ± 2Hz
Power capacity	>6k VA
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%

2. Power Source

Voltage output
Test voltage output (Phase-Neutral)	3 × (24V – 300V)
Power of the voltage output	3 × 1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Current output
Test current output	3 × (0.3mA – 20A)
Power of the current output	3 × 1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	Better than 0.01%
Distortion factor	Better than 0.3% for linear resistance load
Harmonics	2nd – 21st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

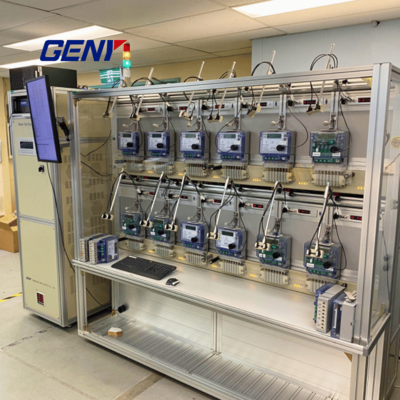

YC1893D IEC 60736 Fully-Automatic 4-Quadrant Multi-Position Three-Phase Meter Test System 0

YC1893D IEC 60736 Fully-Automatic 4-Quadrant Multi-Position Three-Phase Meter Test System 1
