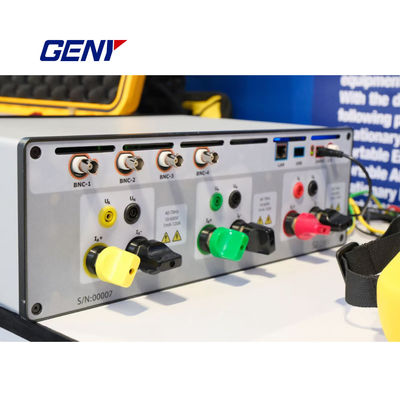

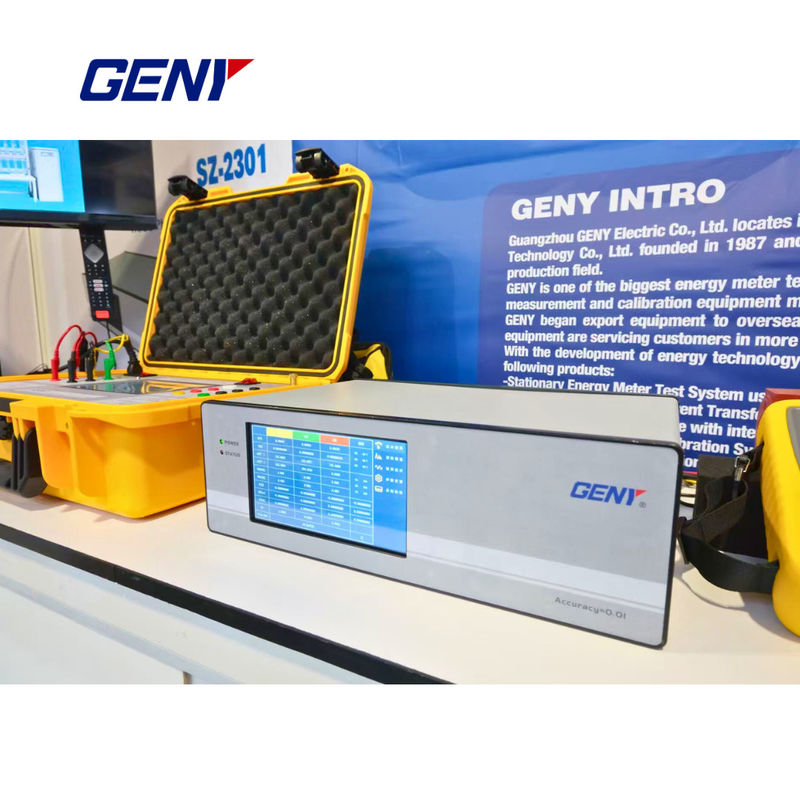

SZ-2301 Three-Phase Reference Standard Meter Accuracy Class For Industrial

Name

SZ-2301 Three-Phase Reference Standard Meter Accuracy Class For Industrial

Brand Name: GENY
Model Number: SZ-2301
MOQ: 1
Payment Terms: L/C,T/T,D/P
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO, CE
Document:
Technical Spec - SZ-2301.pd...df.pdf
Display:
Touchscreen LCD Display
Current:
1mA To 120A (expandable To 200A).
Voltage:
30V To 600V, With Automatic Range Adjustment.
Accuracy Class:
0.01%
Highlight:

Three Phase Reference Standard Meter

,

Reference Standard Meter SZ-2301

,

Accuracy Three Phase Reference Standard Meter

Product Description
SZ-2301 Three-Phase Reference Standard Meter Accuracy Class For Industrial
Attribute Value
Display Touchscreen LCD display
Current 1mA to 120A (expandable to 200A)
Voltage 30V to 600V, with automatic range adjustment
Accuracy Class 0.01%
Revolutionizing Precision in Energy Meter Calibration
Key Features
1. Unmatched Accuracy
  • Achieves a precision level of 0.01%, ideal for calibrating both single-phase and three-phase meters
  • Fully compliant with JJG 597-2005, GB/T 17215.701-2011, and IEC standards
2. Wide Measurement Range
  • Current: 1mA to 120A (expandable to 200A)
  • Voltage: 30V to 600V, with automatic range adjustment
3. Advanced Functionality
  • Supports harmonic analysis up to 64 harmonics
  • Measures active, reactive, and apparent power with high precision
  • Real-time waveform and vector diagram display for enhanced analysis
4. User-Friendly Design
  • Equipped with a touchscreen LCD display for intuitive operation
  • Modular design allows for easy maintenance and quick replacement of components
5. Flexible Connectivity
  • Interfaces include USB, Ethernet, and RS-232, ensuring seamless integration with automated testing systems
Applications
  • Laboratory testing and calibration of energy meters
  • Field testing for utility companies and meter manufacturers
  • Integration into automated meter testing systems for enhanced efficiency
Why Choose the SZ-2301?
  • Precision: Industry-leading accuracy for reliable calibration results
  • Versatility: Suitable for a wide range of energy metering applications
  • Innovation: Cutting-edge technology designed for modern calibration needs
Technical Specifications
  • Accuracy Class: 0.01%
  • Current Range: 1mA - 120A (expandable to 200A)
  • Voltage Range: 30V - 600V
  • Harmonic Analysis: Up to 64 harmonics
  • Connectivity: USB, Ethernet, RS-232
SZ-2301 Three-Phase Reference Standard Meter Accuracy Class For Industrial 0
About Guangzhou GENY Electric Co., Ltd.
With over 30 years of expertise, Guangzhou GENY Electric Co., Ltd. is a global leader in energy meter testing solutions. Our commitment to innovation and quality has made us a trusted partner for utilities, laboratories, and manufacturers worldwide.
