YC99T Multi-Function Portable Meter System Output 2~63 Harmonics

Name: YC99T Multi-Function Portable Meter System Output 2~63 Harmonics
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T
MOQ:	1 piece
Payment Terms:	L/C,T/T,D/P
Supply Ability:	10 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Document:

Portable three-phase calibr...9T.pdf

Display:

Color LCD

Accuracy:

0.05%

Usage:

Multi-Functional Energy Meter, Watt-Hour Meter, Meter For Industry And Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter

Test Voltage Output （Phase-Neutral）:

3*（0V-450V)

Test Current Output:

3*(1mA-120A)

Packaging Details:

Carton

Supply Ability:

10 pieces per month

Highlight:

Multi Function Portable Meter System

63 Harmonics Portable Meter System

Product Description

YC99T Multi-Function Portable Meter System Output 2~63 harmonics

Product Parameters

Conditions and requirement of use
Voltage
Test voltage output(Phase-Neutral)	Power of the voltage output	Resolution	Accuracy	Stability
3*(0V-450V)	Max.3*20A	0.01%	0.05%	0.02%/120s
Current
Test current output	Power of the current output	Resolution	Accuracy	Stability
3*(1mA-120A)	Max.3*100VA	0.01%	0.05%	0.02%/180s
Phase angle
Range	Resolution	Accuracy
0-360°	0.01°	0.2°

Environment			Power			Safety
Temperature	Relative humidity	Altitude	Voltage	Frequency range	Waveform distortion	IP Class	Conformity
-10ºC--+40ºC	35%--85%	<2500m	220V±10%50/60Hz±2Hz	45Hz-65Hz	<0.3%	IP51	CE conform

Frequency	Resolution	0.005Hz
Pulse output	High frequency output(HF)	Multiple constance
Pulse output	Low frequency output(LF)	LF=HF/20000
Pulse input	Input channel	3
Pulse input	Input frequency	Max.20Hz
Dimension (LxWxH)	Main	Auxiliary
Dimension (LxWxH)	445 mmx180 mmx680 mm	990 mmx630 mmx730 mm
46 kg	46 kg	100 kg

Main functions

. It can test various single and three phase electronic and mechanical meters;

. It can automatically or manually test 1ph or 3ph meters’: basic error, creeping test, starting test, standard deviation and etc., the testing plan can be fixed by customers;

. It can execute the influence test includes: voltage influence, frequency influence, harmonic influence, reverse phase sequence influence, unbalance voltage influence test;

. Support DLTN645 communication protocol, and can execute some tests for multiNfunctions energy meters;

. More output terminals for more operations: RS232, RS485, extend I/O, Ethernet, USB, wifi and etc.;

. Output 2~63 harmonics

. 8 inch touchscreen and friendly operation system;

. It can test 3 pcs meters max.

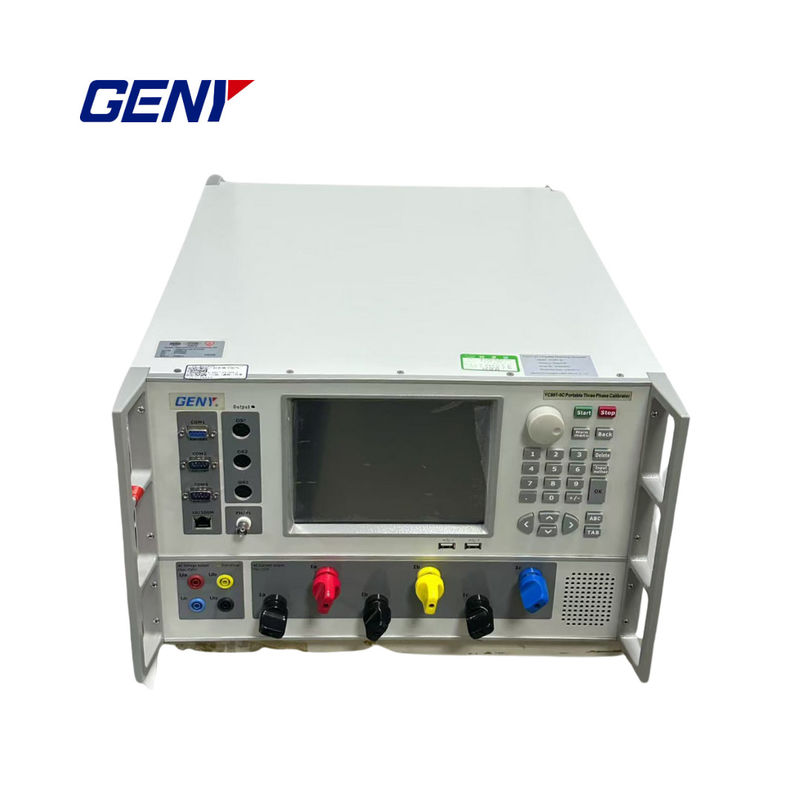

YC99T Multi-Function Portable Meter System Output 2~63 Harmonics 0

YC99T Multi-Function Portable Meter System Output 2~63 Harmonics 1

YC99T Multi-Function Portable Meter System Output 2~63 Harmonics 2
