0.05 /0.02 Class Portable Meter Test System -10ºC-- 40ºC Power Voltage

Name: 0.05 /0.02 Class Portable Meter Test System -10ºC-- 40ºC Power Voltage
Brand: Guangzhou GENY Electric Co., Ltd
SKU: YC99T
Availability: InStock

Brand Name:	GENY
Model Number:	YC99T
Payment Terms:	L/C,T/T,D/P
Supply Ability:	50/Year

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO, CE

Model NO.:

YC99T

Test Voltage Output(Phase-Neutral):

3*(0V-450V)

Test Current Output:

3*(1mA-120A)

Temperature:

-10ºC--+40ºC

Power Voltage:

220V±10%50/60Hz±2Hz

Supply Ability:

50/Year

Highlight:

0.05 Class Portable Meter Test System

0.02 Class Portable Meter Test System

Product Description

0.05 /0.02 Class Portable Meter Test System

Description

It is used in the measurement testing center of the grid companies, measurement department of power supply companies and power plants, national measurement testing institutions and metrology inspection departments, measurement testing departments of medium-sized enterprises, such as railway and petrochemical. Also, it can be used by the manufacturers of energy meters, includes its production, research and development, testing departments, as well as in universities and related research institutions, specialized laboratories

The meters that the user can calibrate include the following:

- single-phase active energy meter;

- three-phase three-wire active energy meter;

- three-phase three-wire composite meter;

- three-phase four-wire active energy meter;

- three-phase four-wire composite meter;

- three-phase three-wire sine reactive energy meter;

- three-phase four-wire sine reactive energy meter;

- two elements 60° reactive energy meter;

- two elements 90° reactive energy meter; and

- three elements 90° reactive energy meter.

Features & Functions

1.It works with the DLT-645(2007) communication protocol and can do demand indication error, demand period error, time switching error, rate period energy indication error and other multi-function test projects.

2.This is a special tool that can check how much electricity is used each day.

3.The panels, screen and wiring are all fantastic. They're all designed to be easy to use.

4.You can use it as harmonic power output equipment. This means it can create a stable harmonic output.

5.The testing mode is for two types of power: active power and reactive power.

6.The meters being tested are 3P4W, 3P3W and 1P2W.

7.The calibrator is made up of a power source and a calibration electronic instrument with a wide current and voltage output range.

8.You can start and stop the test, and the computer can manage the test data via the LAN interface.

9.YC99T can be used with equipment or a PC.

10.Automatically adjust energy meters, including items such as preheating, starting, creeping, error, influence, quantity testing, etc.

11.Key competitive advantages:

Easy operation
The power source produces a strong and stable output.
A test of different types of energy meters.

Product Parameters

Conditions and requirement of use
Voltage
Test voltage output(Phase-Neutral)	Power of the voltage output	Resolution	Accuracy	Stability
3*(0V-450V)	Max.3*20A	0.01%	0.05%	0.02%/120s
Current
Test current output	Power of the current output	Resolution	Accuracy	Stability
3*(1mA-120A)	Max.3*100VA	0.01%	0.05%	0.02%/180s
Phase angle
Range	Resolution	Accuracy
0-360°	0.01°	0.2°

Environment			Power			Safety
Temperature	Relative humidity	Altitude	Voltage	Frequency range	Waveform distortion	IP Class	Conformity
-10ºC--+40ºC	35%--85%	<2500m	220V±10%50/60Hz±2Hz	45Hz-65Hz	<0.3%	IP51	CE conform

Frequency	Resolution	0.005Hz
Pulse output	High frequency output(HF)	Multiple constance
Pulse output	Low frequency output(LF)	LF=HF/20000
Pulse input	Input channel	3
Pulse input	Input frequency	Max.20Hz
Dimension (LxWxH)	Main	Auxiliary
Dimension (LxWxH)	445 mmx180 mmx680 mm	990 mmx630 mmx730 mm
46 kg	46 kg	100 kg

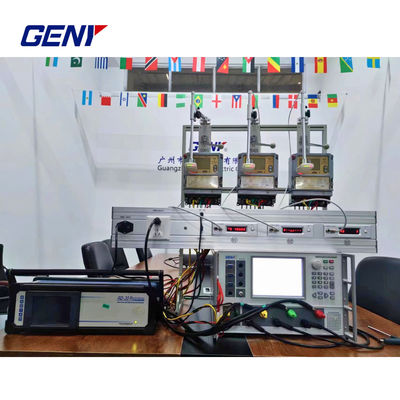

0.05 /0.02 Class Portable Meter Test System -10ºC-- 40ºC Power Voltage 0
