| Brand Name: | GENY |
| Model Number: | YC1893D |
| MOQ: | 1 Piece |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | 100/Year |

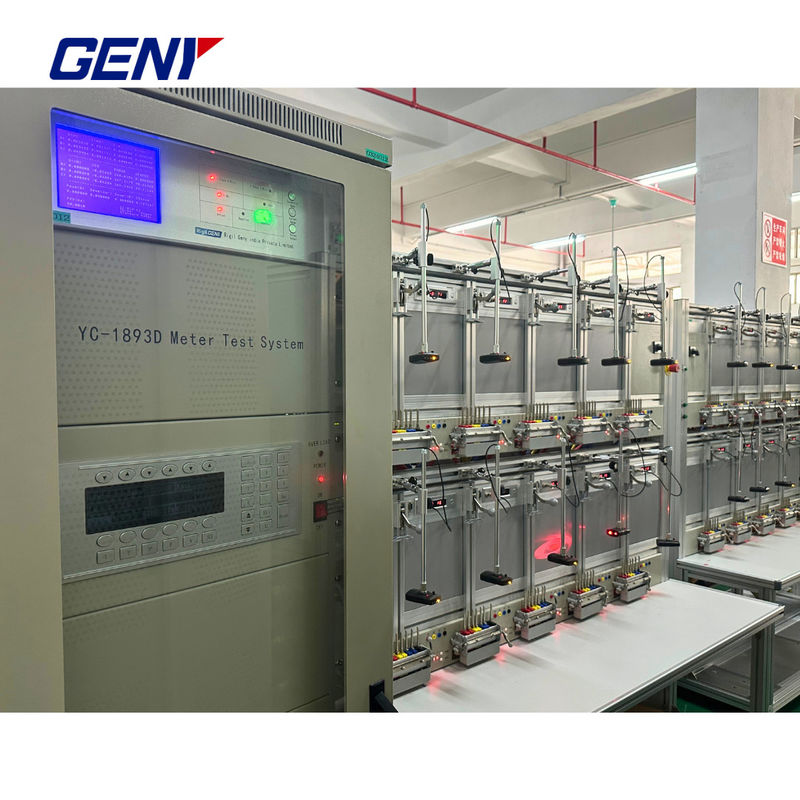

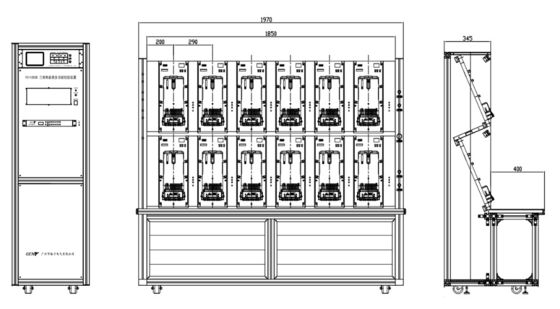

The Full Automatic Meter Test System is an accuracy of 0.02%, a 24-position three-phase test bench with automatic wiring and positioning mechanism (hereafter referred to as MTS), model no: YC1893D-24-0.02-FX. The system consists of three main parts: a three-phase static power source, an automatic meter bench, and a reference standard meter. The following is the structure diagram of the system.
GENY's meter test systems use the most advanced electronic measurement techniques and are built in a way that allows them to combine different reference standards and power amplifiers. This makes them useful for electric energy meter manufacturers, electric power utilities, metrology laboratories, measuring and quality examining departments, and factories or enterprises.
The MTS is a test system that is used to check and calibrate three-phase electric energy meters. It is fully automatic.
It has a three-phase static power source.
The meter is a three-phase reference standard meter.
A meter for testing automatic suspension.
Other necessary parts are needed.
The PC and its software are in charge of the whole system.
The YC1893D series meter test systems meets the IEC 60736 standard and can be used to test meters that meet the following standards:
1.IEC 62052-11 and IEC 62053-11, -21, -22, -23, -24
2.IEC 62056
3.EN 50470-1, EN 50470-2, EN-50470-3
4.IEC 61010
